Lightolier LP-1 1BHF

PG

, Performance, Fixture Lengths & Mounting Locations, 48” 121.92cm

Lighting Systems LP-1

1BHF

PG

-JOFBS
1FSG-ZUFÜ

DN
4PMJE
*OEJSFDU
-JHIU
5
1FS
'PPU
/PNJOBM
4FDUJPO

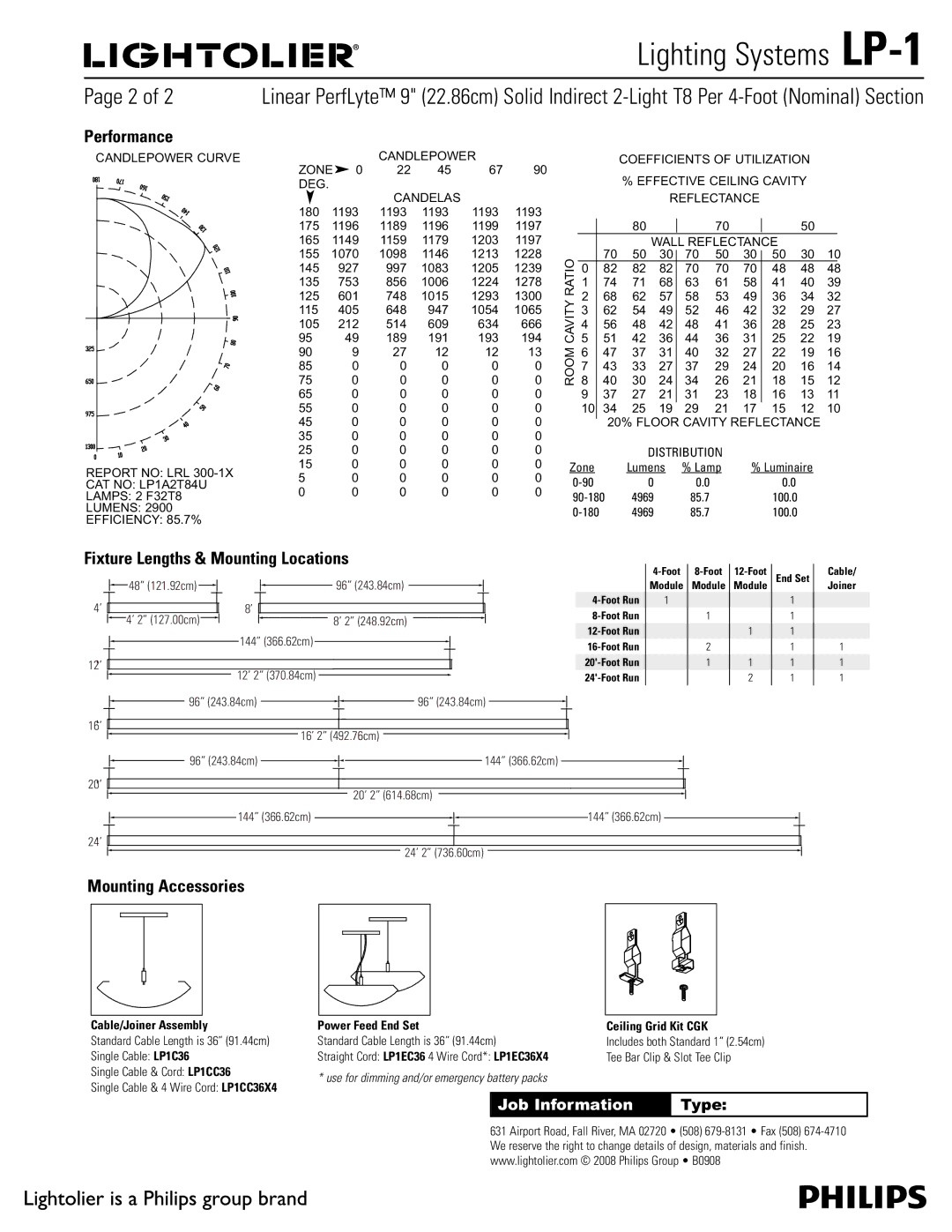

Performance

CANDLEPOWER CURVE	ZONE 0		CANDLEPOWER			90
			22	45	67
	DEG.		CANDELAS
	180	1193	1193	1193	1193	1193
	175	1196	1189	1196	1199	1197
	165	1149	1159	1179	1203	1197
	155	1070	1098	1146	1213	1228
	145	927	997	1083	1205	1239
	135	753	856	1006	1224	1278
	125	601	748	1015	1293	1300
	115	405	648	947	1054	1065
	105	212	514	609	634	666
	95	49	189	191	193	194
	90	9	27	12	12	13
	85	0	0	0	0	0
	75	0	0	0	0	0
	65	0	0	0	0	0
	55	0	0	0	0	0
	45	0	0	0	0	0
	35	0	0	0	0	0
	25	0	0	0	0	0
REPORT NO: LRL 300-1X	15	0	0	0	0	0
	5	0	0	0	0	0
CAT NO: LP1A2T84U
	0	0	0	0	0	0
LAMPS: 2 F32T8

LUMENS: 2900

EFFICIENCY: 85.7%

COEFFICIENTS OF UTILIZATION

%EFFECTIVE CEILING CAVITY REFLECTANCE

			80			70			50
				WALL REFLECTANCE
RATIO		70	50	30	70	50	30	50	30	10
	0	82	82	82	70	70	70	48	48	48
	1	74	71	68	63	61	58	41	40	39
CAVITY	2	68	62	57	58	53	49	36	34	32
	5	51	42	36	44	36	31	25	22	19
	3	62	54	49	52	46	42	32	29	27
ROOM	4	56	48	42	48	41	36	28	25	23
	8	40	30	24	34	26	21	18	15	12
	6	47	37	31	40	32	27	22	19	16
	7	43	33	27	37	29	24	20	16	14
	9	37	27	21	31	23	18	16	13	11
	10	34	25	19	29	21	17	15	12	10

	20% FLOOR CAVITY REFLECTANCE
	DISTRIBUTION
Zone	Lumens	% Lamp	% Luminaire
0-90	0	0.0	0.0
90-180	4969	85.7	100.0
0-180	4969	85.7	100.0

Fixture Lengths & Mounting Locations

		48” (121.92cm)		96” (243.84cm)
4’			8’
	4’ 2” (127.00cm)			8’ 2” (248.92cm)
			144” (366.62cm)

12’

12’ 2” (370.84cm)

96” (243.84cm) 96” (243.84cm)

16’

16’ 2” (492.76cm)

4-Foot Run

8-Foot Run

12-Foot Run

16-Foot Run

20'-Foot Run

24'-Foot Run

4-Foot

Module

1

8-Foot 12-Foot Module Module

1
	1
2
1	1
	2

End Set

1

1

1

1

1

1

Cable/ Joiner

1

1

1

96” (243.84cm) 144” (366.62cm)

20’

20’ 2” (614.68cm)

144” (366.62cm) 144” (366.62cm)

24’

24’ 2” (736.60cm)

Mounting Accessories

Cable/Joiner Assembly

Standard Cable Length is 36” (91.44cm) Single Cable: LP1C36

Single Cable & Cord: LP1CC36

Single Cable & 4 Wire Cord: LP1CC36X4

Power Feed End Set	Ceiling Grid Kit CGK
Standard Cable Length is 36” (91.44cm)	Includes both Standard 1” (2.54cm)
Straight Cord: LP1EC36 4 Wire Cord*: LP1EC36X4	Tee Bar Clip & Slot Tee Clip
* use for dimming and/or emergency battery packs

Job Information Type:


"JSQPSU
3PBE
'BMM
3JWFS
."

t


t
'BY

 We reserve the right to change details of design, materials and finish. XXXMJHIUPMJFSDPN
