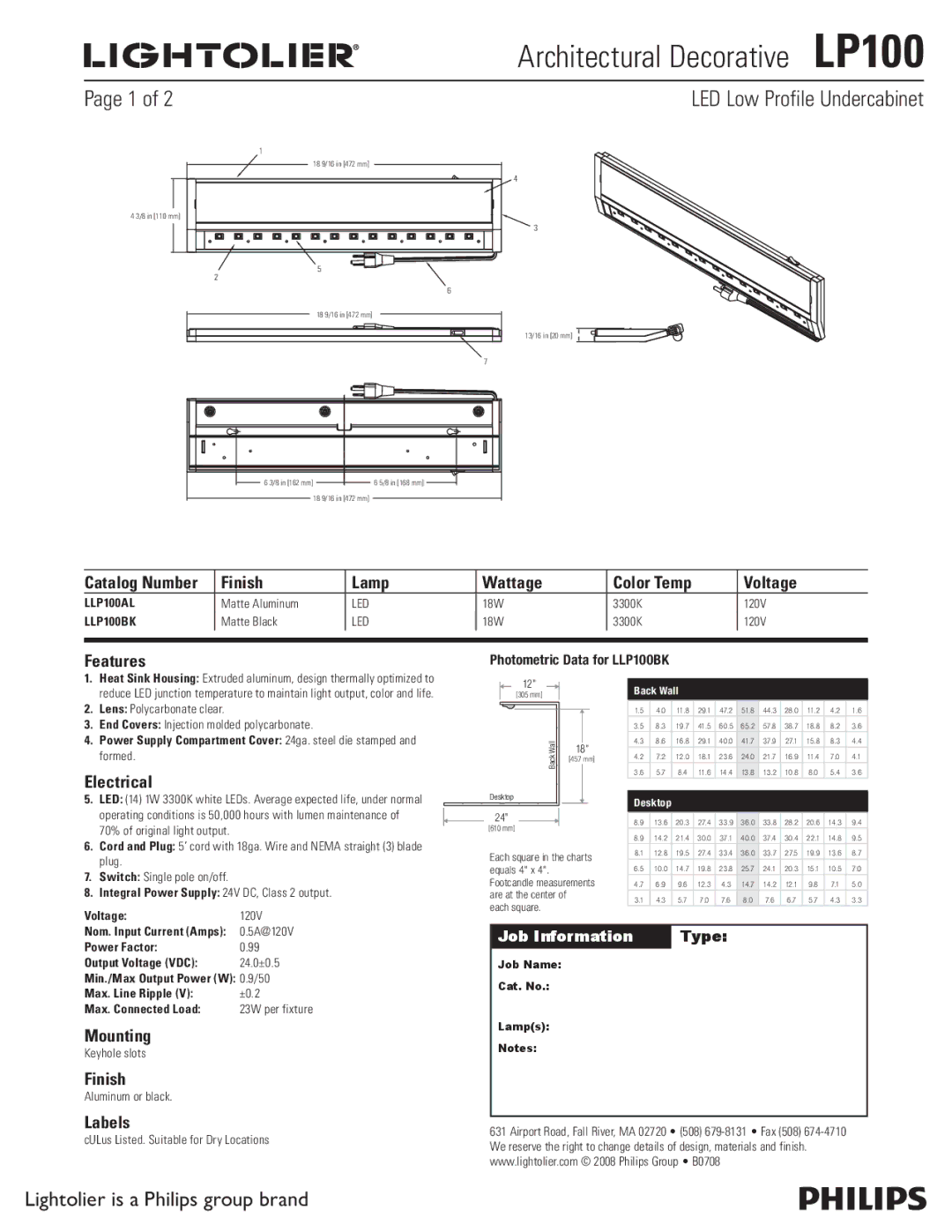

Architectural Decorative  LP100































































































































































Page 1 of 2































LED Low Profile Undercabinet

1

18 9/16 in [472 mm]

4

4 3/8 in [110 mm]

2

5

6

3

18 9/16 in [472 mm]

7





6 3/8 in [162 mm]













6 5/8 in [168 mm]













































































18 9/16 in [472 mm]



























13/16 in [20 mm]

Catalog Number

Finish

Lamp

LLP100AL

Matte Aluminum

LED

LLP100BK

Matte Black

LED

Features

Wattage

Color Temp

Voltage

18W

3300K

120V

18W

3300K

120V

Photometric Data for LLP100BK

1.Heat Sink Housing: Extruded aluminum, design thermally optimized to reduce LED junction temperature to maintain light output, color and life.

2.Lens: Polycarbonate clear.

3.End Covers: Injection molded polycarbonate.

4.Power Supply Compartment Cover: 24ga. steel die stamped and formed.

Electrical

5.LED: (14) 1W 3300K white LEDs. Average expected life, under normal operating conditions is 50,000 hours with lumen maintenance of 70% of original light output.

6.Cord and Plug: 5’ cord with 18ga. Wire and NEMA straight (3) blade plug.

7.Switch: Single pole on/off.

8.Integral Power Supply: 24V DC, Class 2 output.

Voltage:

120V

12"

[305 mm]

Wall





18"

Back

[457 mm]





Desktop

24"

[610 mm]

Each square in the charts equals 4" x 4". Footcandle measurements are at the center of each square.

Back Wall

1.5

4.0

11.8

29.1

47.2

51.8

44.3

28.0

11.2

4.2

1.6

3.5

8.3

19.7

41.5

60.5

65.2

57.8

38.7

18.8

8.2

3.6

4.3

8.6

16.8

29.1

40.0

41.7

37.9

27.1

15.8

8.3

4.4

4.2

7.2

12.0

18.1

23.6

24.0

21.7

16.9

11.4

7.0

4.1

3.6

5.7

8.4

11.6

14.4

13.8

13.2

10.8

8.0

5.4

3.6

Desktop

8.9

13.6

20.3

27.4

33.9

36.0

33.8

28.2

20.6

14.3

9.4

8.9

14.2

21.4

30.0

37.1

40.0

37.4

30.4

22.1

14.8

9.5

8.1

12.8

19.5

27.4

33.4

36.0

33.7

27.5

19.9

13.6

8.7

6.5

10.0

14.7

19.8

23.8

25.7

24.1

20.3

15.1

10.5

7.0

4.7

6.9

9.6

12.3

4.3

14.7

14.2

12.1

9.8

7.1

5.0

3.1

4.3

5.7

7.0

7.6

8.0

7.6

6.7

5.7

4.3

3.3

Nom. Input Current (Amps):

0.5A@120V

Power Factor:

0.99

Output Voltage (VDC):

24.0±0.5

Min./Max Output Power (W): 0.9/50

Max. Line Ripple (V):

±0.2

Max. Connected Load:

23W per fixture

Mounting

Keyhole slots

Finish

Aluminum or black.

Labels

cULus Listed. Suitable for Dry Locations

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • B0708
