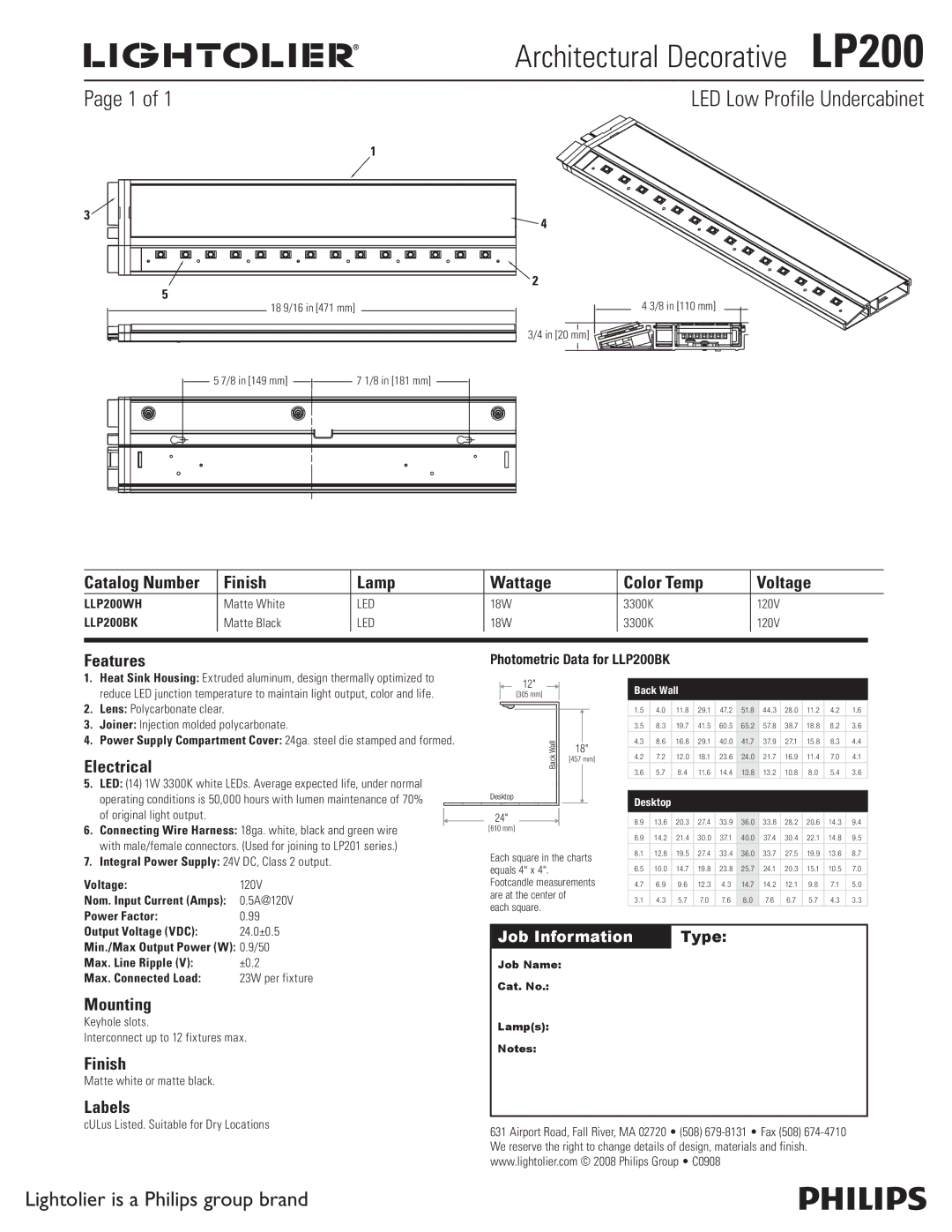

Architectural Decorative  LP200

Page 1 of 1

LED Low Profile Undercabinet



1

3

4



2

5

18 9/16 in [471 mm]

3/4 in [20 mm]

4 3/8 in [110 mm]

5 7/8 in [149 mm]

7 1/8 in [181 mm]

Catalog Number

Finish

Lamp

LLP200WH

Matte White

LED

LLP200BK

Matte Black

LED

Features

Wattage

Color Temp

Voltage

18W

3300K

120V

18W

3300K

120V

Photometric Data for LLP200BK

1.Heat Sink Housing: Extruded aluminum, design thermally optimized to reduce LED junction temperature to maintain light output, color and life.

2.Lens: Polycarbonate clear.

3.Joiner: Injection molded polycarbonate.

4.Power Supply Compartment Cover: 24ga. steel die stamped and formed.

Electrical

5.LED: (14) 1W 3300K white LEDs. Average expected life, under normal operating conditions is 50,000 hours with lumen maintenance of 70% of original light output.

6.Connecting Wire Harness: 18ga. white, black and green wire with male/female connectors. (Used for joining to LP201 series.)

7.Integral Power Supply: 24V DC, Class 2 output.

Voltage:

120V

Nom. Input Current (Amps): 0.5A@120V

Power Factor:

0.99

12"

[305 mm]

Wall





18"

Back

[457 mm]





Desktop

24"

[610 mm]

Each square in the charts equals 4" x 4". Footcandle measurements are at the center of each square.

Back Wall

1.5

4.0

11.8

29.1

47.2

51.8

44.3

28.0

11.2

4.2

1.6

3.5

8.3

19.7

41.5

60.5

65.2

57.8

38.7

18.8

8.2

3.6

4.3

8.6

16.8

29.1

40.0

41.7

37.9

27.1

15.8

8.3

4.4

4.2

7.2

12.0

18.1

23.6

24.0

21.7

16.9

11.4

7.0

4.1

3.6

5.7

8.4

11.6

14.4

13.8

13.2

10.8

8.0

5.4

3.6

Desktop

8.9

13.6

20.3

27.4

33.9

36.0

33.8

28.2

20.6

14.3

9.4

8.9

14.2

21.4

30.0

37.1

40.0

37.4

30.4

22.1

14.8

9.5

8.1

12.8

19.5

27.4

33.4

36.0

33.7

27.5

19.9

13.6

8.7

6.5

10.0

14.7

19.8

23.8

25.7

24.1

20.3

15.1

10.5

7.0

4.7

6.9

9.6

12.3

4.3

14.7

14.2

12.1

9.8

7.1

5.0

3.1

4.3

5.7

7.0

7.6

8.0

7.6

6.7

5.7

4.3

3.3

Output Voltage (VDC):

24.0±0.5

Min./Max Output Power (W): 0.9/50

Max. Line Ripple (V):

±0.2

Max. Connected Load:

23W per fixture

Mounting

Keyhole slots.

Interconnect up to 12 fixtures max.

Finish

Matte white or matte black.

Labels

cULus Listed. Suitable for Dry Locations

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • C0908

Lightolier is a Philips group brand
