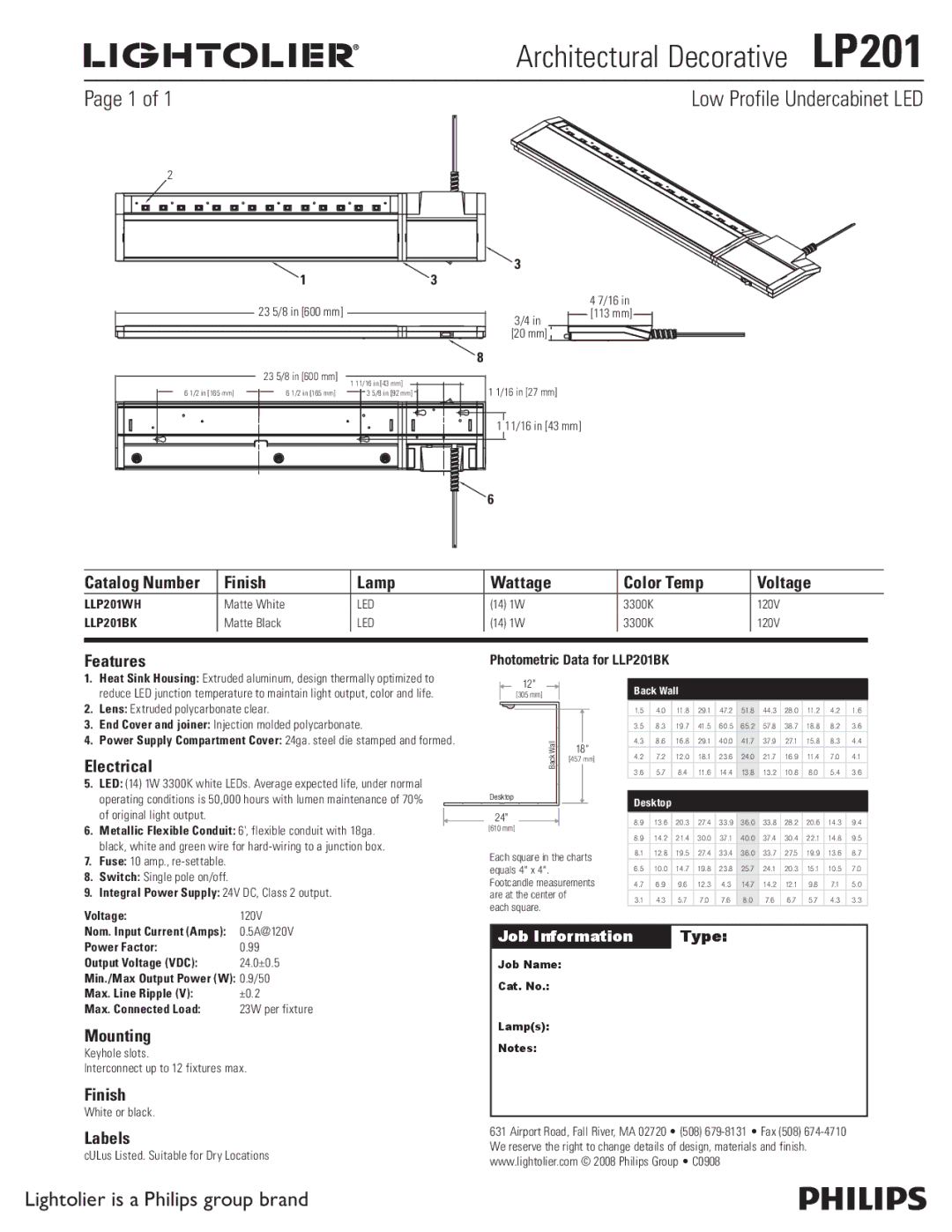

| Architectural Decorative LP201 |
Page 1 of 1 | Low Profile Undercabinet LED |
2 |
|
6 1/2 in [165 mm]
1 | 3 |
|
3 |
| |
23 5/8 in [600 mm] |
| 4 7/16 in |
3/4 in | [113 mm] | |
|
| |
| [20 mm] |
|
|
|
|
|
|
|
|
| 8 |
|
|
23 5/8 in [600 mm] |
|
|
|
|
|
|
|
|
| |
| 1 11/16 in [43 mm] |
|
|
|
| 1 1/16 in [27 mm] | ||||
| 6 1/2 in [165 mm] |
|
| 3 5/8 in [92 mm] |
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 11/16 in [43 mm]
6
Catalog Number | Finish | Lamp |
LLP201WH | Matte White | LED |
LLP201BK | Matte Black | LED |
Features
Wattage | Color Temp | Voltage |
(14) 1W | 3300K | 120V |
(14) 1W | 3300K | 120V |
1.Heat Sink Housing: Extruded aluminum, design thermally optimized to reduce LED junction temperature to maintain light output, color and life.
2.Lens: Extruded polycarbonate clear.
3.End Cover and joiner: Injection molded polycarbonate.
4.Power Supply Compartment Cover: 24ga. steel die stamped and formed.
Electrical
5.LED: (14) 1W 3300K white LEDs. Average expected life, under normal operating conditions is 50,000 hours with lumen maintenance of 70% of original light output.
6.Metallic Flexible Conduit: 6', flexible conduit with 18ga. black, white and green wire for
7.Fuse: 10 amp.,
8.Switch: Single pole on/off.
9.Integral Power Supply: 24V DC, Class 2 output.
Voltage: | 120V |
12"
[305 mm]
Wall |
|
|
18" | ||
Back | [457 mm] | |
|
| |
Desktop
24"
[610 mm]
Each square in the charts equals 4" x 4". Footcandle measurements are at the center of each square.
Back Wall
1.5 | 4.0 | 11.8 | 29.1 | 47.2 | 51.8 | 44.3 | 28.0 | 11.2 | 4.2 | 1.6 |
3.5 | 8.3 | 19.7 | 41.5 | 60.5 | 65.2 | 57.8 | 38.7 | 18.8 | 8.2 | 3.6 |
4.3 | 8.6 | 16.8 | 29.1 | 40.0 | 41.7 | 37.9 | 27.1 | 15.8 | 8.3 | 4.4 |
4.2 | 7.2 | 12.0 | 18.1 | 23.6 | 24.0 | 21.7 | 16.9 | 11.4 | 7.0 | 4.1 |
3.6 | 5.7 | 8.4 | 11.6 | 14.4 | 13.8 | 13.2 | 10.8 | 8.0 | 5.4 | 3.6 |
Desktop
8.9 | 13.6 | 20.3 | 27.4 | 33.9 | 36.0 | 33.8 | 28.2 | 20.6 | 14.3 | 9.4 |
8.9 | 14.2 | 21.4 | 30.0 | 37.1 | 40.0 | 37.4 | 30.4 | 22.1 | 14.8 | 9.5 |
8.1 | 12.8 | 19.5 | 27.4 | 33.4 | 36.0 | 33.7 | 27.5 | 19.9 | 13.6 | 8.7 |
6.5 | 10.0 | 14.7 | 19.8 | 23.8 | 25.7 | 24.1 | 20.3 | 15.1 | 10.5 | 7.0 |
4.7 | 6.9 | 9.6 | 12.3 | 4.3 | 14.7 | 14.2 | 12.1 | 9.8 | 7.1 | 5.0 |
3.1 | 4.3 | 5.7 | 7.0 | 7.6 | 8.0 | 7.6 | 6.7 | 5.7 | 4.3 | 3.3 |
Nom. Input Current (Amps): | 0.5A@120V |
Power Factor: | 0.99 |
Output Voltage (VDC): | 24.0±0.5 |
Min./Max Output Power (W): 0.9/50 | |
Max. Line Ripple (V): | ±0.2 |
Max. Connected Load: | 23W per fixture |
Mounting
Keyhole slots.
Interconnect up to 12 fixtures max.
Finish
White or black.
Labels
cULus Listed. Suitable for Dry Locations
| Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
