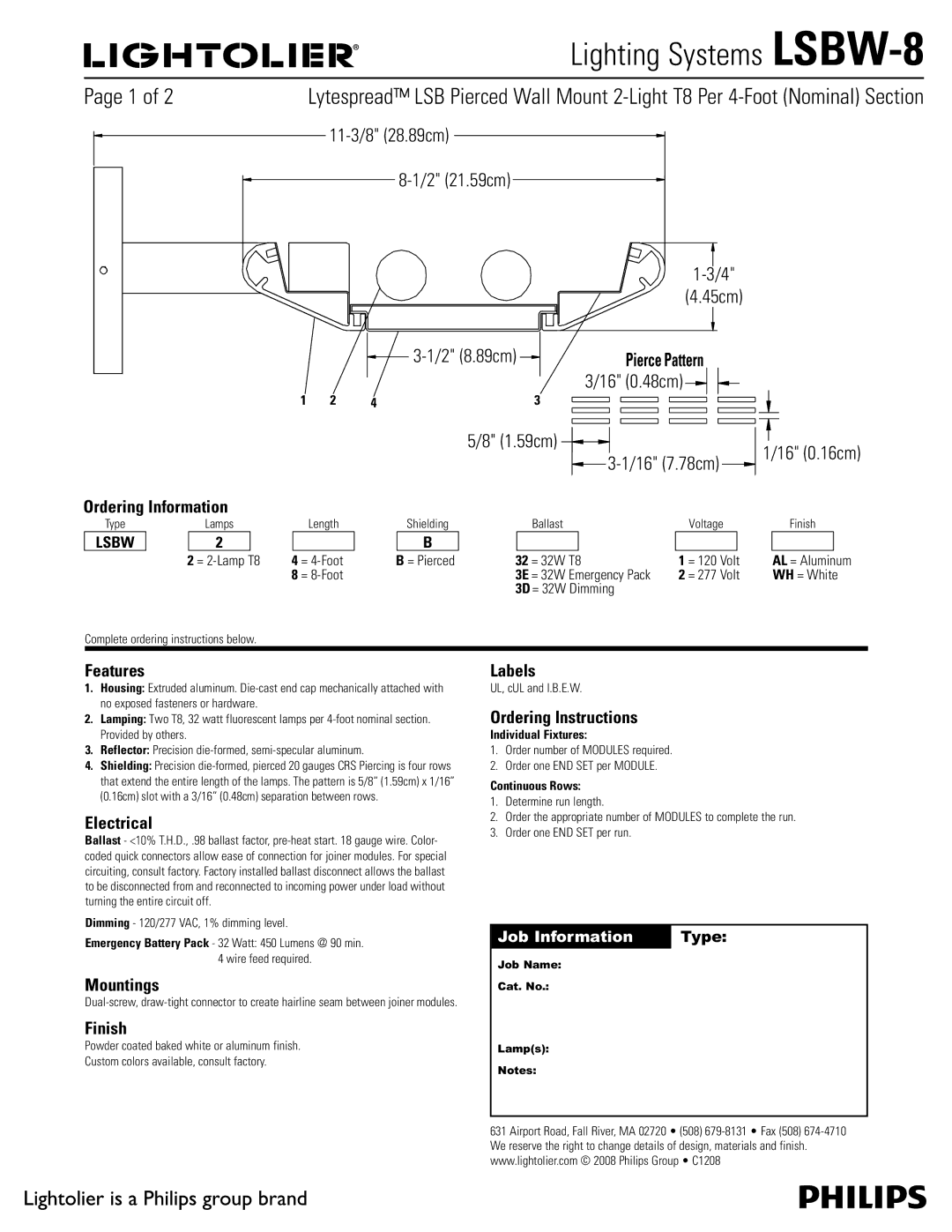

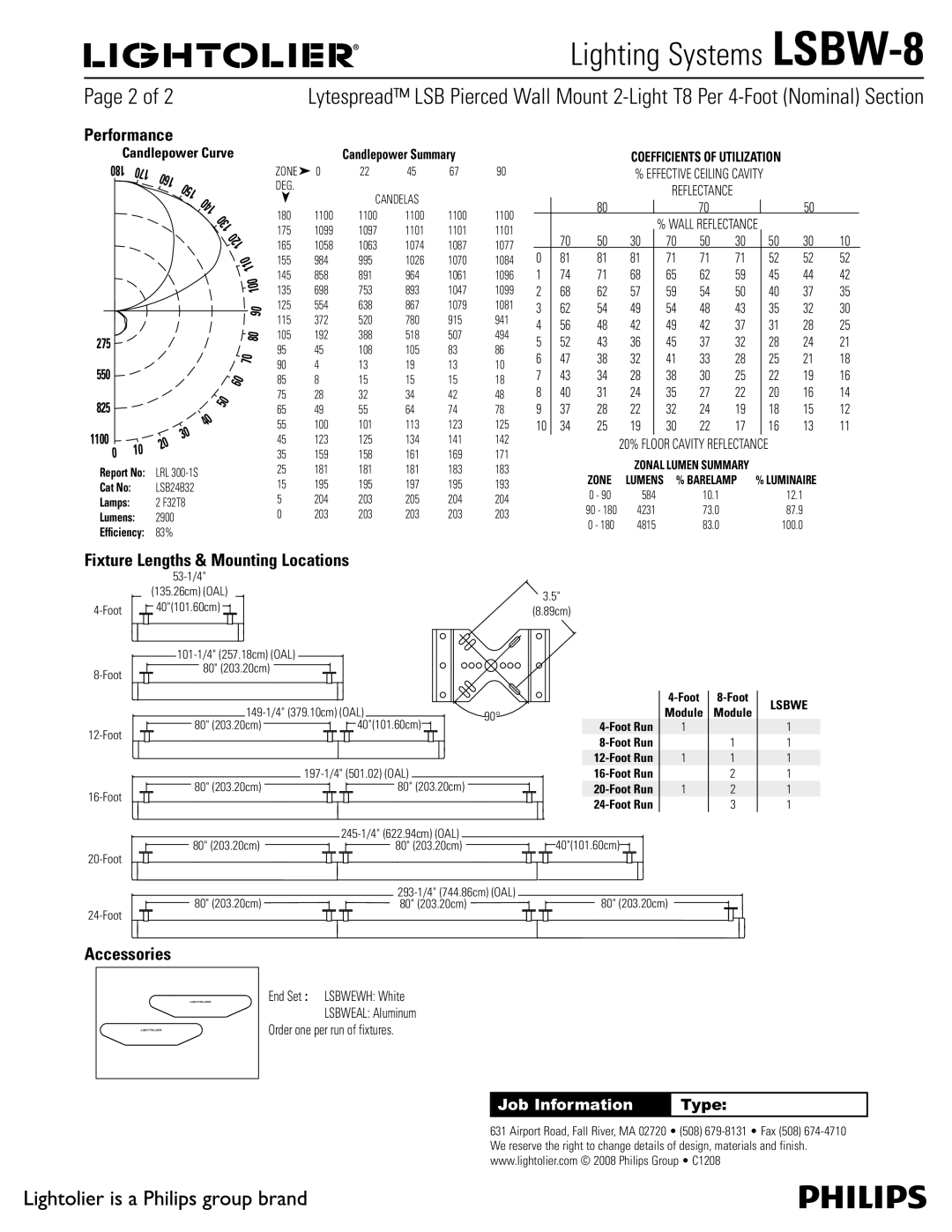

Lighting Systems LSBW-8

1BHF

PG

-ZUFTQSFBEÜ
-4#
1JFSDFE
8BMM
.PVOU
-JHIU
5
1FS
'PPU
/PNJOBM
4FDUJPO

11-3/8" (28.89cm)

8-1/2" (21.59cm)

					1-3/4"
					(4.45cm)
			3-1/2" (8.89cm)		Pierce Pattern
	1	2		3	3/16" (0.48cm)
			4
			5/8" (1.59cm)		3-1/16" (7.78cm)	1/16" (0.16cm)
Ordering Information
Type	Lamps	Length	Shielding	Ballast	Voltage	Finish

LSBW

2

2 = 2-Lamp T8	4 = 4-Foot
	8 = 8-Foot

B

B = Pierced	32 = 32W	T8	1 = 120 Volt	AL = Aluminum
	3E = 32W	Emergency Pack	2 = 277 Volt	WH = White
	3D = 32W Dimming

Complete ordering instructions below.

Features

1.Housing: Extruded aluminum. Die-cast end cap mechanically attached with no exposed fasteners or hardware.

2.Lamping: Two T8, 32 watt fluorescent lamps per 4-foot nominal section. Provided by others.

3.Reflector: Precision die-formed, semi-specular aluminum.

4.Shielding: Precision die-formed, pierced 20 gauges CRS Piercing is four rows that extend the entire length of the lamps. The pattern is 5/8” (1.59cm) x 1/16” (0.16cm) slot with a 3/16” (0.48cm) separation between rows.

Electrical

Ballast - <10% T.H.D., .98 ballast factor, pre-heat start. 18 gauge wire. Color- coded quick connectors allow ease of connection for joiner modules. For special circuiting, consult factory. Factory installed ballast disconnect allows the ballast to be disconnected from and reconnected to incoming power under load without turning the entire circuit off.

Dimming - 120/277 VAC, 1% dimming level.

Emergency Battery Pack - 32 Watt: 450 Lumens @ 90 min. 4 wire feed required.

Mountings

Dual-screw, draw-tight connector to create hairline seam between joiner modules.

Finish

Powder coated baked white or aluminum finish.

Custom colors available, consult factory.

Labels

UL, cUL and I.B.E.W.

Ordering Instructions

Individual Fixtures:

1.Order number of MODULES required.

2.Order one END SET per MODULE.

Continuous Rows:

1.Determine run length.

2.Order the appropriate number of MODULES to complete the run.

3.Order one END SET per run.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
