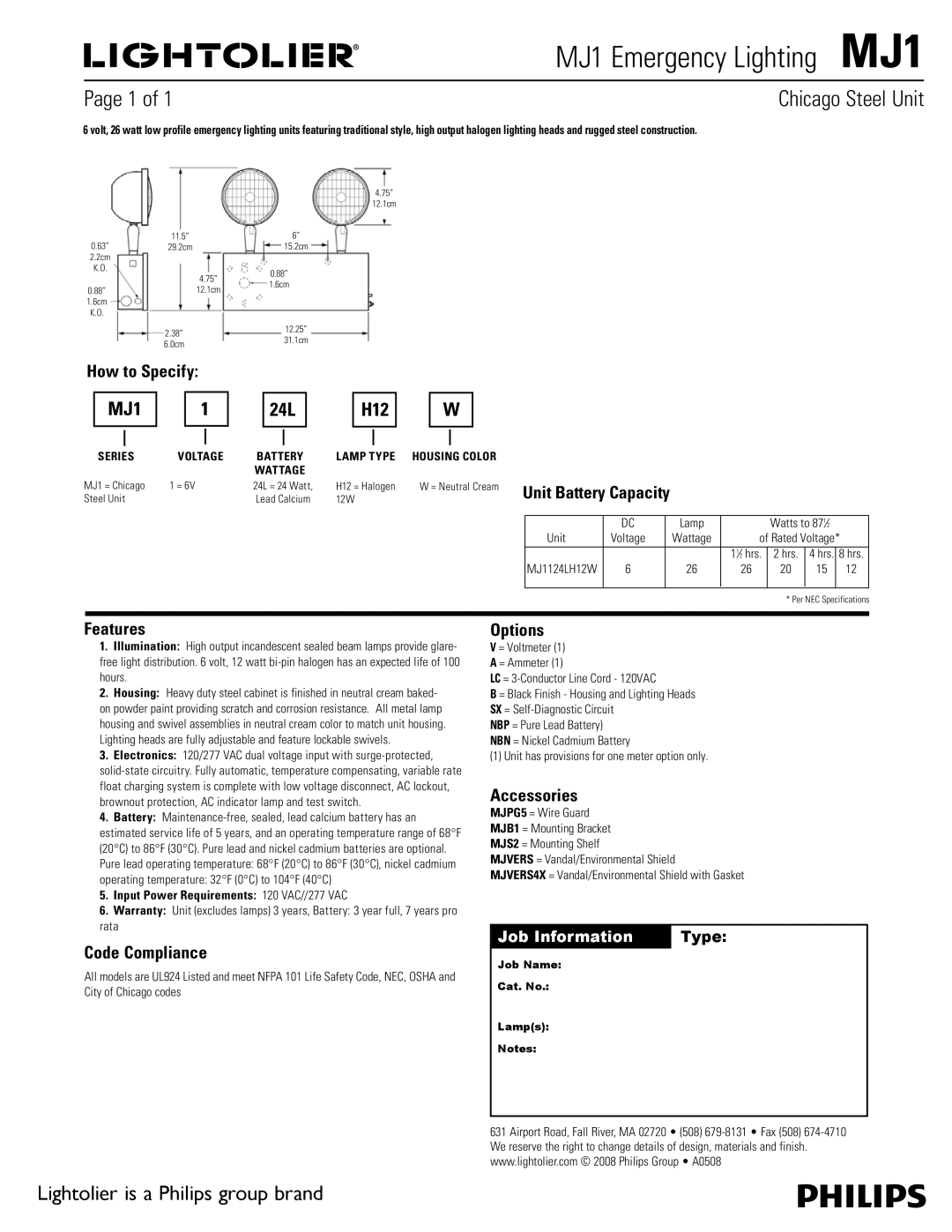

	MJ1 Emergency Lighting  MJ1
Page 1 of 1	Chicago Steel Unit

6 volt, 26 watt low profile emergency lighting units featuring traditional style, high output halogen lighting heads and rugged steel construction.

4.75”

12.1cm

	11.5”			6”
0.63”	29.2cm			15.2cm
2.2cm­
K.O.		4.75”	0.88”
			1.6cm­
0.88”		12.1cm

1.6cm­

K.O.

	12.25”
2.38”
	31.1cm
6.0cm

How to Specify:

MJ1

1

24L

H12

W

SERIES

VOLTAGE

BATTERY

LAMP TYPE

HOUSING COLOR

WATTAGE

MJ1 = Chicago

1 = 6V

24L = 24 Watt,

H12 = Halogen

W = Neutral Cream

Unit Battery Capacity

Steel Unit

Lead Calcium

12W

DC

Lamp

Watts to 871⁄2

Unit

Voltage

Wattage

of Rated Voltage*

11⁄2 hrs.

2 hrs.

4 hrs.

8 hrs.

MJ1124LH12W

6

26

26

20

15

12

* Per NEC Specifications

Features

1.Illumination: High output incandescent sealed beam lamps provide glare- free light distribution. 6 volt, 12 watt bi-pin halogen has an expected life of 100 hours.

2.Housing: Heavy duty steel cabinet is finished in neutral cream baked-

on powder paint providing scratch and corrosion resistance. All metal lamp housing and swivel assemblies in neutral cream color to match unit housing. Lighting heads are fully adjustable and feature lockable swivels.

3.Electronics: 120/277 VAC dual voltage input with surge-protected,

solid-state circuitry. Fully automatic, temperature compensating, variable rate float charging system is complete with low voltage disconnect, AC lockout, brownout protection, AC indicator lamp and test switch.

4.Battery: Maintenance-free, sealed, lead calcium battery has an estimated service life of 5 years, and an operating temperature range of 68°F (20°C) to 86°F (30°C). Pure lead and nickel cadmium batteries are optional. Pure lead operating temperature: 68°F (20°C) to 86°F (30°C), nickel cadmium operating temperature: 32°F (0°C) to 104°F (40°C)

5.Input Power Requirements: 120 VAC//277 VAC

6.Warranty: Unit (excludes lamps) 3 years, Battery: 3 year full, 7 years pro rata

Code Compliance

All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA and City of Chicago codes

Options

V = Voltmeter (1)

A = Ammeter (1)

LC = 3-Conductor Line Cord - 120VAC

B = Black Finish - Housing and Lighting Heads SX = Self-Diagnostic Circuit

NBP = Pure Lead Battery)

NBN = Nickel Cadmium Battery

(1) Unit has provisions for one meter option only.

Accessories

MJPG5 = Wire Guard MJB1 = Mounting Bracket MJS2 = Mounting Shelf

MJVERS = Vandal/Environmental Shield

MJVERS4X = Vandal/Environmental Shield with Gasket

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
