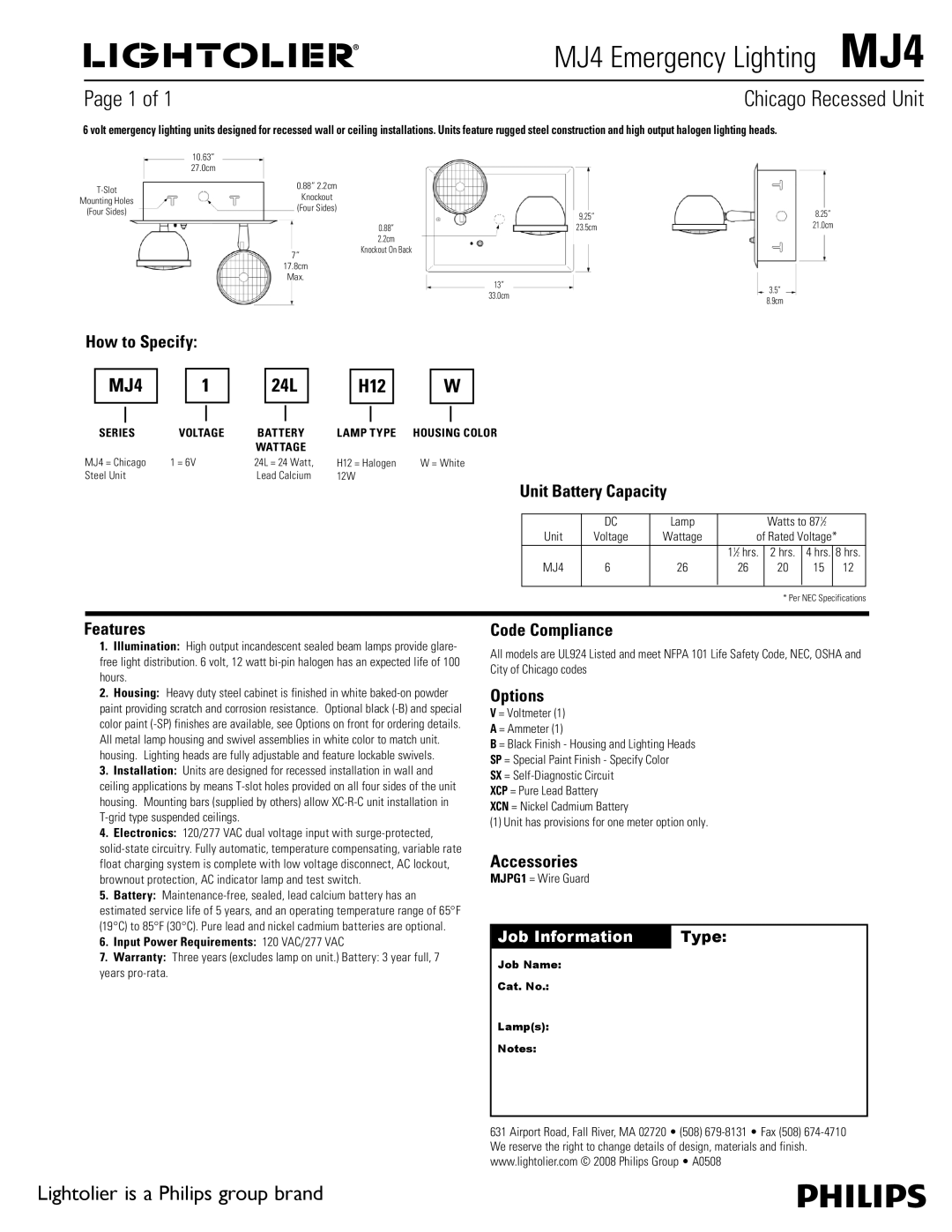

	MJ4 Emergency Lighting  MJ4
Page 1 of 1	Chicago Recessed Unit

6 volt emergency lighting units designed for recessed wall or ceiling installations. Units feature rugged steel construction and high output halogen lighting heads.

10.63”

27.0cm

T-Slot	0.88” 2.2cm­
	Knockout
Mounting Holes
	(Four Sides)
(Four Sides)		9.25”	8.25”
	0.88”	23.5cm	21.0cm

	2.2cm­
	Knockout On Back
7”
17.8cm­
Max.	13”
		3.5”
	33.0cm­
		8.9cm

How to Specify:

	MJ4		1
	SERIES	VOLTAGE
MJ4 = Chicago		1 = 6V
Steel Unit

	24L		H12		W
BATTERY		LAMP TYPE		HOUSING COLOR
WATTAGE
24L = 24 Watt,		H12 = Halogen		W = White
Lead Calcium		12W

Unit Battery Capacity

	DC	Lamp		Watts to 871⁄2
Unit	Voltage	Wattage	of Rated Voltage*
			11⁄2 hrs.	2 hrs.	4 hrs.	8 hrs.
MJ4	6	26	26	20	15		12

* Per NEC Specifications

Features

1.Illumination: High output incandescent sealed beam lamps provide glare- free light distribution. 6 volt, 12 watt bi-pin halogen has an expected life of 100 hours.

2.Housing: Heavy duty steel cabinet is finished in white baked-on powder

paint providing scratch and corrosion resistance. Optional black (-B) and special color paint (-SP) finishes are available, see Options on front for ordering details. All metal lamp housing and swivel assemblies in white color to match unit. housing. Lighting heads are fully adjustable and feature lockable swivels.

3.Installation: Units are designed for recessed installation in wall and ceiling applications by means T-slot holes provided on all four sides of the unit housing. Mounting bars (supplied by others) allow XC-R-C unit installation in T-grid type suspended ceilings.

4.Electronics: 120/277 VAC dual voltage input with surge-protected,

solid-state circuitry. Fully automatic, temperature compensating, variable rate float charging system is complete with low voltage disconnect, AC lockout, brownout protection, AC indicator lamp and test switch.

5.Battery: Maintenance-free, sealed, lead calcium battery has an estimated service life of 5 years, and an operating temperature range of 65°F (19°C) to 85°F (30°C). Pure lead and nickel cadmium batteries are optional.

6.Input Power Requirements: 120 VAC/277 VAC

7.Warranty: Three years (excludes lamp on unit.) Battery: 3 year full, 7 years pro-rata.

Code Compliance

All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA and City of Chicago codes

Options

V = Voltmeter (1)

A = Ammeter (1)

B = Black Finish - Housing and Lighting Heads SP = Special Paint Finish - Specify Color

SX = Self-Diagnostic Circuit XCP = Pure Lead Battery XCN = Nickel Cadmium Battery

(1) Unit has provisions for one meter option only.

Accessories

MJPG1 = Wire Guard

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • A0508
