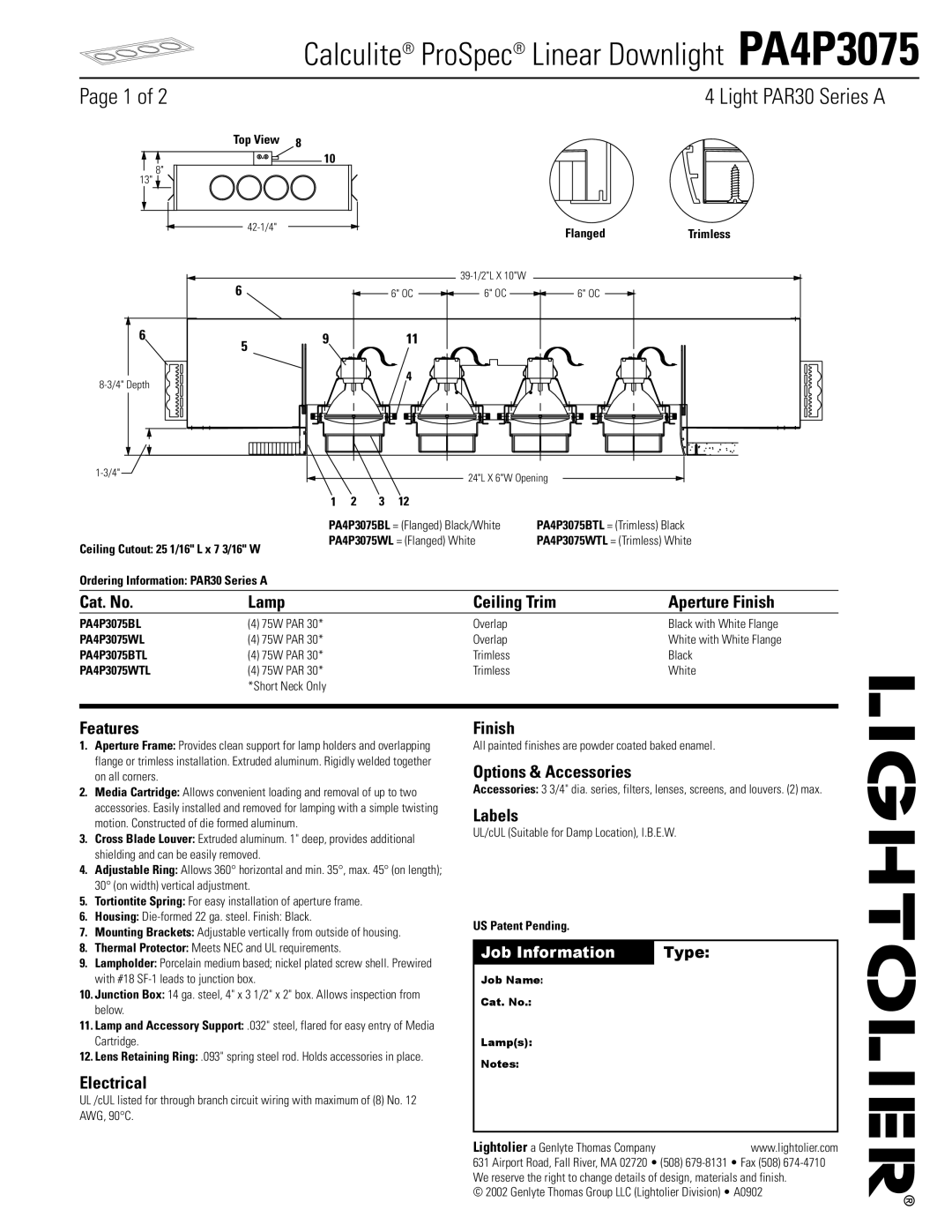

Calculite® ProSpec® Linear Downlight PA4P3075
Page 1 of 2
Top View 8
10
8" |
13" |
4 Light PAR30 Series A
FlangedTrimless
6
6
5
9
6" OC 6" OC 6" OC
11
4
24"L X 6"W Opening
| 1 | 2 | 3 | 12 |
|
|
| PA4P3075BL = (Flanged) Black/White | PA4P3075BTL = (Trimless) Black | ||||
| PA4P3075WL = (Flanged) White | PA4P3075WTL = (Trimless) White | ||||
Ceiling Cutout: 25 1/16" L x 7 3/16" W |
|
|
|
|
| |
Ordering Information: PAR30 Series A |
|
|
|
|
| |
|
|
|
|
|
| |
Cat. No. | Lamp |
|
| Ceiling Trim | Aperture Finish | |
PA4P3075BL | (4) 75W PAR 30* |
|
| Overlap |
| Black with White Flange |
PA4P3075WL | (4) 75W PAR 30* |
|
| Overlap |
| White with White Flange |
PA4P3075BTL | (4) 75W PAR 30* |
|
| Trimless |
| Black |
PA4P3075WTL | (4) 75W PAR 30* |
|
| Trimless |
| White |
| *Short Neck Only |
|
|
|
|
|
|
|
|
|
|
|
|
Features
1.Aperture Frame: Provides clean support for lamp holders and overlapping flange or trimless installation. Extruded aluminum. Rigidly welded together on all corners.
2.Media Cartridge: Allows convenient loading and removal of up to two accessories. Easily installed and removed for lamping with a simple twisting motion. Constructed of die formed aluminum.
3.Cross Blade Louver: Extruded aluminum. 1" deep, provides additional shielding and can be easily removed.
4.Adjustable Ring: Allows 360° horizontal and min. 35°, max. 45° (on length); 30° (on width) vertical adjustment.
5.Tortiontite Spring: For easy installation of aperture frame.
6.Housing:
7.Mounting Brackets: Adjustable vertically from outside of housing.
8.Thermal Protector: Meets NEC and UL requirements.
9.Lampholder: Porcelain medium based; nickel plated screw shell. Prewired with #18
10.Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from below.
11.Lamp and Accessory Support: .032" steel, flared for easy entry of Media Cartridge.
12.Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
Electrical
UL /cUL listed for through branch circuit wiring with maximum of (8) No. 12 AWG, 90°C.
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 3 3/4" dia. series, filters, lenses, screens, and louvers. (2) max.
Labels
UL/cUL (Suitable for Damp Location), I.B.E.W.
US Patent Pending.
Job Information | Type: |
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508)
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
