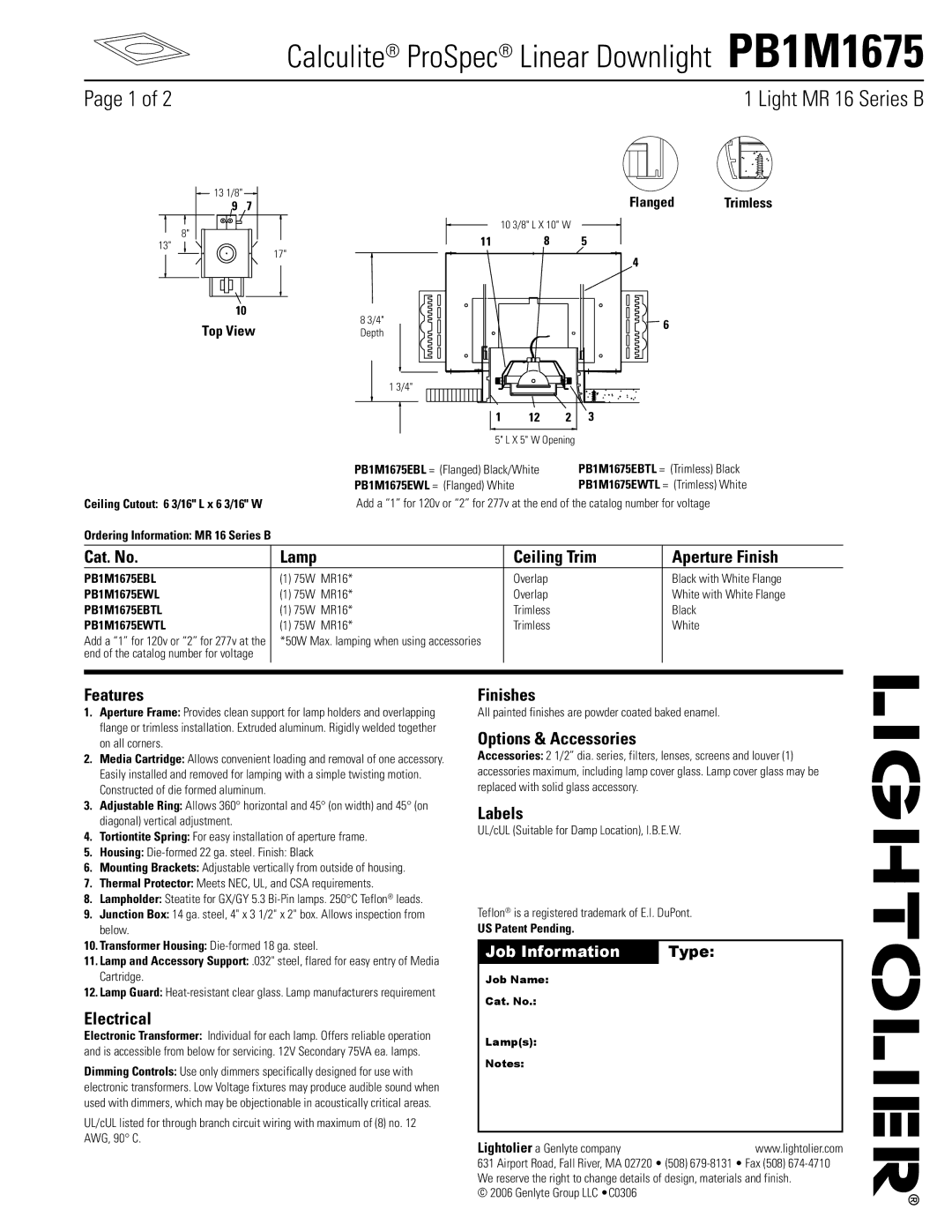

| Calculite® ProSpec® Linear Downlight PB1M1675 |
Page 1 of 2 | PB1M1675 |
1 Light MR03/0216 Series B |
13 1/8" |
|
|
|
| Flanged | Trimless | |
9 7 |
|
|
|
| |||
8" |
| 10 3/8" L X 10" W |
|
|
| ||
| 11 | 8 |
| 5 |
|
| |
13" | 17" |
|
|
| |||
|
|
|
| 4 |
|
| |
|
|
|
|
|
|
| |
10 | 8 3/4" |
|
|
| 6 |
|
|
Top View |
|
|
|
|
| ||
Depth |
|
|
|
|
| ||
|
|
|
|
|
| ||
| 1 3/4" |
|
|
|
|
|
|
|
| 1 | 12 | 2 | 3 |
|
|
|
| 5" L X 5" W Opening |
|
|
| ||
| PB1M1675EBL = | (Flanged) Black/White |
| PB1M1675EBTL = | (Trimless) Black | ||
| PB1M1675EWL = | (Flanged) White |
| PB1M1675EWTL = | (Trimless) White | ||
Ceiling Cutout: 6 3/16" L x 6 3/16" W | Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage |
| |||||
Ordering Information: MR 16 Series B |
|
|
|
|
|
|
|
Cat. No. | Lamp |
| Ceiling Trim | Aperture Finish | |||
PB1M1675EBL | (1) 75W MR16* |
| Overlap |
|
| Black with White Flange | |
PB1M1675EWL | (1) 75W MR16* |
| Overlap |
|
| White with White Flange | |
PB1M1675EBTL | (1) 75W MR16* |
| Trimless |
|
| Black |
|
PB1M1675EWTL | (1) 75W MR16* |
| Trimless |
|
| White |
|
Add a “1” for 120v or “2” for 277v at the | *50W Max. lamping when using accessories |
|
|
|
|
| |
end of the catalog number for voltage |
|
|
|
|
|
|
|
Features
1.Aperture Frame: Provides clean support for lamp holders and overlapping flange or trimless installation. Extruded aluminum. Rigidly welded together on all corners.
2.Media Cartridge: Allows convenient loading and removal of one accessory. Easily installed and removed for lamping with a simple twisting motion. Constructed of die formed aluminum.
3.Adjustable Ring: Allows 360° horizontal and 45° (on width) and 45° (on diagonal) vertical adjustment.
4.Tortiontite Spring: For easy installation of aperture frame.
5.Housing:
6.Mounting Brackets: Adjustable vertically from outside of housing.
7.Thermal Protector: Meets NEC, UL, and CSA requirements.
8.Lampholder: Steatite for GX/GY 5.3
9.Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from below.
10.Transformer Housing:
11.Lamp and Accessory Support: .032" steel, flared for easy entry of Media Cartridge.
12.Lamp Guard:
Electrical
Electronic Transformer: Individual for each lamp. Offers reliable operation and is accessible from below for servicing. 12V Secondary 75VA ea. lamps.
Dimming Controls: Use only dimmers specifically designed for use with electronic transformers. Low Voltage fixtures may produce audible sound when used with dimmers, which may be objectionable in acoustically critical areas.
UL/cUL listed for through branch circuit wiring with maximum of (8) no. 12 AWG, 90° C.
Finishes
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 2 1/2” dia. series, filters, lenses, screens and louver (1) accessories maximum, including lamp cover glass. Lamp cover glass may be replaced with solid glass accessory.
Labels
UL/cUL (Suitable for Damp Location), I.B.E.W.
Teflon® is a registered trademark of E.I. DuPont.
US Patent Pending.
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508)

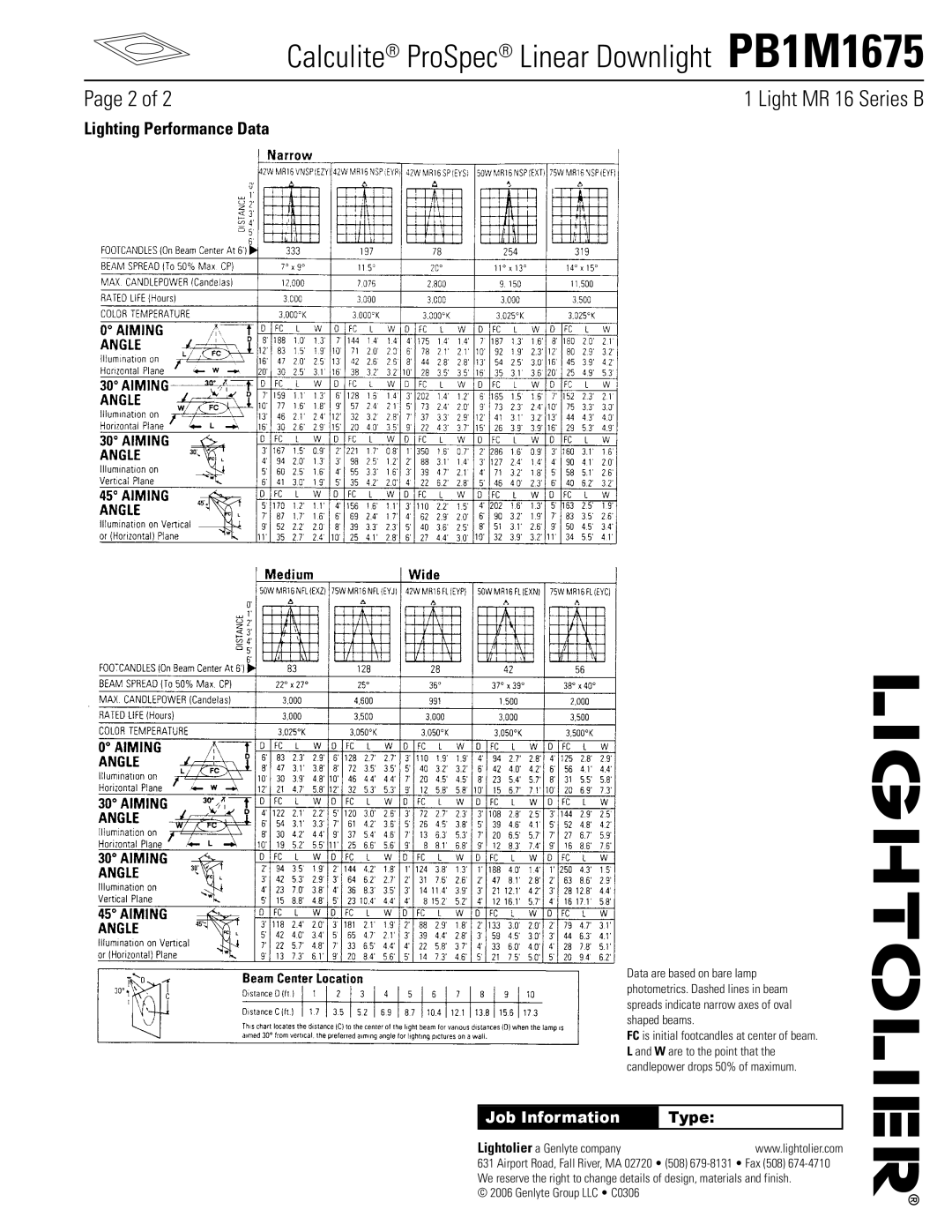

© 2006 Genlyte Group LLC •C0306
