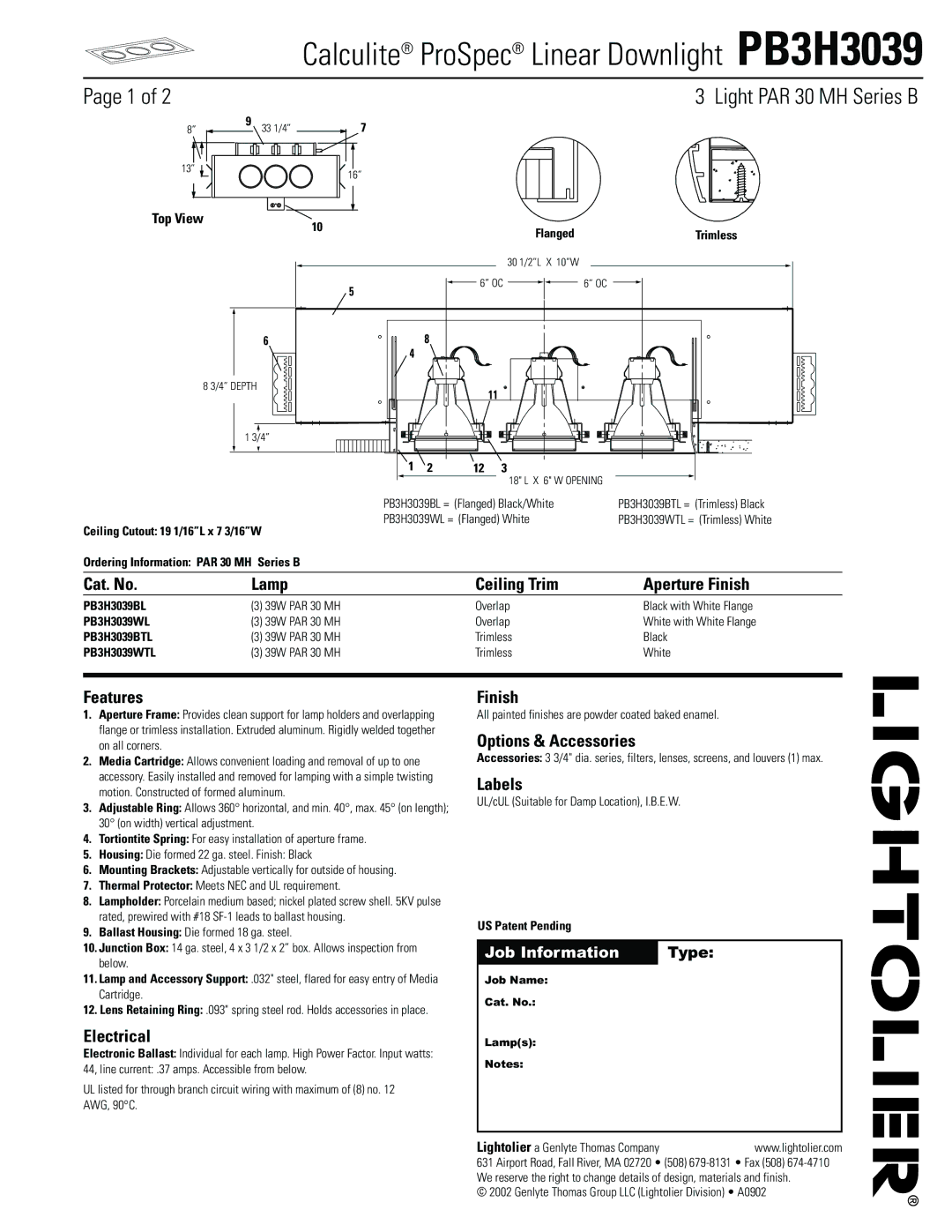

Calculite® ProSpec® Linear Downlight PB3H3039PB3H3039

03/02

Page 1 of 2

8” 9 33 1/4”

13”

Top View

10

3 Light PAR 30 MH Series B

7

16”

5

FlangedTrimless

30 1/2”L X 10”W

6” OC 6” OC

6

8 3/4” DEPTH

8

4

11

1 3/4”







1

2

12

3



















18" L X 6" W OPENING







































PB3H3039BL = (Flanged) Black/White

PB3H3039BTL = (Trimless) Black





PB3H3039WL = (Flanged) White

PB3H3039WTL = (Trimless) White

Ceiling Cutout: 19 1/16”L x 7 3/16”W











Ordering Information: PAR 30 MH Series B

























Cat. No.

Lamp



Ceiling Trim

Aperture Finish

PB3H3039BL

(3) 39W PAR 30 MH



Overlap

Black with White Flange

PB3H3039WL

(3) 39W PAR 30 MH



Overlap

White with White Flange

PB3H3039BTL

(3) 39W PAR 30 MH



Trimless

Black

PB3H3039WTL

(3) 39W PAR 30 MH



Trimless

White





















Features

1.Aperture Frame: Provides clean support for lamp holders and overlapping flange or trimless installation. Extruded aluminum. Rigidly welded together on all corners.

2.Media Cartridge: Allows convenient loading and removal of up to one accessory. Easily installed and removed for lamping with a simple twisting motion. Constructed of formed aluminum.

3.Adjustable Ring: Allows 360° horizontal, and min. 40°, max. 45° (on length); 30° (on width) vertical adjustment.

4.Tortiontite Spring: For easy installation of aperture frame.

5.Housing: Die formed 22 ga. steel. Finish: Black

6.Mounting Brackets: Adjustable vertically for outside of housing.

7.Thermal Protector: Meets NEC and UL requirement.

8.Lampholder: Porcelain medium based; nickel plated screw shell. 5KV pulse rated, prewired with #18 SF-1 leads to ballast housing.

9.Ballast Housing: Die formed 18 ga. steel.

10.Junction Box: 14 ga. steel, 4 x 3 1/2 x 2” box. Allows inspection from below.

11.Lamp and Accessory Support: .032" steel, flared for easy entry of Media Cartridge.

12.Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

Electrical

Electronic Ballast: Individual for each lamp. High Power Factor. Input watts:

44, line current: .37 amps. Accessible from below.

UL listed for through branch circuit wiring with maximum of (8) no. 12 AWG, 90°C.

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 3 3/4" dia. series, filters, lenses, screens, and louvers (1) max.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.

US Patent Pending

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:
