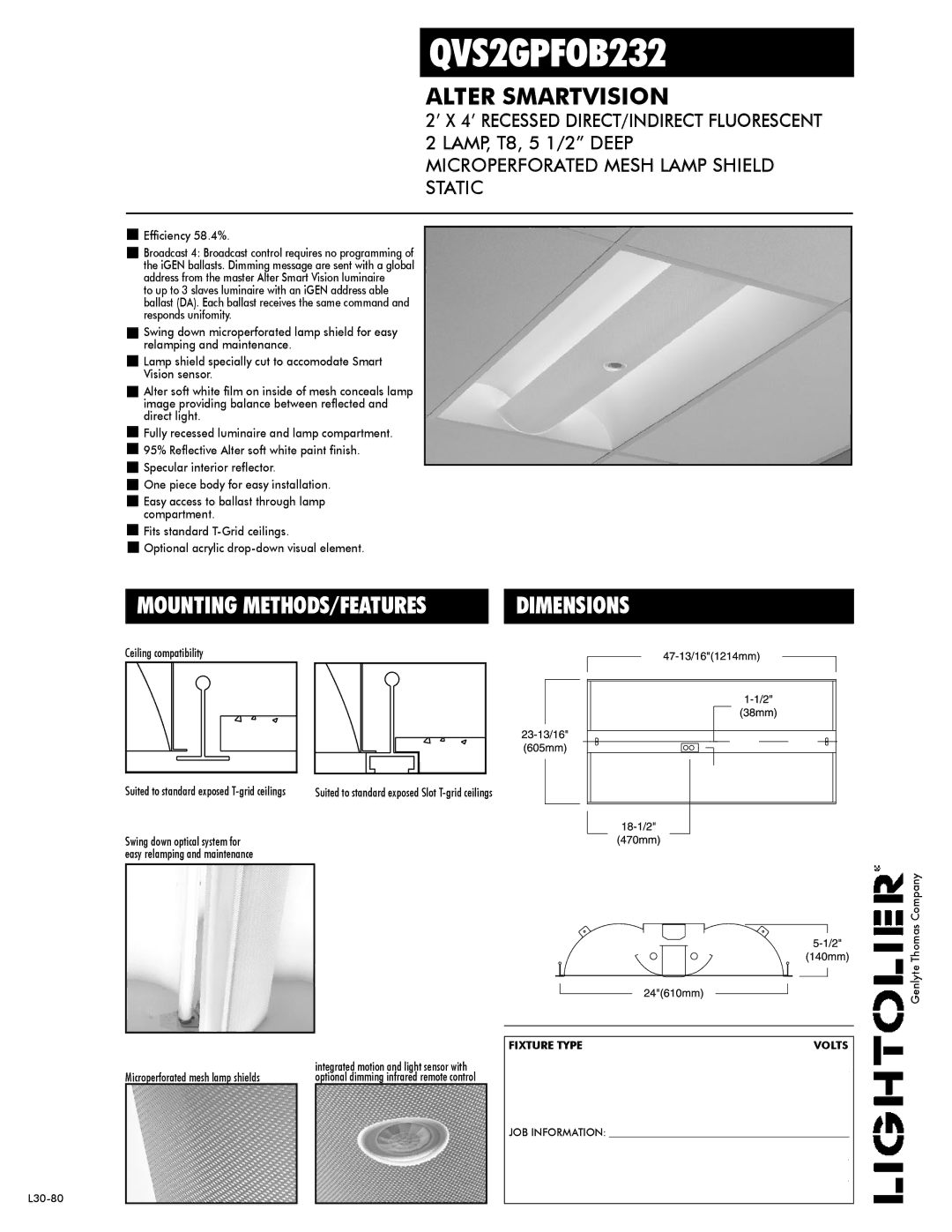

QVS2GPFOB232
ALTER SMARTVISION
2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP, T8, 5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD STATIC
Efficiency 58.4%.
Broadcast 4: Broadcast control requires no programming of the iGEN ballasts. Dimming message are sent with a global address from the master Alter Smart Vision luminaire
to up to 3 slaves luminaire with an iGEN address able ballast (DA). Each ballast receives the same command and responds unifomity.
Swing down microperforated lamp shield for easy relamping and maintenance.
Lamp shield specially cut to accomodate Smart Vision sensor.
Alter soft white film on inside of mesh conceals lamp image providing balance between reflected and direct light.
Fully recessed luminaire and lamp compartment.
95% Reflective Alter soft white paint finish.
Specular interior reflector.
One piece body for easy installation.
Easy access to ballast through lamp compartment.
Fits standard
Optional acrylic
MOUNTING METHODS/FEATURES |
| DIMENSIONS |
|
|
|
Ceiling compatibility
Suited to standard exposed
Swing down optical system for easy relamping and maintenance
Microperforated mesh lamp shields
Suited to standard exposed Slot
Genlyte Thomas Company
FIXTURE TYPE | VOLTS |
integrated motion and light sensor with optional dimming infrared remote control
JOB INFORMATION:
