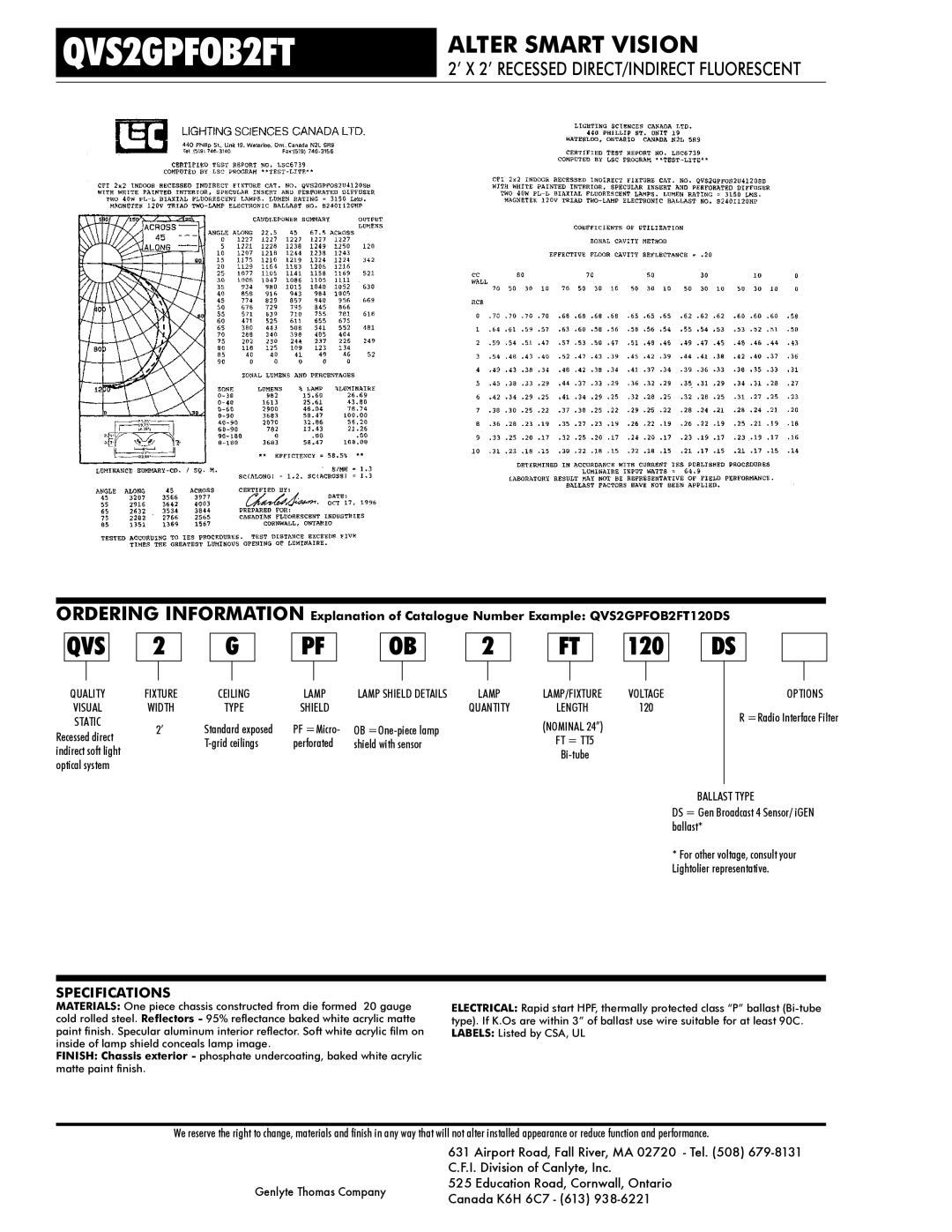

Lightolier QVS2GPFOB2FT dimensions Alter Smartvision, Dimensions, Mounting Methods/Features

L10-80

QVS2GPFOB2FT 2 x 40W

ALTER SMARTVISION

2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP, TT5 BI-TUBE, 5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD STATIC

Efficiency 58.5%.

Broadcast 4: Broadcast control requires no programming of the iGEN ballasts. Dimming message are sent with a global address from the master Alter Smart Vision luminaire

to up to 3 slaves luminaire with an iGEN address able ballast (DA). Each ballast receives the same command and responds unifomity.

Swing down microperforated lamp shield for easy relamping and maintenance.

Lamp shield specially cut to accomodate Smart Vision sensor.

Alter soft white film on inside of mesh conceals lamp image providing balance between reflected and direct light.

Fully recessed luminaire and lamp compartment.

95% Reflective Alter soft white paint finish.

Specular interior reflector.

One piece body for easy installation.

Easy access to ballast through lamp compartment.

Fits standard T-Grid ceilings.

Optional acrylic drop-down visual element.

MOUNTING METHODS/FEATURES DIMENSIONS

Ceiling compatibility

Suited to standard exposed T-grid	Suited to standard exposed Slot T-grid ceilings
ceilings

Swing down optical system for easy relamping and maintenance

Genlyte Thomas Company

FIXTURE TYPE VOLTS

Microperforated mesh lamp shields	integrated motion and light sensor with
	optional dimming infrared remote control

JOB INFORMATION:
