S1 Series Emergency Lighting  S1































































































































































Page 1 of 1































6 Volt 12 to 19.5 Watts Self-Contained Square

The S1 Series is a versatile, self-contained emergency lighting fixture. The S1 can be surface mounted, semi-recessed or fully recessed.

Surface Mount





Fully Recessed Mount











11.6”



3.8”

9.0”

3.8”

1.6”

(29.5 cm)



(9.7 cm)

(22.9 cm)

(9.7 cm)











(4.1 cm)











8.0”









9.0”



11.6”





(20.3 cm)



(29.5 cm)

12.3”



(22.9 cm)



















(31.2 cm)

2.1”

(5.3 cm)

Complete Fixture consists of unit and lamps. Select options and accessories below.

How to Specify:

SERIES

BATTERY/



WATTAGE

MASTER UNITS

MASTER UNITS

S1 = Self-Contained

Lead Calcium

Emergency Lighting

12L = 6V, 12W

REMOTE UNITS3

Nickel Cadmium1

12N = 6V, 12W

S1R6 = 6V

26N = 6V, 26W

S1R12 = 12V4



MOUNTING

CONFIGURATION

S = Surface

R = Fully Recessed2

NOTES

1)Nickel cadmium units are recommended for recessed applications.

2)For semi-recessed applications, order the surface mount unit with the RMP1 accessory. Fully recessed units can only be used on suspended ceilings.

3)DC wattage is determined by master unit.

4)12V remote units can only be remoted with 12V single point units.

Features

Unit Battery Capacity

1.Illumination: Illumination is provided by halogen lamps. Plus, the S1 Series features a highly reflective polished lens for increased illumination. 12w units are furnished with 12 watt halogen lamp. 26w unit is furnished with 7 watt halogen lamp.

2.Housing: Constructed of impact resistant, UL 94 V-0, 5 VA thermoplastic frame and backbox. The semi-recessed backbox is constructed of 22 gauge steel. The frame is matte white with a black backbox. An acrylic lens is standard. A shatter-resistant polycarbonate lens is available.

3.Electronics: 120/277 VAC dual voltage input with surge-protected, solid- state circuitry. Charging system is complete with low voltage disconnect, AC lockout, brownout protection, AC indicator lamp and test switch.

4.Battery: Maintenance free, sealed lead calcium battery has an estimated service life of 5 years, and an operating temperature range of 65°F (19°C) to 85°F (30°C). Maintenance free, sealed nickel cadmium battery has an esti- mated service life of 10 years, and an operating temperature range of 20°F (-7°C) to 95°F (35°C).

5.Input Power Requirements: 120 VAC - 0.096 amps, 10 watts; 277 VAC -

0.04amps, 10 watts

Code Compliance

UL 924 listed.

Options

V = Voltmeter

P = Polycarbonate LensNOTE: IES Photometrics are not available for S1 Series.

Accessories

RMP1 = Semi-Recessed Mounting Kit

DC





Watts to 8712



Voltage

Unit



of Rated Voltage*







112 hrs.

2 hrs.

4 hrs.

8 hrs.

6

S112L

12.0

9.0





S112N

12.0

9.0



S126N

26.0

19.5

12.5















* Per NEC Specifications





Job Information

Type:

Job Name:



Cat. No.:



Lamp(s):



Notes:







631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • E0308

Lightolier is a Philips group brand

Page 1

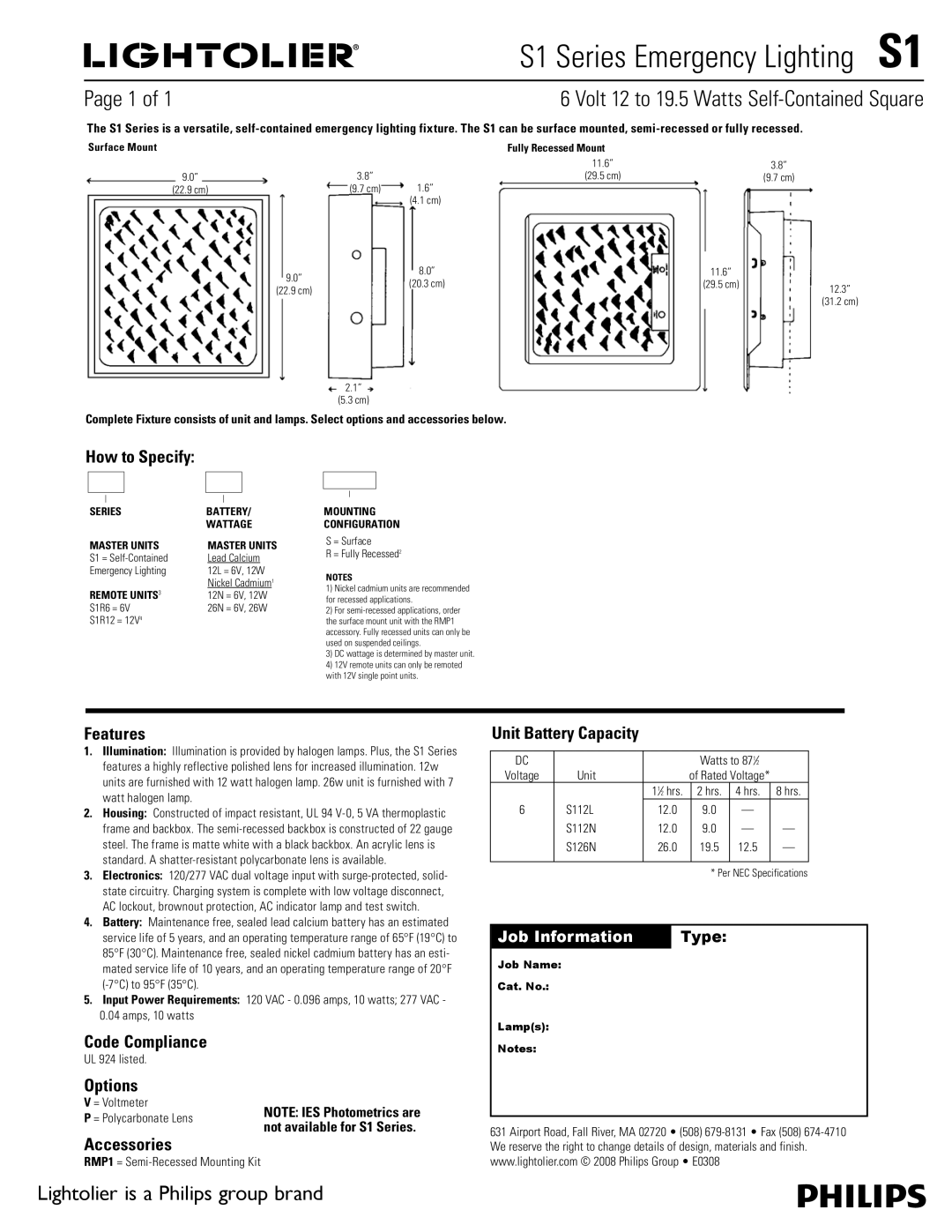

Image 1
