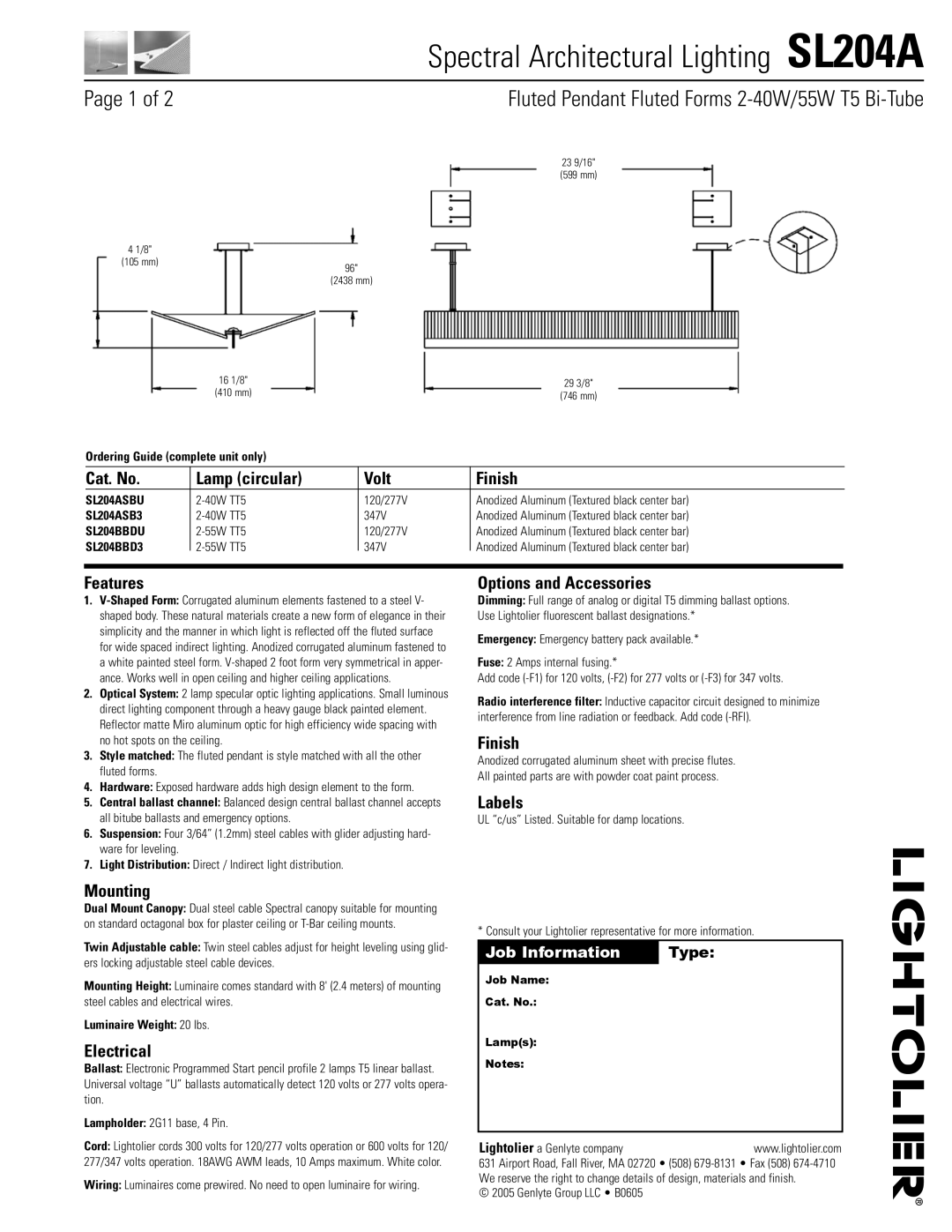

	Spectral Architectural Lighting  SL204A
Page of 2	Fluted Pendant Fluted Forms 2-40W/55W T5 Bi-Tube

4 1/8"

(105 mm)

23 9/16"

(599 mm)

96"

(2438 mm)

16 1/8"	29 3/8"
(410 mm)	(746 mm)

Ordering Guide (complete unit only)

Cat. No.	Lamp (circular)	Volt	Finish
SL204ASBU	2-40W TT5	120/277V	Anodized Aluminum (Textured black center bar)
SL204ASB3	2-40W TT5	347V	Anodized Aluminum (Textured black center bar)
SL204BBDU	2-55W TT5	120/277V	Anodized Aluminum (Textured black center bar)
SL204BBD3	2-55W TT5	347V	Anodized Aluminum (Textured black center bar)

Features

1.V-Shaped Form: Corrugated aluminum elements fastened to a steel V- shaped body. These natural materials create a new form of elegance in their simplicity and the manner in which light is reflected off the fluted surface for wide spaced indirect lighting. Anodized corrugated aluminum fastened to a white painted steel form. V-shaped 2 foot form very symmetrical in apper- ance. Works well in open ceiling and higher ceiling applications.

2.Optical System: 2 lamp specular optic lighting applications. Small luminous direct lighting component through a heavy gauge black painted element. Reflector matte Miro aluminum optic for high efficiency wide spacing with no hot spots on the ceiling.

3.Style matched: The fluted pendant is style matched with all the other fluted forms.

4.Hardware: Exposed hardware adds high design element to the form.

5.Central ballast channel: Balanced design central ballast channel accepts all bitube ballasts and emergency options.

6.Suspension: Four 3/64” (1.2mm) steel cables with glider adjusting hard- ware for leveling.

7.Light Distribution: Direct / Indirect light distribution.

Mounting

Dual Mount Canopy: Dual steel cable Spectral canopy suitable for mounting on standard octagonal box for plaster ceiling or T-Bar ceiling mounts.

Twin Adjustable cable: Twin steel cables adjust for height leveling using glid- ers locking adjustable steel cable devices.

Mounting Height: Luminaire comes standard with 8' (2.4 meters) of mounting steel cables and electrical wires.

Luminaire Weight: 20 lbs.

Electrical

Ballast: Electronic Programmed Start pencil profile 2 lamps T5 linear ballast. Universal voltage “U” ballasts automatically detect 120 volts or 277 volts opera- tion.

Lampholder: 2G11 base, 4 Pin.

Cord: Lightolier cords 300 volts for 120/277 volts operation or 600 volts for 120/ 277/347 volts operation. 18AWG AWM leads, 10 Amps maximum. White color.

Wiring: Luminaires come prewired. No need to open luminaire for wiring.

Options and Accessories

Dimming: Full range of analog or digital T5 dimming ballast options. Use Lightolier fluorescent ballast designations.*

Emergency: Emergency battery pack available.*

Fuse: 2 Amps internal fusing.*

Add code (-F1) for 120 volts, (-F2) for 277 volts or (-F3) for 347 volts.

Radio interference filter: Inductive capacitor circuit designed to minimize interference from line radiation or feedback. Add code (-RFI).

Finish

Anodized corrugated aluminum sheet with precise flutes.

All painted parts are with powder coat paint process.

Labels

UL “c/us” Listed. Suitable for damp locations.

* Consult your Lightolier representative for more information.

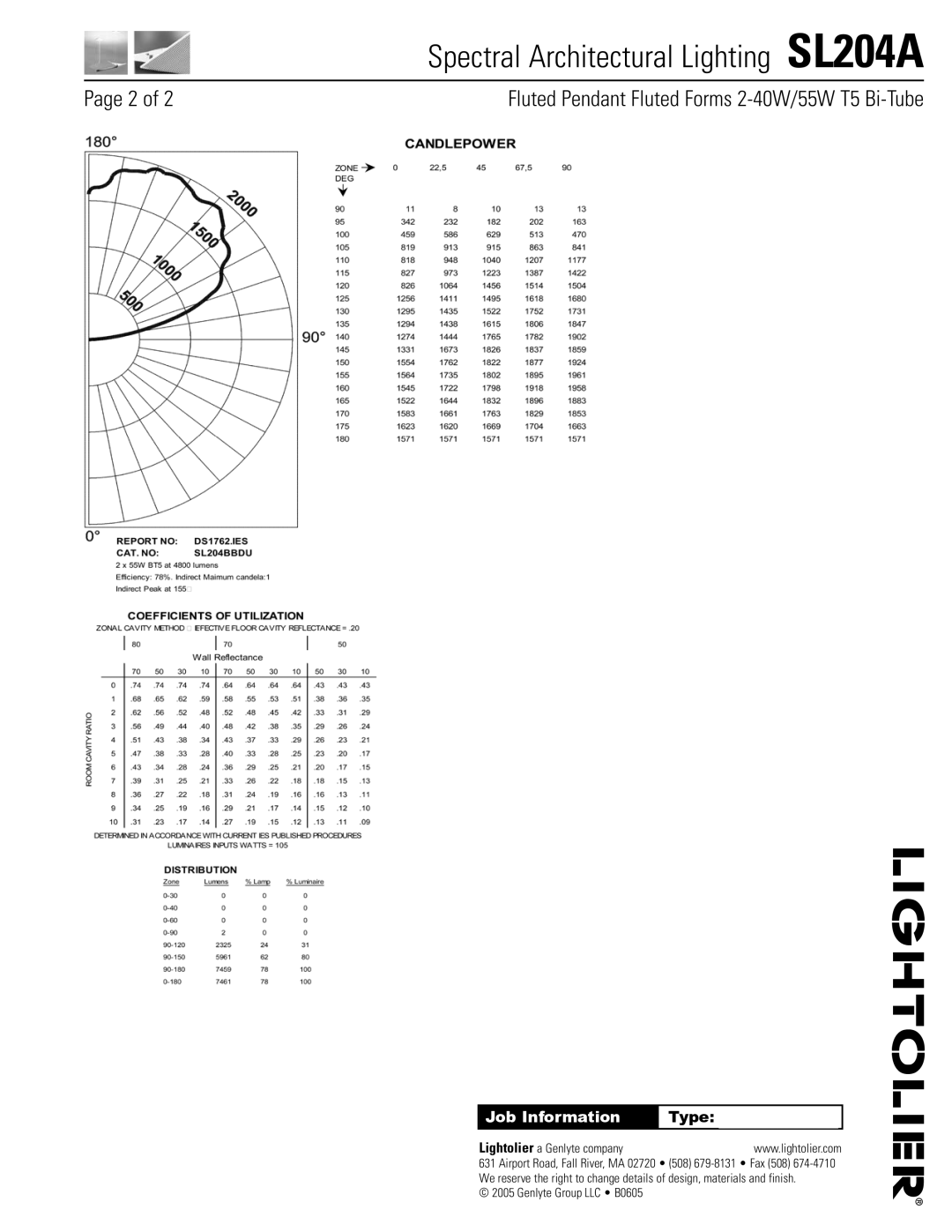

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2005 Genlyte Group LLC • B0605
