STICK WELDERS

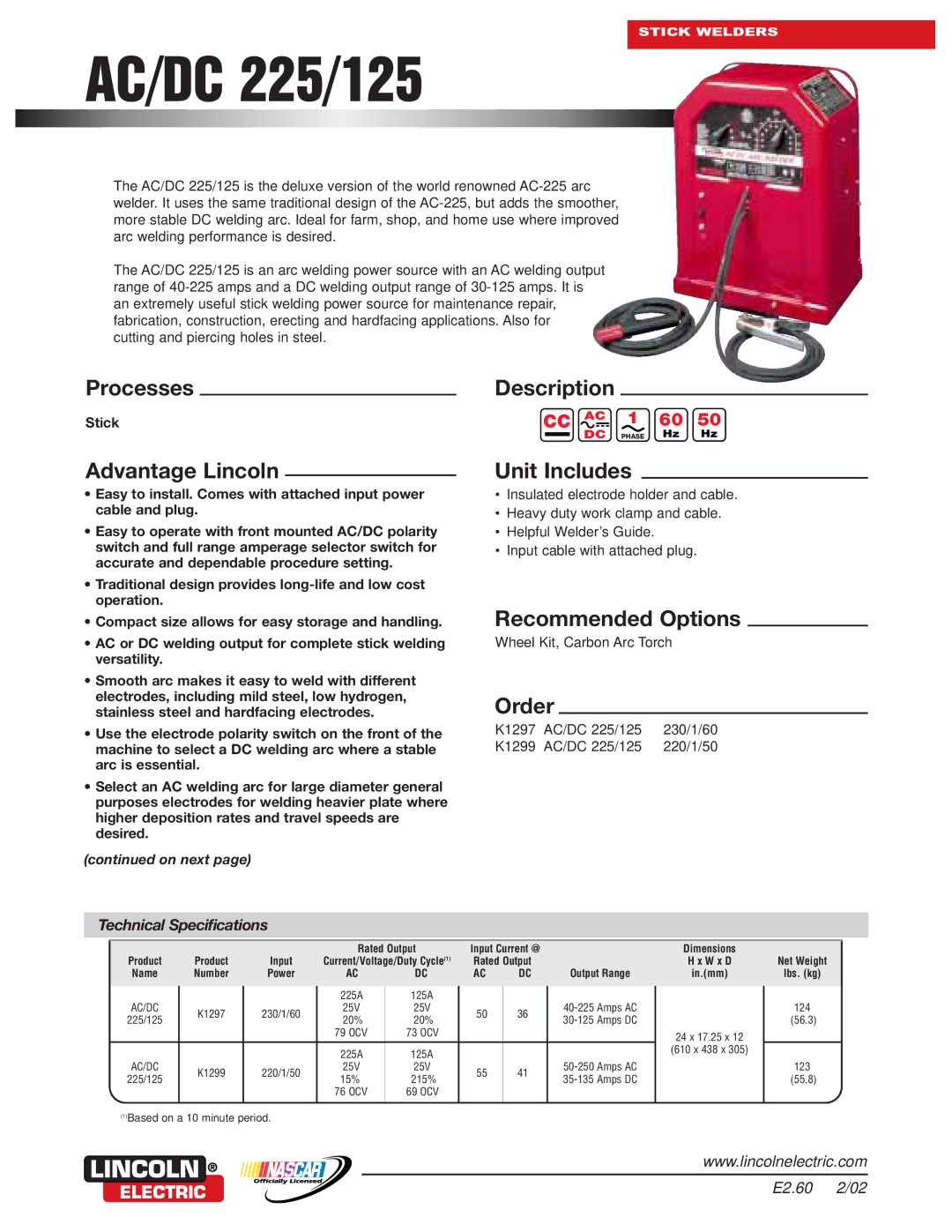

AC/DC 225/125

The AC/DC 225/125 is the deluxe version of the world renowned AC-225 arc welder. It uses the same traditional design of the AC-225, but adds the smoother, more stable DC welding arc. Ideal for farm, shop, and home use where improved arc welding performance is desired.

The AC/DC 225/125 is an arc welding power source with an AC welding output range of 40-225 amps and a DC welding output range of 30-125 amps. It is an extremely useful stick welding power source for maintenance repair, fabrication, construction, erecting and hardfacing applications. Also for cutting and piercing holes in steel.

Processes	Description
Stick	CC AC	1	60	50
	DC	PHASE	Hz	Hz

Advantage Lincoln

•Easy to install. Comes with attached input power cable and plug.

•Easy to operate with front mounted AC/DC polarity switch and full range amperage selector switch for accurate and dependable procedure setting.

•Traditional design provides long-life and low cost operation.

Unit Includes

•Insulated electrode holder and cable.

•Heavy duty work clamp and cable.

•Helpful Welder’s Guide.

•Input cable with attached plug.

•Compact size allows for easy storage and handling.

•AC or DC welding output for complete stick welding versatility.

•Smooth arc makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.

•Use the electrode polarity switch on the front of the machine to select a DC welding arc where a stable arc is essential.

•Select an AC welding arc for large diameter general purposes electrodes for welding heavier plate where higher deposition rates and travel speeds are desired.

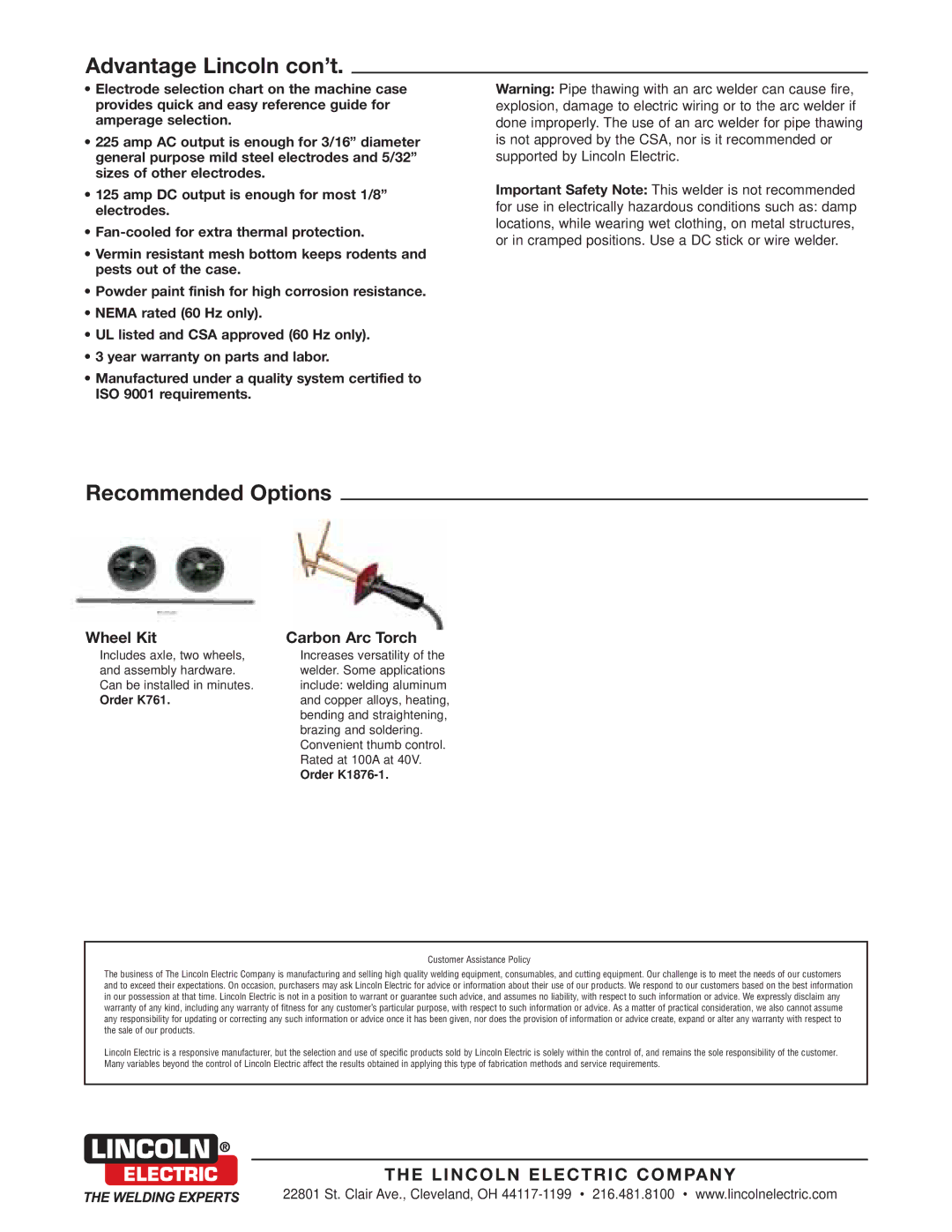

(continued on next page)

Recommended Options

Wheel Kit, Carbon Arc Torch

Order

K1297	AC/DC 225/125	230/1/60
K1299	AC/DC 225/125	220/1/50

Technical Specifications

			Rated Output		Input Current @
Product	Product	Input	Current/Voltage/Duty Cycle(1)		Rated Output
Name	Number	Power	AC	DC	AC	DC	Output Range
			225A	125A
AC/DC	K1297	230/1/60	25V	25V	50	36	40-225 Amps AC
225/125			20%	20%			30-125 Amps DC
			79 OCV	73 OCV
			225A	125A
AC/DC	K1299	220/1/50	25V	25V	55	41	50-250 Amps AC
225/125			15%	215%			35-135 Amps DC
			76 OCV	69 OCV

Dimensions

H x W x D

in.(mm)

24 x 17.25 x 12

(610 x 438 x 305)

Net Weight

lbs. (kg)

124

(56.3)

123

(55.8)

(1)Based on a 10 minute period.

www.lincolnelectric.com

E2.60 2/02
