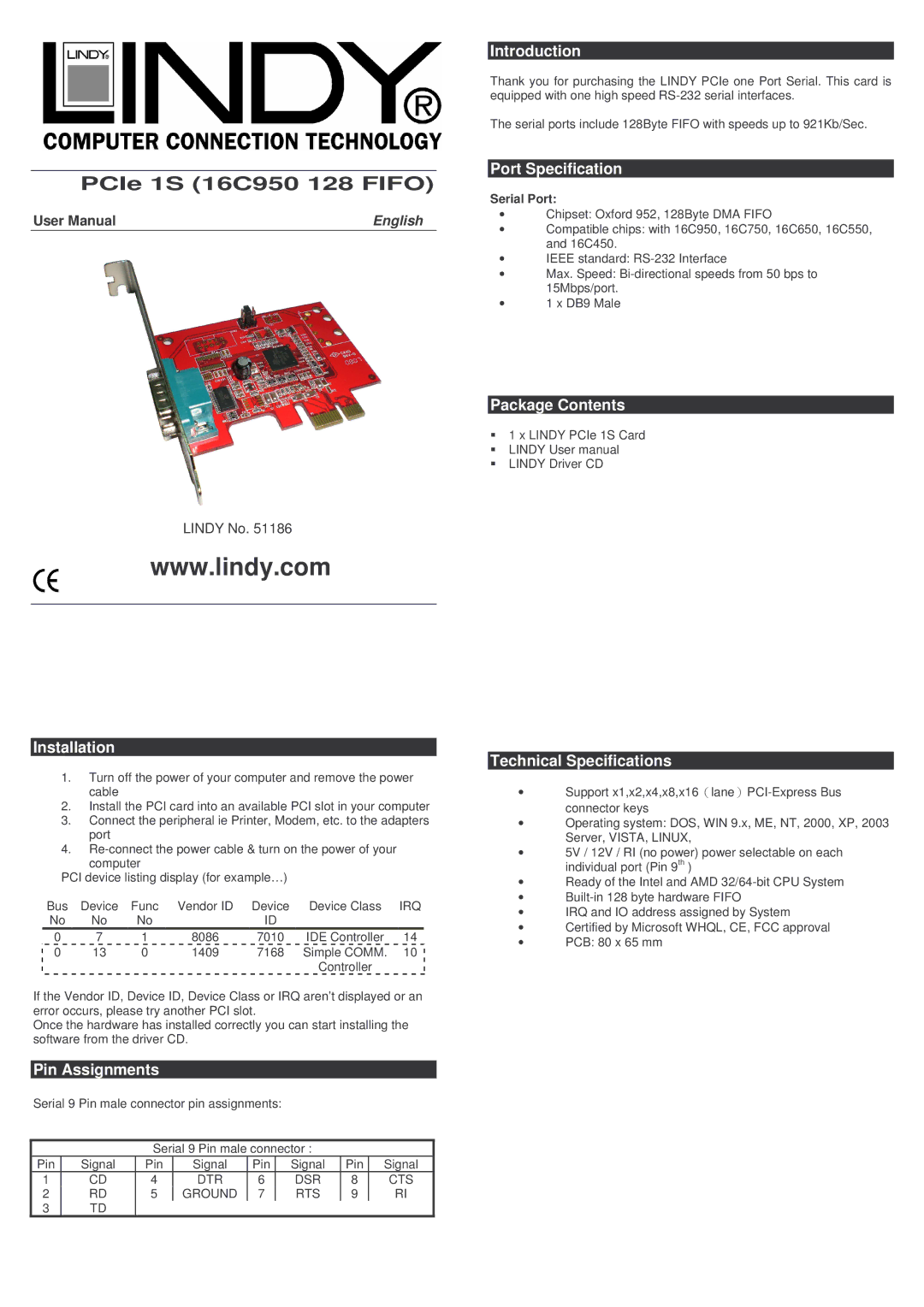

PCIe 1S (16C950 128 FIFO)

User Manual English

LINDY No. 51186

www.lindy.com

Installation

1.Turn off the power of your computer and remove the power cable

2.Install the PCI card into an available PCI slot in your computer

3.Connect the peripheral ie Printer, Modem, etc. to the adapters port

4.Re-connect the power cable & turn on the power of your computer

PCI device listing display (for example…)

Bus	Device	Func	Vendor ID	Device	Device Class	IRQ
No	No	No		ID
0	7	1	8086	7010	IDE Controller	14
0	13	0	1409	7168	Simple COMM.	10
					Controller

If the Vendor ID, Device ID, Device Class or IRQ aren’t displayed or an error occurs, please try another PCI slot.

Once the hardware has installed correctly you can start installing the software from the driver CD.

Pin Assignments

Serial 9 Pin male connector pin assignments:

Serial 9 Pin male connector :

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	CD	4	DTR	6	DSR	8	CTS
2	RD	5	GROUND	7	RTS	9	RI
3	TD

Introduction

Thank you for purchasing the LINDY PCIe one Port Serial. This card is equipped with one high speed RS-232 serial interfaces.

The serial ports include 128Byte FIFO with speeds up to 921Kb/Sec.

Port Specification

Serial Port:

•Chipset: Oxford 952, 128Byte DMA FIFO

•Compatible chips: with 16C950, 16C750, 16C650, 16C550, and 16C450.

•IEEE standard: RS-232 Interface

•Max. Speed: Bi-directional speeds from 50 bps to 15Mbps/port.

•1 x DB9 Male

Package Contents

￿1 x LINDY PCIe 1S Card

￿LINDY User manual

￿LINDY Driver CD

Technical Specifications

•Support x1,x2,x4,x8,x16 lane PCI-Express Bus connector keys

•Operating system: DOS, WIN 9.x, ME, NT, 2000, XP, 2003 Server, VISTA, LINUX,

•5V / 12V / RI (no power) power selectable on each individual port (Pin 9th )

•Ready of the Intel and AMD 32/64-bit CPU System

•Built-in 128 byte hardware FIFO

•IRQ and IO address assigned by System

•Certified by Microsoft WHQL, CE, FCC approval

•PCB: 80 x 65 mm
