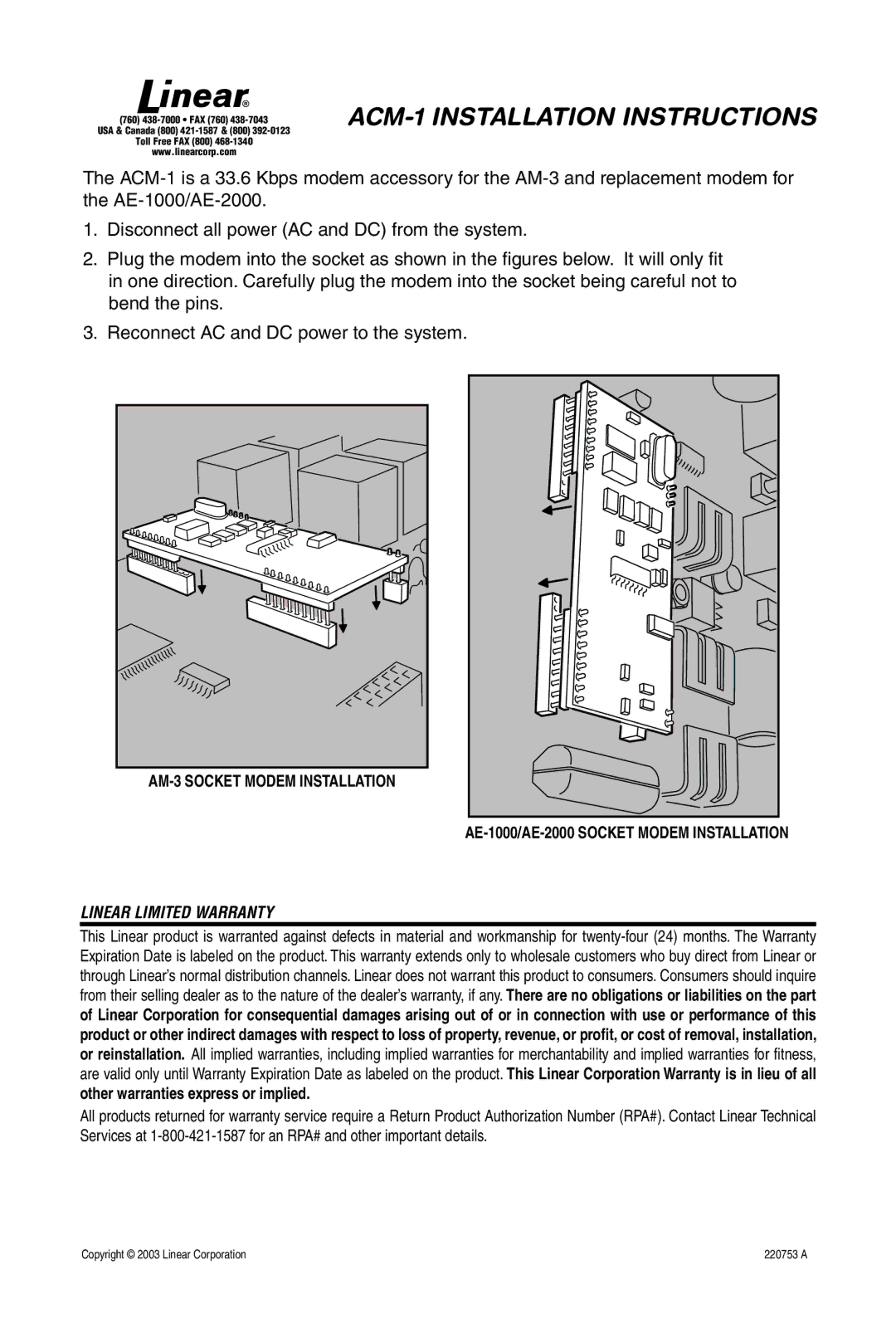

ACM-1 INSTALLATION INSTRUCTIONS

The ACM-1 is a 33.6 Kbps modem accessory for the AM-3 and replacement modem for the AE-1000/AE-2000.

1.Disconnect all power (AC and DC) from the system.

2.Plug the modem into the socket as shown in the figures below. It will only fit in one direction. Carefully plug the modem into the socket being careful not to bend the pins.

3.Reconnect AC and DC power to the system.

AM-3 SOCKET MODEM INSTALLATION

AE-1000/AE-2000 SOCKET MODEM INSTALLATION

LINEAR LIMITED WARRANTY

This Linear product is warranted against defects in material and workmanship for twenty-four (24) months. The Warranty Expiration Date is labeled on the product. This warranty extends only to wholesale customers who buy direct from Linear or through Linear’s normal distribution channels. Linear does not warrant this product to consumers. Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part of Linear Corporation for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation, or reinstallation. All implied warranties, including implied warranties for merchantability and implied warranties for fi tness, are valid only until Warranty Expiration Date as labeled on the product. This Linear Corporation Warranty is in lieu of all other warranties express or implied.

All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA# and other important details.
