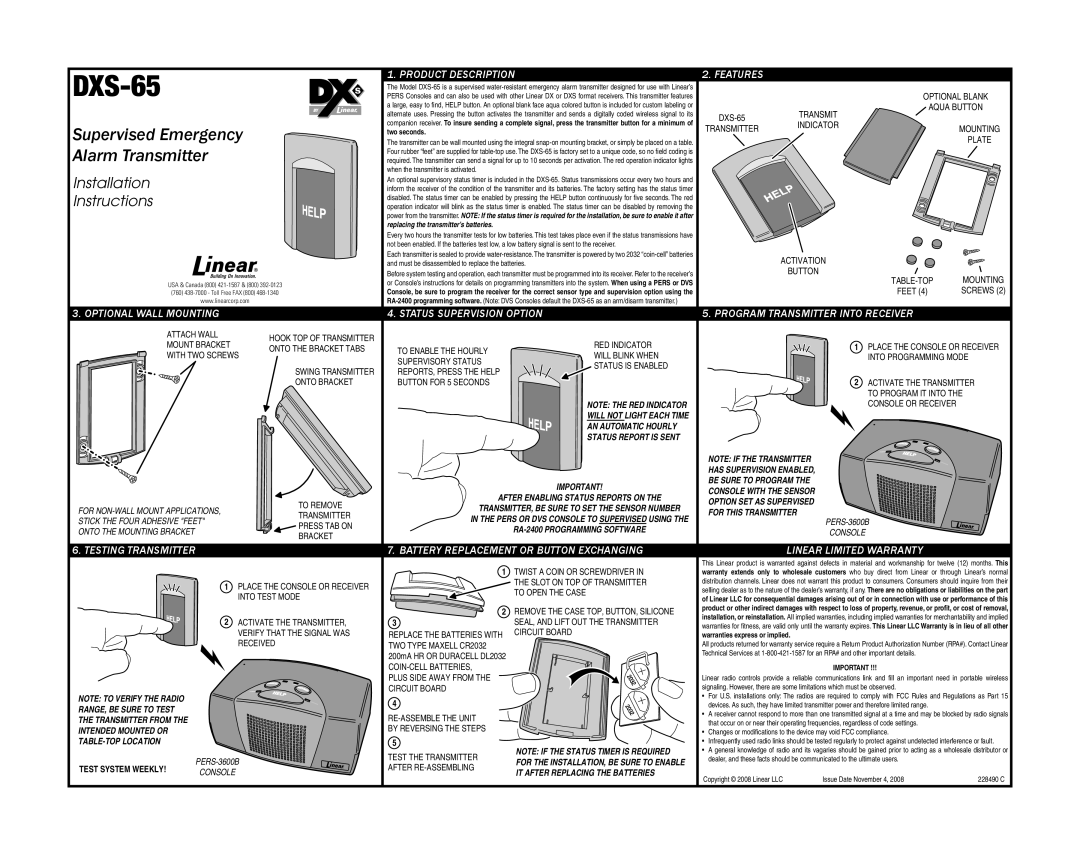

Linear DXS-65 installation instructions Supervised Emergency, Alarm Transmitter, Installation

DXS-65				1. PRODUCT DESCRIPTION		2. FEATURES
				The Model DXS-65 is a supervised water-resistant emergency alarm transmitter designed for use with Linear’s					OPTIONAL BLANK
				PERS Consoles and can also be used with other Linear DX or DXS format receivers. This transmitter features
			BY	a large, easy to find, HELP button. An optional blank face aqua colored button is included for custom labeling or				TRANSMIT		AQUA BUTTON
				alternate uses. Pressing the button activates the transmitter and sends a digitally coded wireless signal to its			DXS-65
				companion receiver. To insure sending a complete signal, press the transmitter button for a minimum of				INDICATOR
Supervised Emergency							TRANSMITTER				MOUNTING
				two seconds.
				The transmitter can be wall mounted using the integral snap-on mounting bracket, or simply be placed on a table.							PLATE
Alarm Transmitter				required. The transmitter can send a signal for up to 10 seconds per activation. The red operation indicator lights
				Four rubber “feet” are supplied for table-top use. The DXS-65 is factory set to a unique code, so no field coding is
Installation				when the transmitter is activated.
				inform the receiver of the condition of the transmitter and its batteries. The factory setting has the status timer
Instructions				An optional supervisory status timer is included in the DXS-65. Status transmissions occur every two hours and
				operation indicator will blink as the status timer is enabled. The status timer can be disabled by removing the
				disabled. The status timer can be enabled by pressing the HELP button continuously for five seconds. The red
				power from the transmitter. NOTE: If the status timer is required for the installation, be sure to enable it after
				replacing the transmitter’s batteries.
				Every two hours the transmitter tests for low batteries. This test takes place even if the status transmissions have
				not been enabled. If the batteries test low, a low battery signal is sent to the receiver.
				Each transmitter is sealed to provide water-resistance. The transmitter is powered by two 2032 “coin-cell” batteries				ACTIVATION
				and must be disassembled to replace the batteries.
				Before system testing and operation, each transmitter must be programmed into its receiver. Refer to the receiver’s				BUTTON	TABLE-TOP		MOUNTING
	USA & Canada (800) 421-1587 & (800) 392-0123			or Console’s instructions for details on programming transmitters into the system. When using a PERS or DVS
	(760) 438-7000 - Toll Free FAX (800) 468-1340			Console, be sure to program the receiver for the correct sensor type and supervision option using the					FEET (4)		SCREWS (2)
	www.linearcorp.com			RA-2400 programming software. (Note: DVS Consoles default the DXS-65 as an arm/disarm transmitter.)
3. OPTIONAL WALL MOUNTING				4. STATUS SUPERVISION OPTION		5. PROGRAM TRANSMITTER INTO RECEIVER
	ATTACH WALL	HOOK TOP OF TRANSMITTER
	MOUNT BRACKET				RED INDICATOR				1 PLACE THE CONSOLE OR RECEIVER
		ONTO THE BRACKET TABS		TO ENABLE THE HOURLY
	WITH TWO SCREWS				WILL BLINK WHEN
				SUPERVISORY STATUS					INTO PROGRAMMING MODE
			SWING TRANSMITTER		STATUS IS ENABLED
				REPORTS, PRESS THE HELP
									2 ACTIVATE THE TRANSMITTER
			ONTO BRACKET	BUTTON FOR 5 SECONDS
									TO PROGRAM IT INTO THE
					NOTE: THE RED INDICATOR				CONSOLE OR RECEIVER
					WILL NOT LIGHT EACH TIME
					AN AUTOMATIC HOURLY
					STATUS REPORT IS SENT
							NOTE: IF THE TRANSMITTER
							HAS SUPERVISION ENABLED,
					IMPORTANT!		BE SURE TO PROGRAM THE
							CONSOLE WITH THE SENSOR
				AFTER ENABLING STATUS REPORTS ON THE
			TO REMOVE				OPTION SET AS SUPERVISED
FOR NON-WALL MOUNT APPLICATIONS,				TRANSMITTER, BE SURE TO SET THE SENSOR NUMBER
							FOR THIS TRANSMITTER
			TRANSMITTER
				IN THE PERS OR DVS CONSOLE TO SUPERVISED USING THE
STICK THE FOUR ADHESIVE "FEET"									PERS-3600B
			PRESS TAB ON
ONTO THE MOUNTING BRACKET					RA-2400 PROGRAMMING SOFTWARE				CONSOLE
			BRACKET
6. TESTING TRANSMITTER				7. BATTERY REPLACEMENT OR BUTTON EXCHANGING				LINEAR LIMITED WARRANTY
				1 TWIST A COIN OR SCREWDRIVER IN		This Linear product is warranted against defects in material and workmanship for twelve (12) months. This
						warranty extends only to wholesale customers who buy direct from Linear or through Linear’s normal
	1 PLACE THE CONSOLE OR RECEIVER				THE SLOT ON TOP OF TRANSMITTER	distribution channels. Linear does not warrant this product to consumers. Consumers should inquire from their
					TO OPEN THE CASE	selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part
	INTO TEST MODE
						of Linear LLC for consequential damages arising out of or in connection with use or performance of this
				2 REMOVE THE CASE TOP, BUTTON, SILICONE		product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal,
	2 ACTIVATE THE TRANSMITTER,					installation, or reinstallation. All implied warranties, including implied warranties for merchantability and implied
				3	SEAL, AND LIFT OUT THE TRANSMITTER
						warranties for fitness, are valid only until the warranty expires. This Linear LLC Warranty is in lieu of all other
	VERIFY THAT THE SIGNAL WAS			REPLACE THE BATTERIES WITH	CIRCUIT BOARD
						warranties express or implied.
	RECEIVED			TWO TYPE MAXELL CR2032		All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Linear
				200mA HR OR DURACELL DL2032		Technical Services at 1-800-421-1587 for an RPA# and other important details.
				COIN-CELL BATTERIES,					IMPORTANT !!!
				PLUS SIDE AWAY FROM THE		Linear radio controls provide a reliable communications link and fill an important need in portable wireless
				CIRCUIT BOARD		signaling. However, there are some limitations which must be observed.
NOTE: TO VERIFY THE RADIO				4		•	For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15
RANGE, BE SURE TO TEST							devices. As such, they have limited transmitter power and therefore limited range.
				RE-ASSEMBLE THE UNIT		•	A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals
THE TRANSMITTER FROM THE
							that occur on or near their operating frequencies, regardless of code settings.
INTENDED MOUNTED OR				BY REVERSING THE STEPS		• Changes or modifications to the device may void FCC compliance.
TABLE-TOP LOCATION				5		• Infrequently used radio links should be tested regularly to protect against undetected interference or fault.
				TEST THE TRANSMITTER	NOTE: IF THE STATUS TIMER IS REQUIRED	•	A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or
	PERS-3600B				FOR THE INSTALLATION, BE SURE TO ENABLE		dealer, and these facts should be communicated to the ultimate users.
TEST SYSTEM WEEKLY!				AFTER RE-ASSEMBLING
	CONSOLE				IT AFTER REPLACING THE BATTERIES
						Copyright © 2008 Linear LLC			Issue Date November 4, 2008		228490 C
