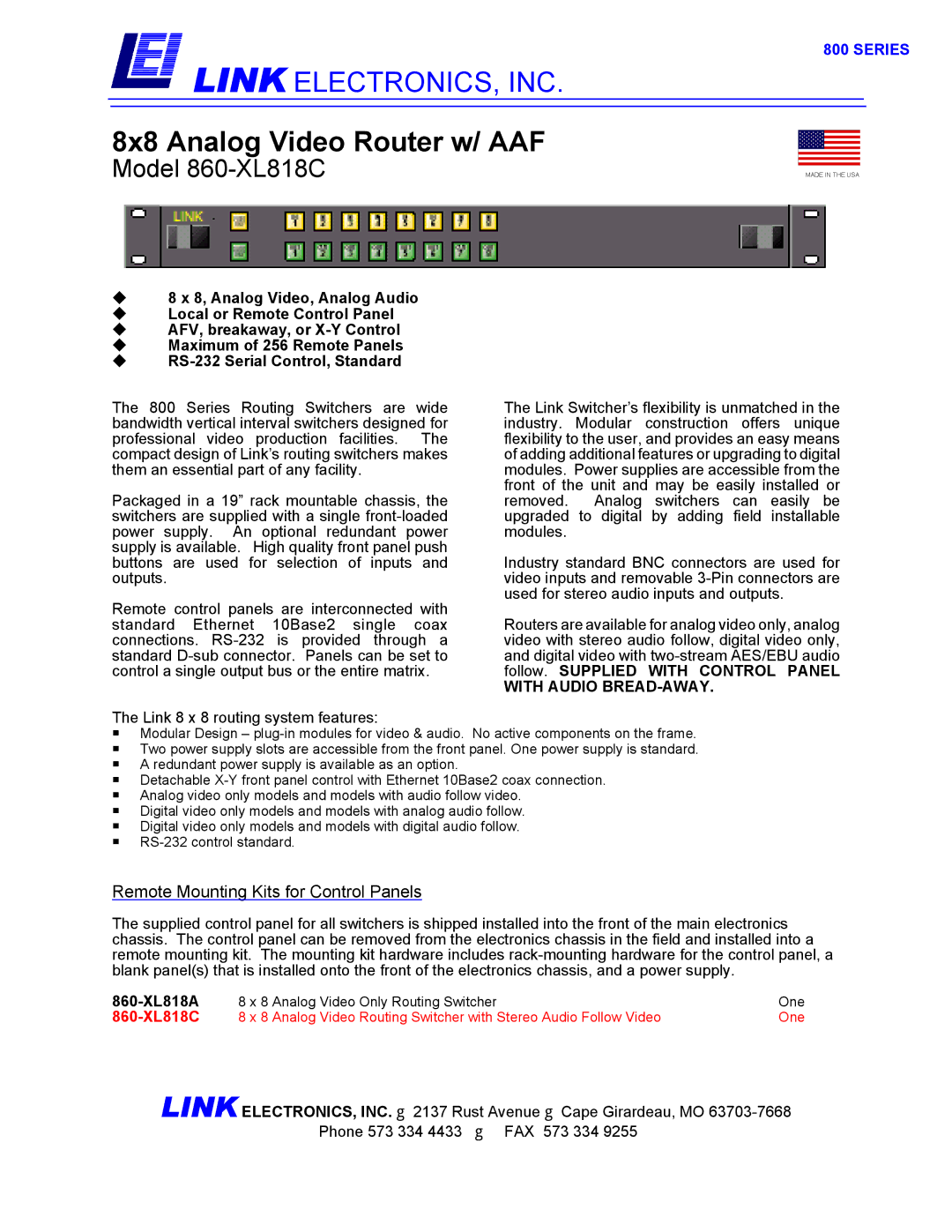

LINK ELECTRONICS, INC.

8x8 Analog Video Router w/ AAF

Model 860-XL818C

800 SERIES

MADE IN THE USA

‹8 x 8, Analog Video, Analog Audio

‹Local or Remote Control Panel

‹AFV, breakaway, or X-Y Control

‹Maximum of 256 Remote Panels

‹RS-232 Serial Control, Standard

The 800 Series Routing Switchers are wide bandwidth vertical interval switchers designed for professional video production facilities. The compact design of Link’s routing switchers makes them an essential part of any facility.

Packaged in a 19” rack mountable chassis, the switchers are supplied with a single front-loaded power supply. An optional redundant power supply is available. High quality front panel push buttons are used for selection of inputs and outputs.

Remote control panels are interconnected with standard Ethernet 10Base2 single coax connections. RS-232 is provided through a standard D-sub connector. Panels can be set to control a single output bus or the entire matrix.

The Link 8 x 8 routing system features:

The Link Switcher’s flexibility is unmatched in the industry. Modular construction offers unique flexibility to the user, and provides an easy means of adding additional features or upgrading to digital modules. Power supplies are accessible from the front of the unit and may be easily installed or removed. Analog switchers can easily be upgraded to digital by adding field installable modules.

Industry standard BNC connectors are used for video inputs and removable 3-Pin connectors are used for stereo audio inputs and outputs.

Routers are available for analog video only, analog video with stereo audio follow, digital video only, and digital video with two-stream AES/EBU audio follow. SUPPLIED WITH CONTROL PANEL

WITH AUDIO BREAD-AWAY.

PModular Design – plug-in modules for video & audio. No active components on the frame. P Two power supply slots are accessible from the front panel. One power supply is standard. P A redundant power supply is available as an option.

P Detachable X-Y front panel control with Ethernet 10Base2 coax connection. P Analog video only models and models with audio follow video.

P Digital video only models and models with analog audio follow. P Digital video only models and models with digital audio follow. P RS-232 control standard.

Remote Mounting Kits for Control Panels

The supplied control panel for all switchers is shipped installed into the front of the main electronics chassis. The control panel can be removed from the electronics chassis in the field and installed into a remote mounting kit. The mounting kit hardware includes rack-mounting hardware for the control panel, a blank panel(s) that is installed onto the front of the electronics chassis, and a power supply.

860-XL818A

8 x 8

Analog Video Only Routing Switcher

One

860-XL818C

8 x 8

Analog Video Routing Switcher with Stereo Audio Follow Video

One

LINK ELECTRONICS, INC. g 2137 Rust Avenue g Cape Girardeau, MO 63703-7668

Phone 573 334 4433 g FAX 573 334 9255

Page 1
Image 1
Link electronic 860-XL818C manual 8x8 Analog Video Router w/ AAF, Series

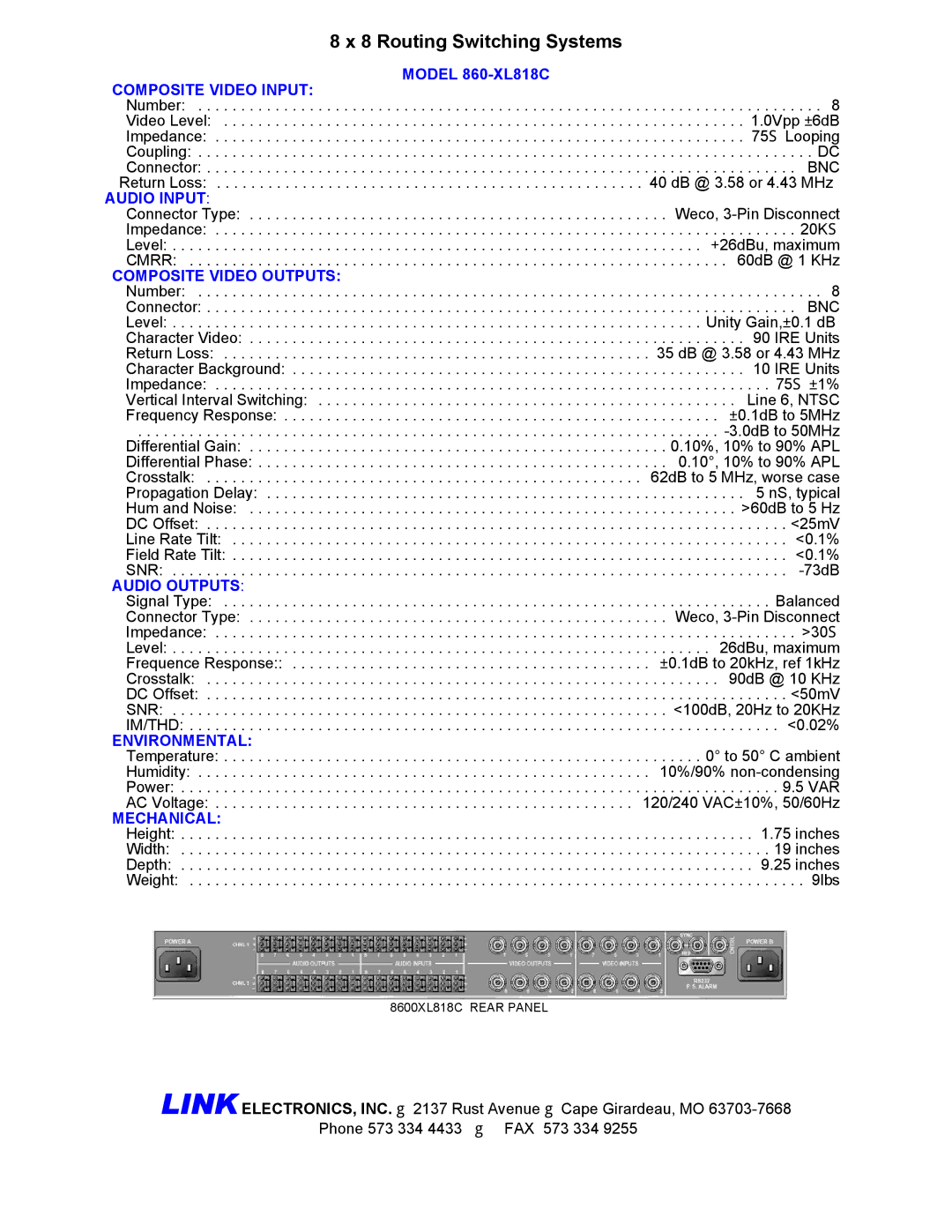

860-XL818C specifications
