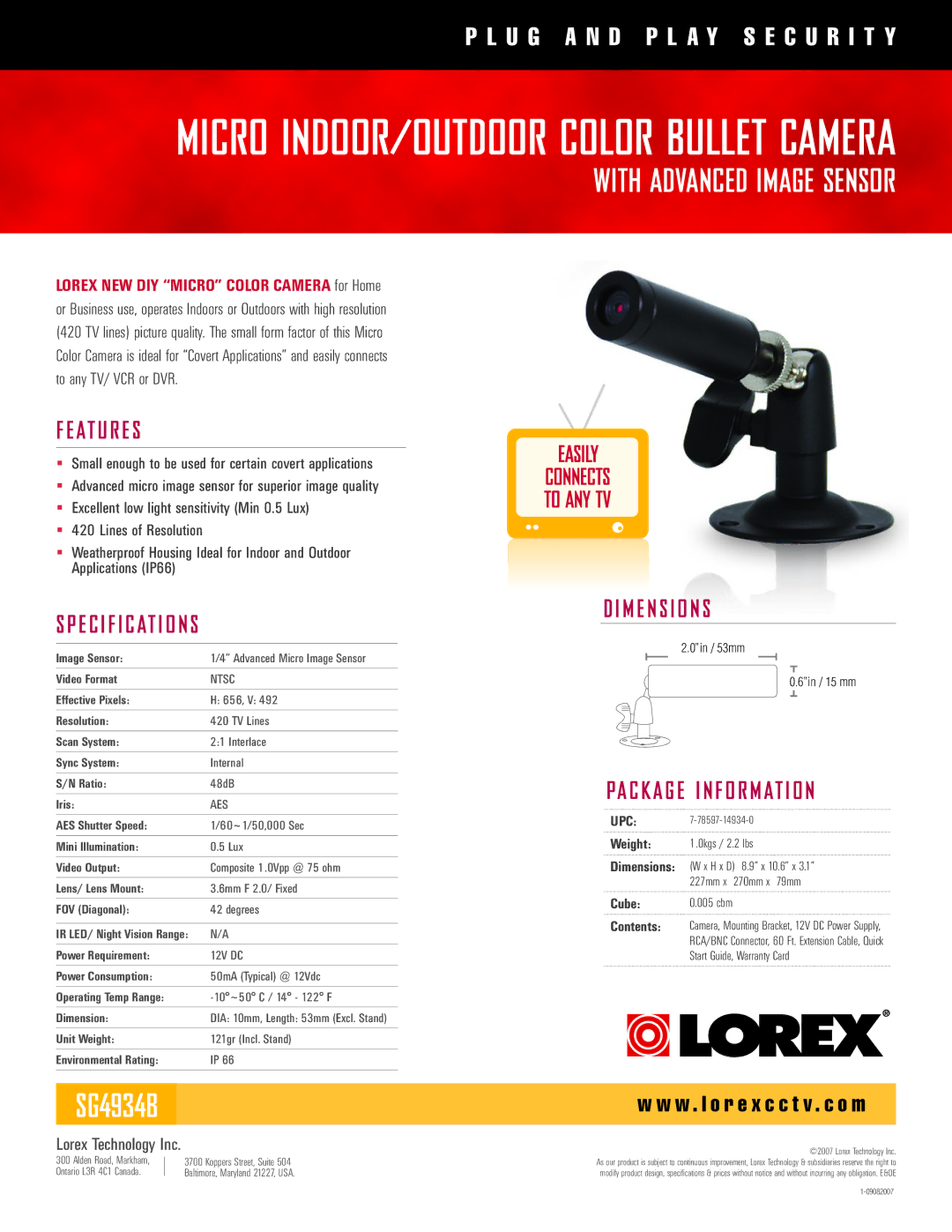

P L U G A N D P L A Y S E C U R I T Y
MICRO INDOOR/OUTDOOR COLOR BULLET CAMERA
WITH ADVANCED IMAGE SENSOR
Lorex new DIY “Micro” Color Camera for Home or Business use, operates Indoors or Outdoors with high resolution (420 TV lines) picture quality. The small form factor of this Micro Color Camera is ideal for “Covert Applications” and easily connects to any TV/ VCR or DVR.
F E AT U R E S
ßSmall enough to be used for certain covert applications
ßAdvanced micro image sensor for superior image quality
ßExcellent low light sensitivity (Min 0.5 Lux)
ß420 Lines of Resolution
ßWeatherproof Housing Ideal for Indoor and Outdoor Applications (IP66)
S p e c i f i c at i o n s
Image Sensor: | 1/4” Advanced Micro Image Sensor |
|
|
Video Format | NTSC |
|
|
Effective Pixels: | H: 656, V: 492 |
|
|
Resolution: | 420 TV Lines |
|
|
Scan System: | 2:1 Interlace |
|
|
Sync System: | Internal |
|
|
S/N Ratio: | 48dB |
|
|
Iris: | AES |
|
|
AES Shutter Speed: | 1/60~1/50,000 Sec |
|
|
Mini Illumination: | 0.5 Lux |
|
|
Video Output: | Composite 1.0Vpp @ 75 ohm |
|
|
Lens/ Lens Mount: | 3.6mm F 2.0/ Fixed |
|
|
FOV (Diagonal): | 42 degrees |
|
|
IR LED/ Night Vision Range: | N/A |
|
|
Power Requirement: | 12V DC |
|
|
Power Consumption: | 50mA (Typical) @ 12Vdc |
|
|
Operating Temp Range: | |
|
|
Dimension: | DIA: 10mm, Length: 53mm (Excl. Stand) |
|
|
Unit Weight: | 121gr (Incl. Stand) |
|
|
Environmental Rating: | IP 66 |
|
|
SG4934B
Lorex Technology Inc.
300 Alden Road, Markham, |
| 3700 Koppers Street, Suite 504 |
| ||
Ontario L3R 4C1 Canada. |
| Baltimore, Maryland 21227, USA. |
|
d i m e n s i o n s
2.0”in / 53mm
0.6”in / 15 mm
pa c k a g e I n f o r m at i o n
UPC: | |
Weight: | 1 .0kgs / 2.2 lbs |
Dimensions: | (W x H x D) 8.9” x 10.6” x 3.1” |
| 227mm x 270mm x 79mm |
Cube: | 0.005 cbm |
Contents: | Camera, Mounting Bracket, 12V DC Power Supply, |
| RCA/BNC Connector, 60 Ft. Extension Cable, Quick |
| Start Guide, Warranty Card |
w w w . l o r e x c c t v . c o m
©2007 Lorex Technology Inc. As our product is subject to continuous improvement, Lorex Technology & subsidiaries reserve the right to modify product design, specifications & prices without notice and without incurring any obligation. E&OE
