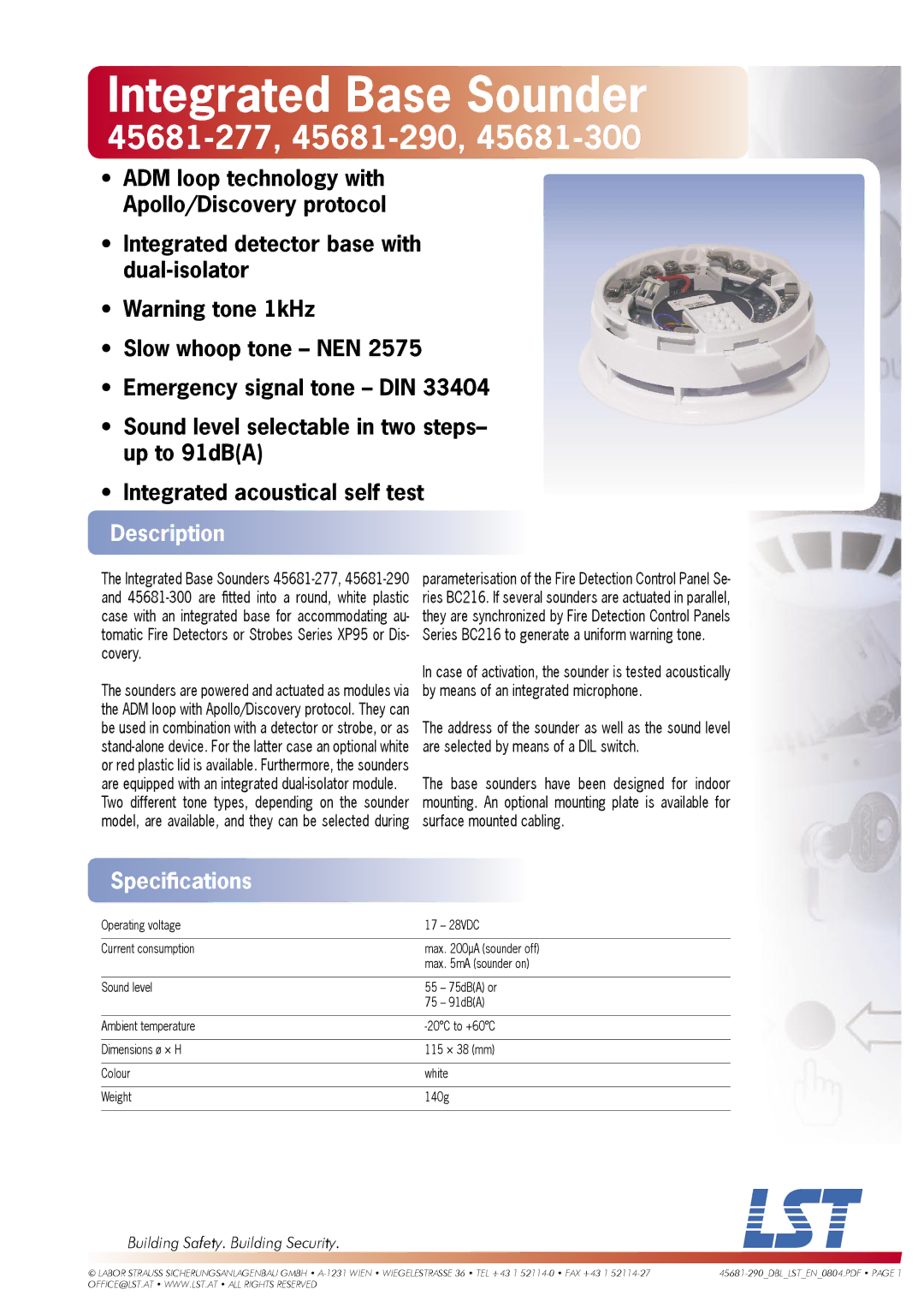

Integrated Base Sounder

45681-277, 45681-290, 45681-300

ADM loop technology with Apollo/Discovery protocol

Integrated detector base with dual-isolator

Warning tone 1kHz

Slow whoop tone – NEN 2575

Emergency signal tone – DIN 33404

Sound level selectable in two steps– up to 91dB(A)

Integrated acoustical self test Description

The Integrated Base Sounders 45681-277, 45681-290 and 45681-300 are fi tted into a round, white plastic case with an integrated base for accommodating au- tomatic Fire Detectors or Strobes Series XP95 or Dis- covery.

The sounders are powered and actuated as modules via the ADM loop with Apollo/Discovery protocol. They can be used in combination with a detector or strobe, or as stand-alone device. For the latter case an optional white or red plastic lid is available. Furthermore, the sounders are equipped with an integrated dual-isolator module.

Two different tone types, depending on the sounder model, are available, and they can be selected during

parameterisation of the Fire Detection Control Panel Se- ries BC216. If several sounders are actuated in parallel, they are synchronized by Fire Detection Control Panels Series BC216 to generate a uniform warning tone.

In case of activation, the sounder is tested acoustically by means of an integrated microphone.

The address of the sounder as well as the sound level are selected by means of a DIL switch.

The base sounders have been designed for indoor mounting. An optional mounting plate is available for surface mounted cabling.

Specifications

Operating voltage

17

– 28VDC

Current consumption

max. 200µA (sounder off)



max. 5mA (sounder on)

Sound level

55

– 75dB(A) or



75

– 91dB(A)

Ambient temperature

-20°C to +60°C

Dimensions ø × H

115 × 38 (mm)

Colour

white

Weight

140g

Building Safety. Building Security.

A

© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27

45681-290_DBL_LST_EN_0804.PDF • PAGE 1

OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
