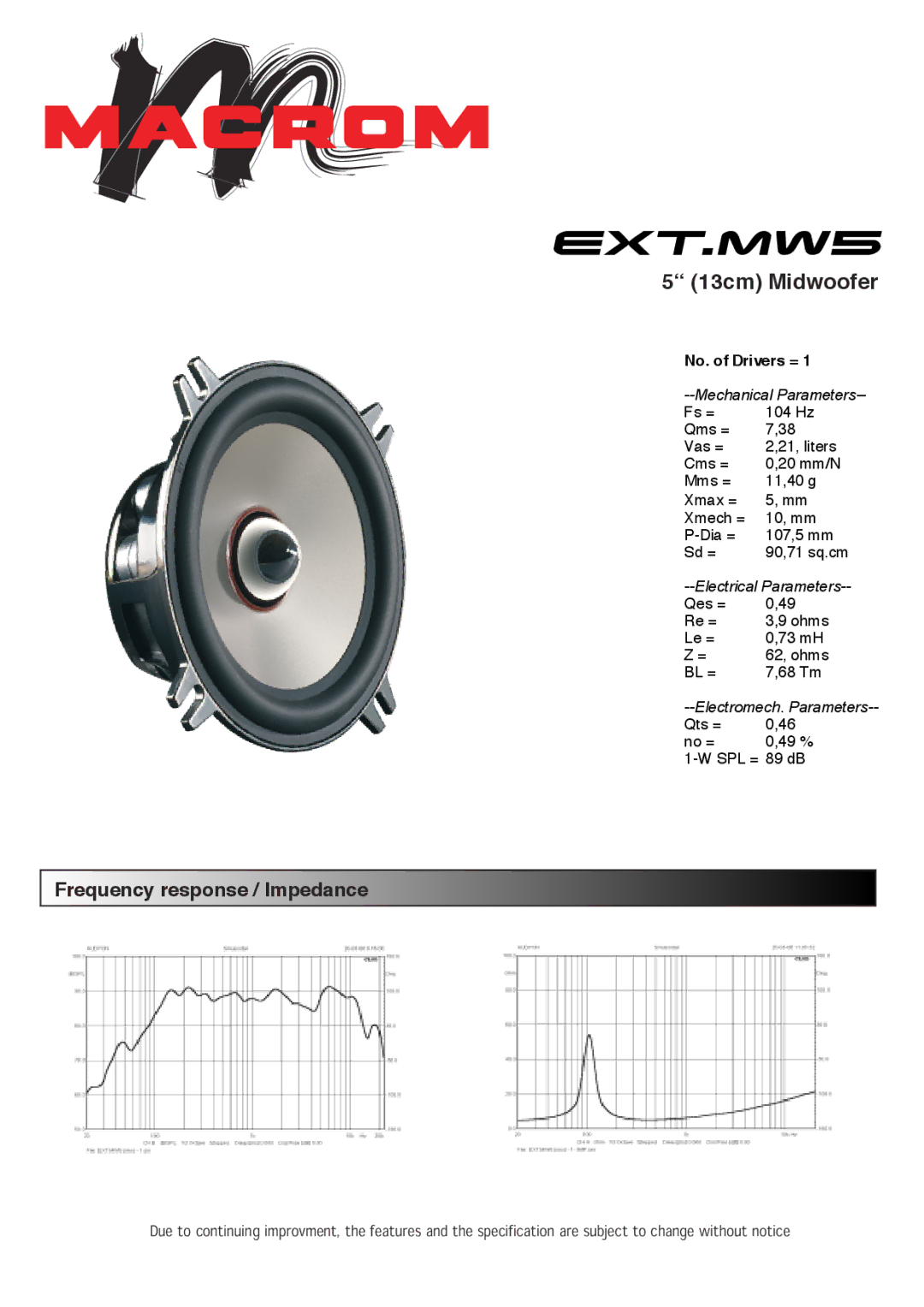

EXT.MW5

5“ (13cm) Midwoofer

No. of Drivers = 1

--Mechanical Parameters--

Fs =	104 Hz
Qms =	7,38
Vas =	2,21, liters
Cms =	0,20 mm/N
Mms =	11,40 g
Xmax =	5, mm
Xmech =	10, mm
P-Dia =	107,5 mm
Sd =	90,71 sq.cm
--Electrical Parameters--
Qes =	0,49
Re =	3,9 ohms
Le =	0,73 mH
Z =	62, ohms
BL =	7,68 Tm
--Electromech. Parameters--
Qts =	0,46
no =	0,49 %

1-W SPL = 89 dB

Frequency response / Impedance

Due to continuing improvment, the features and the specification are subject to change without notice
