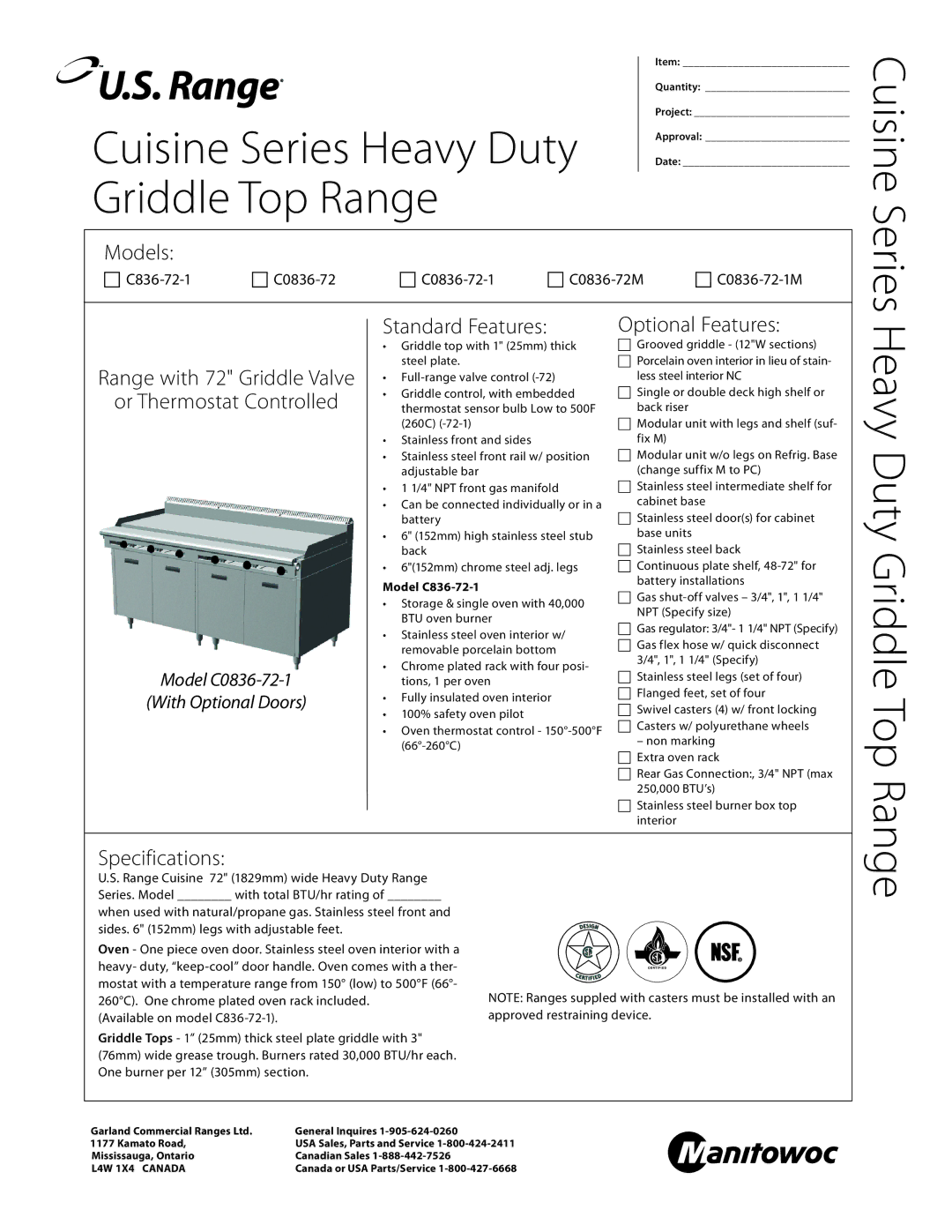

Manitowoc Ice C0836-72M specifications Cuisine, Range with 72 Griddle Valve,  C836-72-1, Series

Cuisine Series Heavy Duty Griddle Top Range

Item: ______________________________

Quantity:_ __________________________

Project:_____________________________

Approval:___________________________

Date:_______________________________

Cuisine

Models:

 C836-72-1  C0836-72  C0836-72-1  C0836-72M  C0836-72-1M

Series

Range with 72" Griddle Valve

or Thermostat ControlledModel C0836-72-1

(With Optional Doors)

Standard Features:

•Griddle top with 1" (25mm) thick steel plate.

•Full-range valve control (-72)

•Griddle control, with embedded thermostat sensor bulb Low to 500F (260C) (-72-1)

•Stainless front and sides

•Stainless steel front rail w/ position adjustable bar

•1 1/4" NPT front gas manifold

•Can be connected individually or in a battery

•6" (152mm) high stainless steel stub back

•6"(152mm) chrome steel adj. legs

Model C836-72-1

•Storage & single oven with 40,000 BTU oven burner

•Stainless steel oven interior w/ removable porcelain bottom

•Chrome plated rack with four posi- tions, 1 per oven

•Fully insulated oven interior

•100% safety oven pilot

•Oven thermostat control - 150°-500°F (66°-260°C)

Optional Features:

Grooved griddle - (12"W sections)

Porcelain oven interior in lieu of stain- less steel interior NC

Single or double deck high shelf or back riser

Modular unit with legs and shelf (suf- fix M)

Modular unit w/o legs on Refrig. Base (change suffix M to PC)

Stainless steel intermediate shelf for cabinet base

Stainless steel door(s) for cabinet base units

Stainless steel back

Continuous plate shelf, 48-72" for battery installations

Gas shut-off valves – 3/4", 1", 1 1/4" NPT (Specify size)

Gas regulator: 3/4"- 1 1/4" NPT (Specify)

Gas flex hose w/ quick disconnect 3/4", 1", 1 1/4" (Specify)

Stainless steel legs (set of four)

Flanged feet, set of four

Swivel casters (4) w/ front locking

Casters w/ polyurethane wheels

– non marking

Extra oven rack

Rear Gas Connection:, 3/4" NPT (max 250,000 BTU’s)

Stainless steel burner box top interior

Heavy Duty Griddle Top Range

Specifications:

U.S. Range Cuisine 72" (1829mm) wide Heavy Duty Range Series. Model ________ with total BTU/hr rating of ________

when used with natural/propane gas. Stainless steel front and sides. 6" (152mm) legs with adjustable feet.

Oven - One piece oven door. Stainless steel oven interior with a heavy- duty, “keep-cool” door handle. Oven comes with a ther- mostat with a temperature range from 150° (low) to 500°F (66°- 260°C). One chrome plated oven rack included.

(Available on model C836-72-1).

Griddle Tops - 1” (25mm) thick steel plate griddle with 3" (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12” (305mm) section.

NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Garland Commercial Ranges Ltd.	General Inquires 1-905-624-0260
1177 Kamato Road,	USA Sales, Parts and Service 1-800-424-2411
Mississauga, Ontario	Canadian Sales 1-888-442-7526
L4W 1X4 CANADA	Canada or USA Parts/Service 1-800-427-6668
