Use only R-402B as

FOR MODELS

GR-0400A GR-0401W GR-0490N GD-0402A GD-0403W GD-0492N GY-0404A GD-0405W GY-0494N

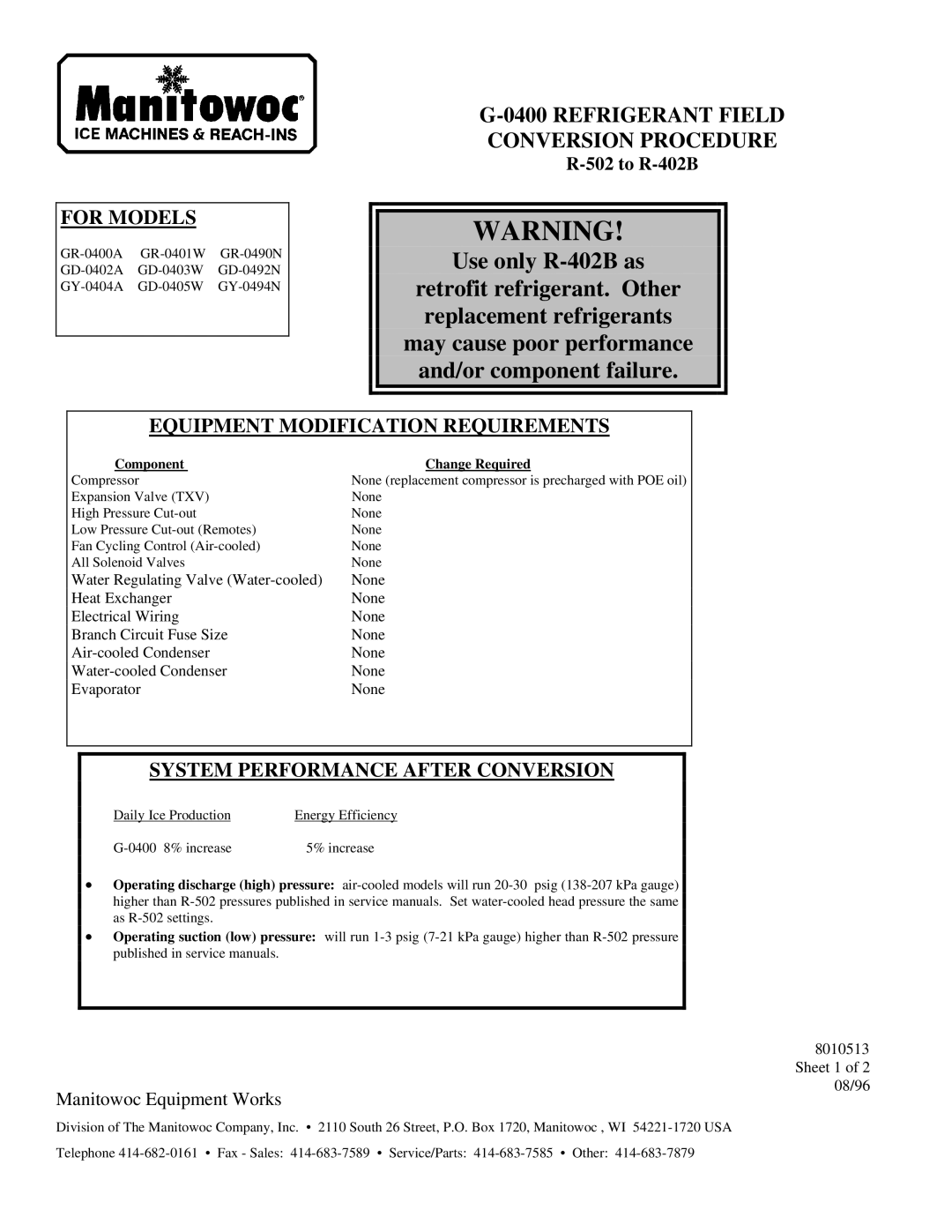

G-0400 REFRIGERANT FIELD CONVERSION PROCEDURE

R-502 to R-402B

WARNING!

retrofit refrigerant. Other replacement refrigerants may cause poor performance and/or component failure.

EQUIPMENT MODIFICATION REQUIREMENTS

Component	Change Required
Compressor	None (replacement compressor is precharged with POE oil)
Expansion Valve (TXV)	None
High Pressure Cut-out	None
Low Pressure Cut-out (Remotes)	None
Fan Cycling Control (Air-cooled)	None
All Solenoid Valves	None
Water Regulating Valve (Water-cooled)	None
Heat Exchanger	None
Electrical Wiring	None
Branch Circuit Fuse Size	None
Air-cooled Condenser	None
Water-cooled Condenser	None
Evaporator	None

SYSTEM PERFORMANCE AFTER CONVERSION

Daily Ice Production	Energy Efficiency
G-0400 8% increase	5% increase

Operating discharge (high) pressure: air-cooled models will run 20-30 psig (138-207 kPa gauge) higher than R-502 pressures published in service manuals. Set water-cooled head pressure the same as R-502 settings.

Operating suction (low) pressure: will run 1-3 psig (7-21 kPa gauge) higher than R-502 pressure published in service manuals.

Manitowoc Equipment Works

8010513 Sheet 1 of 2 08/96

Division of The Manitowoc Company, Inc. • 2110 South 26 Street, P.O. Box 1720, Manitowoc , WI 54221-1720 USA Telephone 414-682-0161 • Fax - Sales: 414-683-7589 • Service/Parts: 414-683-7585 • Other: 414-683-7879
