Marshall Electronics

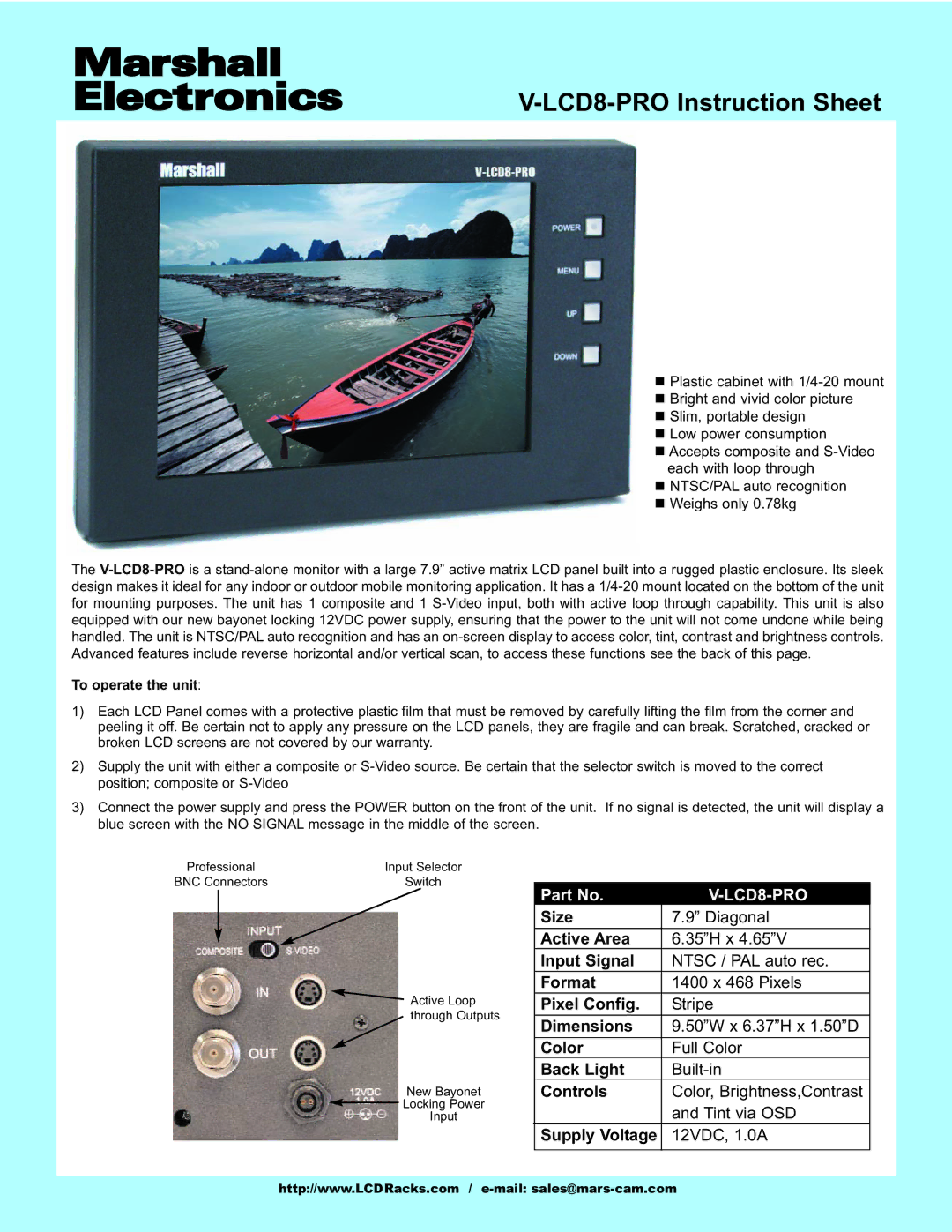

V-LCD8-PRO Instruction Sheet

￿ Plastic cabinet with 1/4-20 mount ￿ Bright and vivid color picture

￿ Slim, portable design ￿ Low power consumption

￿ Accepts composite and S-Video each with loop through

￿ NTSC/PAL auto recognition ￿ Weighs only 0.78kg

The V-LCD8-PROis a stand-alone monitor with a large 7.9” active matrix LCD panel built into a rugged plastic enclosure. Its sleek design makes it ideal for any indoor or outdoor mobile monitoring application. It has a 1/4-20 mount located on the bottom of the unit for mounting purposes. The unit has 1 composite and 1 S-Video input, both with active loop through capability. This unit is also equipped with our new bayonet locking 12VDC power supply, ensuring that the power to the unit will not come undone while being handled. The unit is NTSC/PAL auto recognition and has an on-screen display to access color, tint, contrast and brightness controls. Advanced features include reverse horizontal and/or vertical scan, to access these functions see the back of this page.

To operate the unit:

1)Each LCD Panel comes with a protective plastic film that must be removed by carefully lifting the film from the corner and peeling it off. Be certain not to apply any pressure on the LCD panels, they are fragile and can break. Scratched, cracked or broken LCD screens are not covered by our warranty.

2)Supply the unit with either a composite or S-Video source. Be certain that the selector switch is moved to the correct position; composite or S-Video

3)Connect the power supply and press the POWER button on the front of the unit. If no signal is detected, the unit will display a blue screen with the NO SIGNAL message in the middle of the screen.

Professional	Input Selector
BNC Connectors	Switch

Active Loop through Outputs

New Bayonet

Locking Power

Input

Part No.	V-LCD8-PRO
Size	7.9” Diagonal
Active Area	6.35”H x 4.65”V
Input Signal	NTSC / PAL auto rec.
Format	1400 x 468 Pixels
Pixel Config.	Stripe
Dimensions	9.50”W x 6.37”H x 1.50”D
Color	Full Color
Back Light	Built-in
Controls	Color, Brightness,Contrast
	and Tint via OSD
Supply Voltage	12VDC, 1.0A
