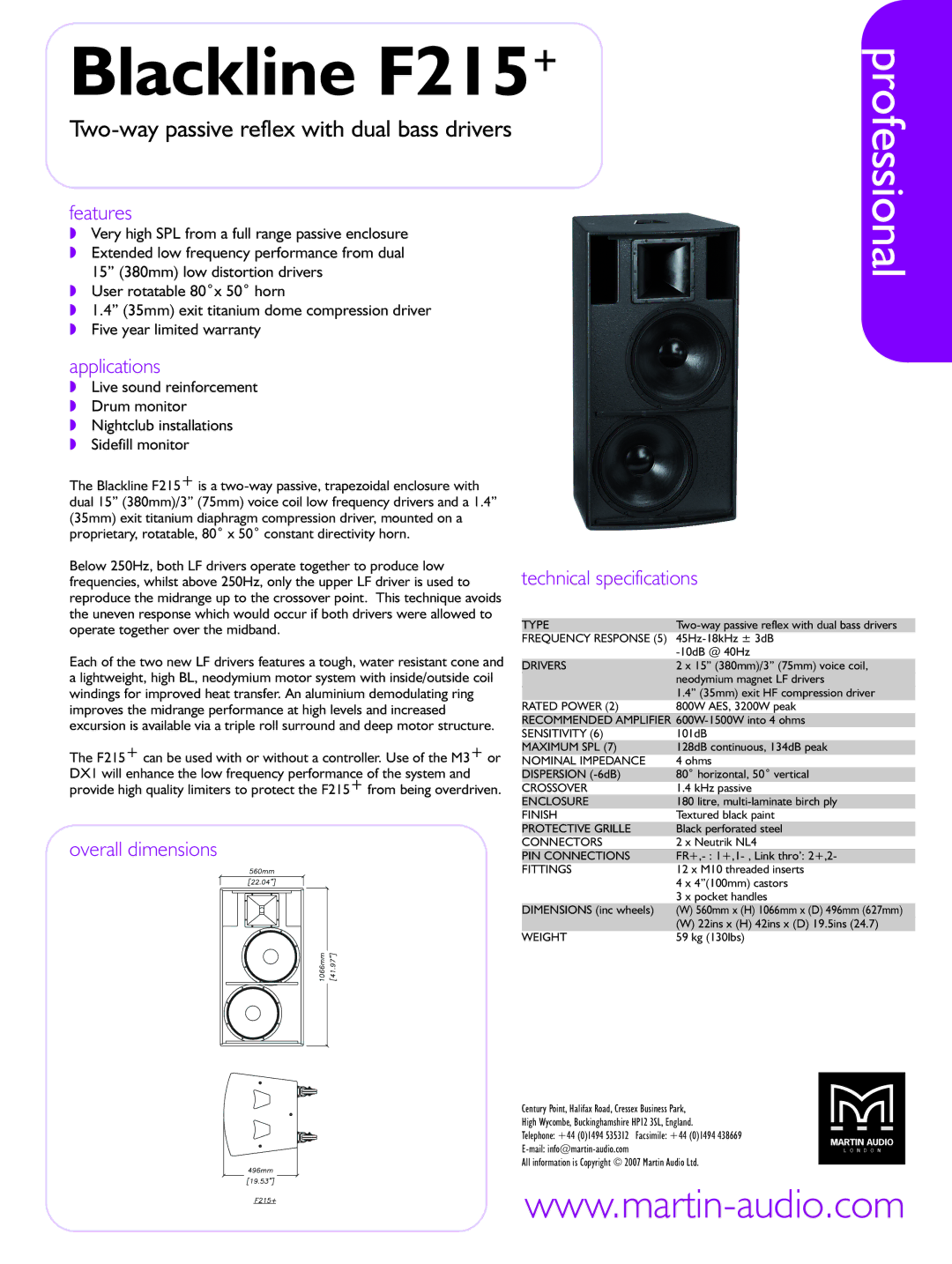

Blackline F215+
Two-way passive reflex with dual bass drivers
features
◗Very high SPL from a full range passive enclosure
◗Extended low frequency performance from dual 15” (380mm) low distortion drivers
◗User rotatable 80˚x 50˚ horn
◗1.4” (35mm) exit titanium dome compression driver
◗Five year limited warranty
applications
◗Live sound reinforcement
◗Drum monitor
◗Nightclub installations
◗Sidefill monitor
professional
The Blackline F215+ is a
Below 250Hz, both LF drivers operate together to produce low frequencies, whilst above 250Hz, only the upper LF driver is used to reproduce the midrange up to the crossover point. This technique avoids the uneven response which would occur if both drivers were allowed to operate together over the midband.
Each of the two new LF drivers features a tough, water resistant cone and a lightweight, high BL, neodymium motor system with inside/outside coil windings for improved heat transfer. An aluminium demodulating ring improves the midrange performance at high levels and increased excursion is available via a triple roll surround and deep motor structure.
The F215+ can be used with or without a controller. Use of the M3+ or DX1 will enhance the low frequency performance of the system and provide high quality limiters to protect the F215+ from being overdriven.
overall dimensions
technical specifications
TYPE | |
FREQUENCY RESPONSE (5) | |
| |
DRIVERS | 2 x 15” (380mm)/3” (75mm) voice coil, |
| neodymium magnet LF drivers |
| 1.4” (35mm) exit HF compression driver |
RATED POWER (2) | 800W AES, 3200W peak |
RECOMMENDED AMPLIFIER | |
SENSITIVITY (6) | 101dB |
MAXIMUM SPL (7) | 128dB continuous, 134dB peak |
NOMINAL IMPEDANCE | 4 ohms |
DISPERSION | 80˚ horizontal, 50˚ vertical |
CROSSOVER | 1.4 kHz passive |
ENCLOSURE | 180 litre, |
FINISH | Textured black paint |
PROTECTIVE GRILLE | Black perforated steel |
CONNECTORS | 2 x Neutrik NL4 |
PIN CONNECTIONS | |
FITTINGS | 12 x M10 threaded inserts |
| 4 x 4”(100mm) castors |
| 3 x pocket handles |
DIMENSIONS (inc wheels) | (W) 560mm x (H) 1066mm x (D) 496mm (627mm) |
| (W) 22ins x (H) 42ins x (D) 19.5ins (24.7) |
WEIGHT | 59 kg (130lbs) |
