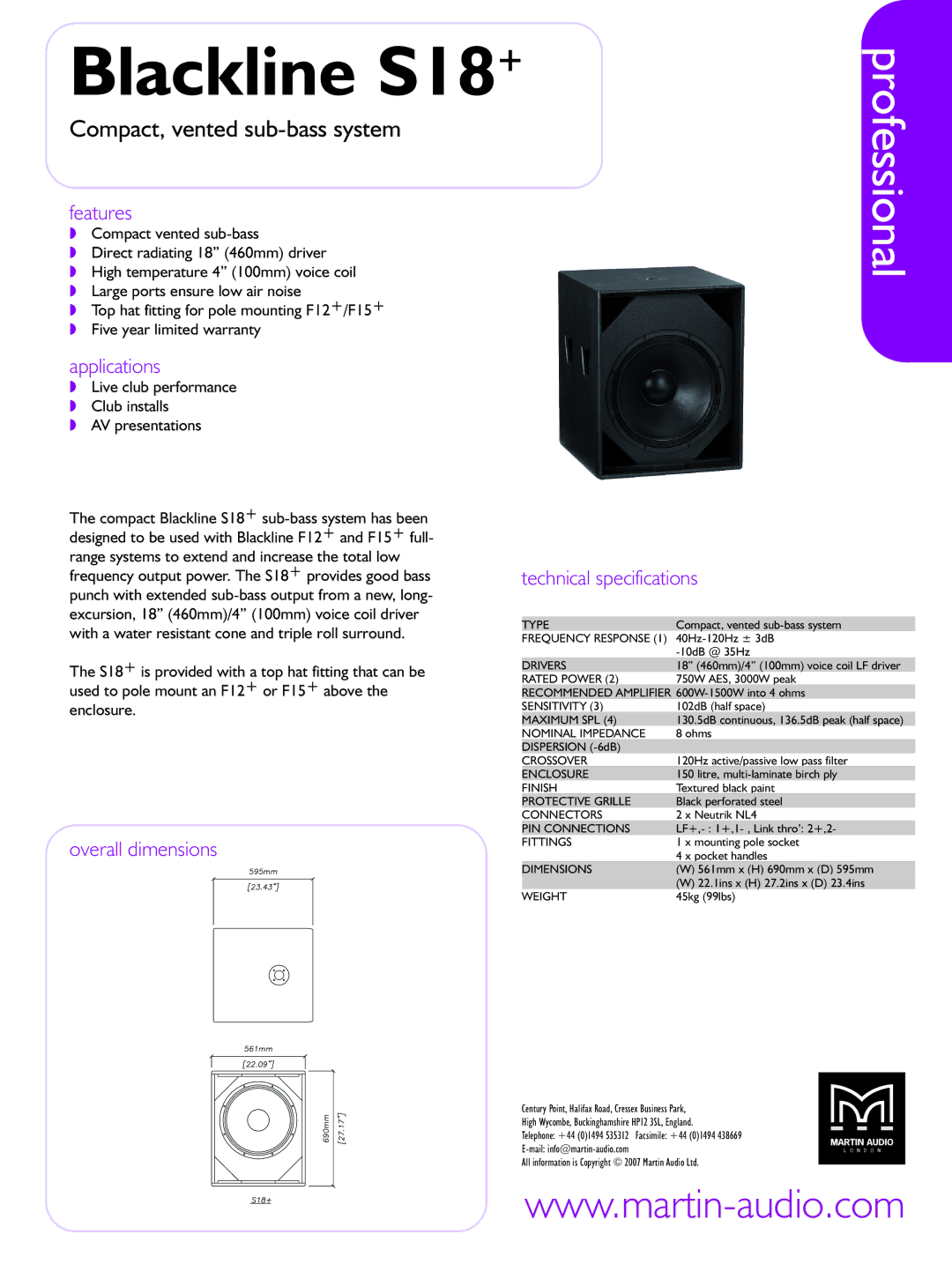

Blackline S18+

Compact, vented sub-bass system

features

◗Compact vented sub-bass

◗Direct radiating 18” (460mm) driver

◗High temperature 4” (100mm) voice coil

◗Large ports ensure low air noise

◗Top hat fitting for pole mounting F12+/F15+

◗Five year limited warranty

professional

applications

◗Live club performance

◗Club installs

◗AV presentations

The compact Blackline S18+ sub-bass system has been designed to be used with Blackline F12+ and F15+ full- range systems to extend and increase the total low frequency output power. The S18+ provides good bass punch with extended sub-bass output from a new, long- excursion, 18” (460mm)/4” (100mm) voice coil driver with a water resistant cone and triple roll surround.

The S18+ is provided with a top hat fitting that can be used to pole mount an F12+ or F15+ above the enclosure.

overall dimensions

technical specifications

TYPE	Compact, vented sub-bass system
FREQUENCY RESPONSE (1)	40Hz-120Hz ± 3dB
	-10dB @ 35Hz
DRIVERS	18” (460mm)/4” (100mm) voice coil LF driver
RATED POWER (2)	750W AES, 3000W peak
RECOMMENDED AMPLIFIER 600W-1500W into 4 ohms
SENSITIVITY (3)	102dB (half space)
MAXIMUM SPL (4)	130.5dB continuous, 136.5dB peak (half space)
NOMINAL IMPEDANCE	8 ohms
DISPERSION (-6dB)
CROSSOVER	120Hz active/passive low pass filter
ENCLOSURE	150 litre, multi-laminate birch ply
FINISH	Textured black paint
PROTECTIVE GRILLE	Black perforated steel
CONNECTORS	2 x Neutrik NL4
PIN CONNECTIONS	LF+,- : 1+,1- , Link thro’: 2+,2-
FITTINGS	1 x mounting pole socket
	4 x pocket handles
DIMENSIONS	(W) 561mm x (H) 690mm x (D) 595mm
	(W) 22.1ins x (H) 27.2ins x (D) 23.4ins
WEIGHT	45kg (99lbs)
