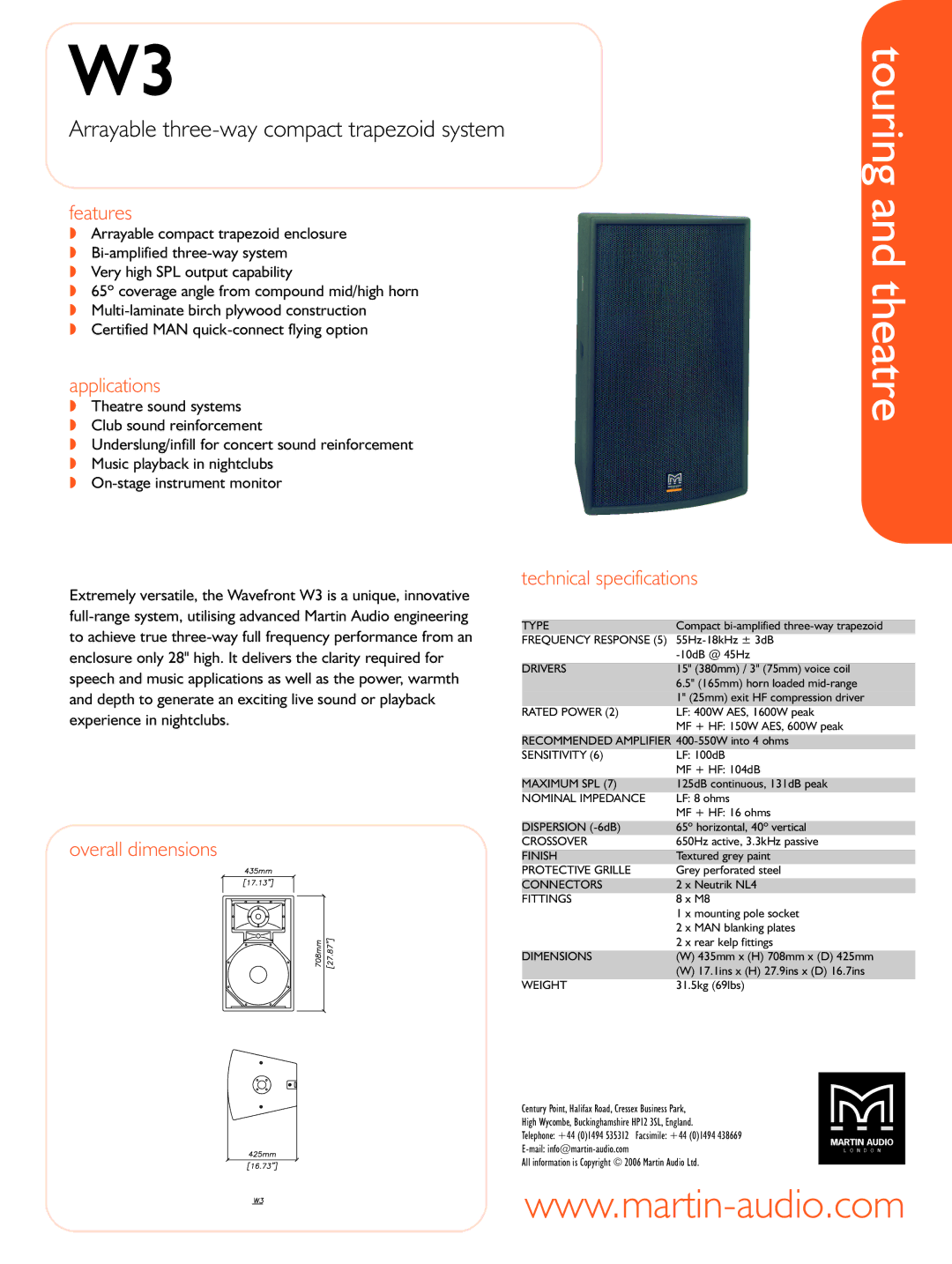

W3

Arrayable three-way compact trapezoid system

features

◗Arrayable compact trapezoid enclosure

◗Bi-amplified three-way system

◗Very high SPL output capability

◗65º coverage angle from compound mid/high horn

◗Multi-laminate birch plywood construction

◗Certified MAN quick-connect flying option

applications

◗Theatre sound systems

◗Club sound reinforcement

◗Underslung/infill for concert sound reinforcement

◗Music playback in nightclubs

◗On-stage instrument monitor

Extremely versatile, the Wavefront W3 is a unique, innovative full-range system, utilising advanced Martin Audio engineering to achieve true three-way full frequency performance from an enclosure only 28" high. It delivers the clarity required for speech and music applications as well as the power, warmth and depth to generate an exciting live sound or playback experience in nightclubs.

overall dimensions

touring and theatre

technical specifications

TYPE	Compact bi-amplified three-way trapezoid
FREQUENCY RESPONSE (5)	55Hz-18kHz ± 3dB
	-10dB @ 45Hz
DRIVERS	15" (380mm) / 3" (75mm) voice coil
	6.5" (165mm) horn loaded mid-range
	1" (25mm) exit HF compression driver
RATED POWER (2)	LF: 400W AES, 1600W peak
	MF + HF: 150W AES, 600W peak
RECOMMENDED AMPLIFIER 400-550W into 4 ohms
SENSITIVITY (6)	LF: 100dB
	MF + HF: 104dB
MAXIMUM SPL (7)	125dB continuous, 131dB peak
NOMINAL IMPEDANCE	LF: 8 ohms
	MF + HF: 16 ohms
DISPERSION (-6dB)	65º horizontal, 40º vertical
CROSSOVER	650Hz active, 3.3kHz passive
FINISH	Textured grey paint
PROTECTIVE GRILLE	Grey perforated steel
CONNECTORS	2 x Neutrik NL4
FITTINGS	8 x M8
	1 x mounting pole socket
	2 x MAN blanking plates
	2 x rear kelp fittings
DIMENSIONS	(W) 435mm x (H) 708mm x (D) 425mm
	(W) 17.1ins x (H) 27.9ins x (D) 16.7ins
WEIGHT	31.5kg (69lbs)
