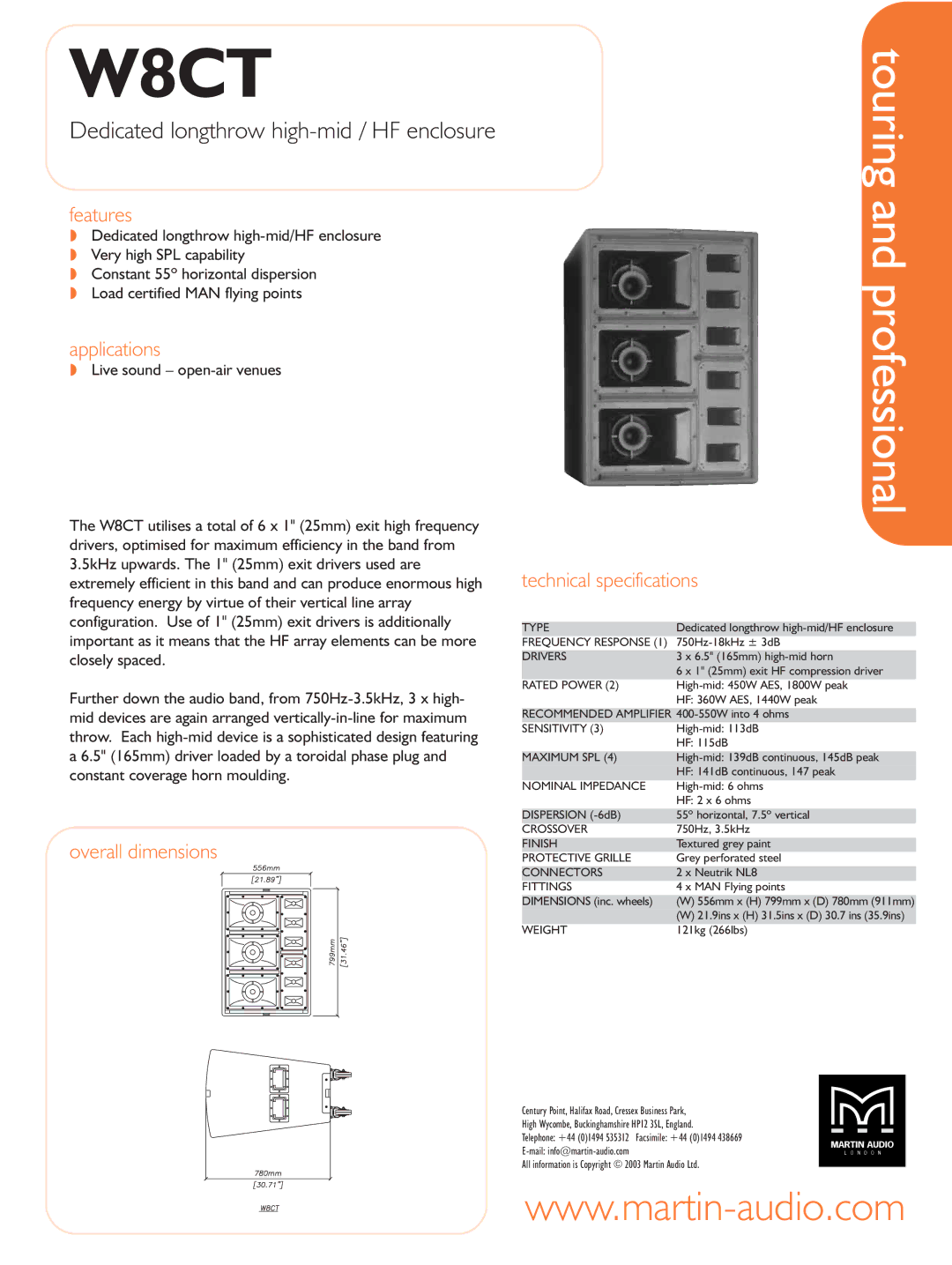

Martin Audio W8CT technical specifications Features, Applications, Overall dimensions

W8CT

Dedicated longthrow high-mid / HF enclosure

features

!Dedicated longthrow high-mid/HF enclosure

!Very high SPL capability

!Constant 55º horizontal dispersion

!Load certified MAN flying points

applications

!Live sound – open-air venues

The W8CT utilises a total of 6 x 1" (25mm) exit high frequency drivers, optimised for maximum efficiency in the band from 3.5kHz upwards. The 1" (25mm) exit drivers used are extremely efficient in this band and can produce enormous high frequency energy by virtue of their vertical line array configuration. Use of 1" (25mm) exit drivers is additionally important as it means that the HF array elements can be more closely spaced.

Further down the audio band, from 750Hz-3.5kHz, 3 x high- mid devices are again arranged vertically-in-line for maximum throw. Each high-mid device is a sophisticated design featuring a 6.5" (165mm) driver loaded by a toroidal phase plug and constant coverage horn moulding.

overall dimensions

		touring and professional
technical specifications
TYPE		Dedicated longthrow high-mid/HF enclosure
FREQUENCY RESPONSE (1)		750Hz-18kHz ± 3dB
	DRIVERS	3 x 6.5" (165mm) high-mid horn
		6 x 1" (25mm) exit HF compression driver
	RATED POWER (2)	High-mid: 450W AES, 1800W peak
		HF: 360W AES, 1440W peak
RECOMMENDED AMPLIFIER 400-550W into 4 ohms
SENSITIVITY (3)		High-mid: 113dB
		HF: 115dB
MAXIMUM SPL (4)	High-mid: 139dB continuous, 145dB peak
		HF: 141dB continuous, 147 peak
	NOMINAL IMPEDANCE	High-mid: 6 ohms
		HF: 2 x 6 ohms
DISPERSION (-6dB)		55º horizontal, 7.5º vertical
CROSSOVER		750Hz, 3.5kHz
FINISH		Textured grey paint
PROTECTIVE GRILLE		Grey perforated steel
CONNECTORS		2 x Neutrik NL8
FITTINGS		4 x MAN Flying points
	DIMENSIONS (inc. wheels)	(W) 556mm x (H) 799mm x (D) 780mm (911mm)
		(W) 21.9ins x (H) 31.5ins x (D) 30.7 ins (35.9ins)
	WEIGHT	121kg (266lbs)
