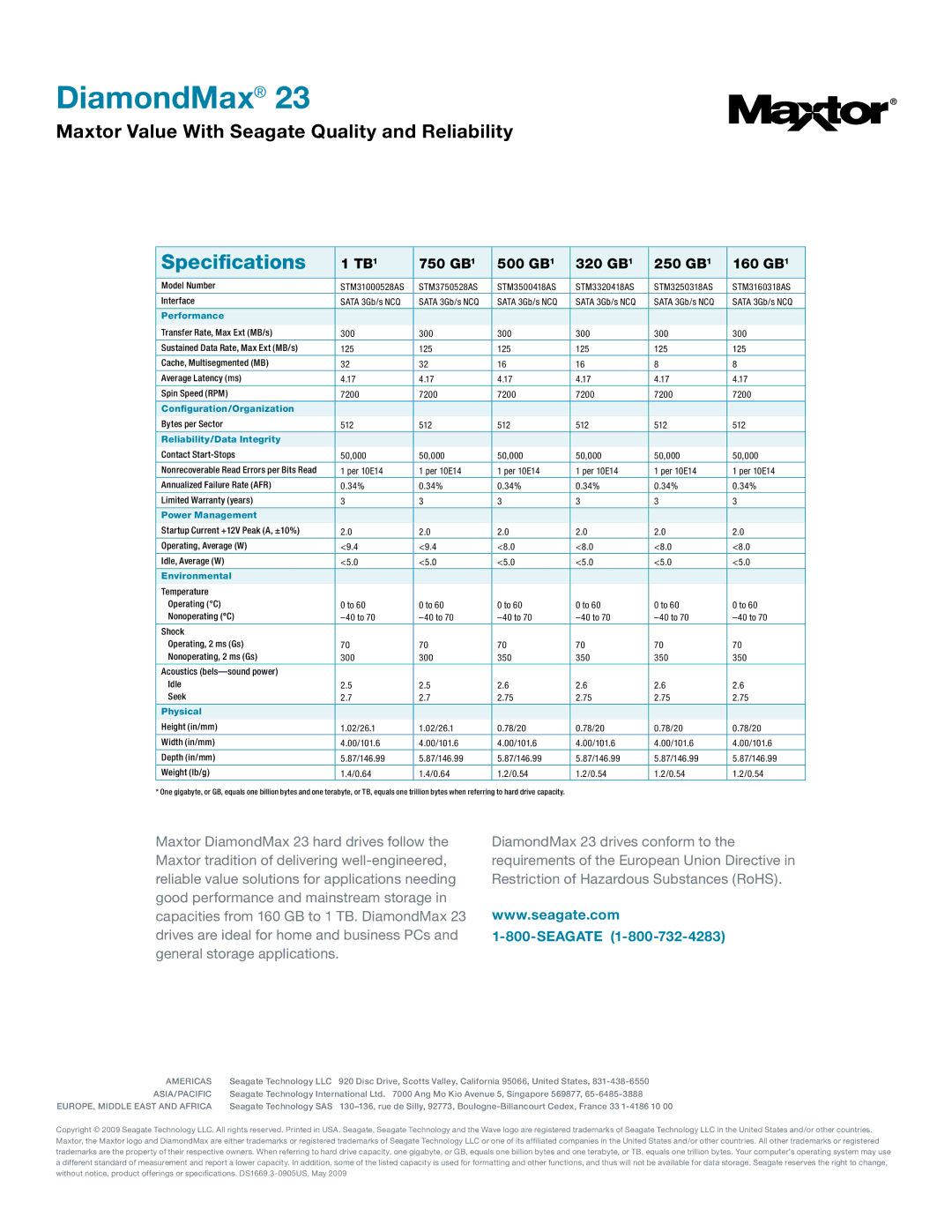

DiamondMax® 23
Maxtor Value With Seagate Quality and Reliability
Specifications | 1 TB1 | 750 GB1 | 500 GB1 | 320 GB1 | 250 GB1 | 160 GB1 |
|
|
|
|
|
|
|
Model Number | STM31000528AS | STM3750528AS | STM3500418AS | STM3320418AS | STM3250318AS | STM3160318AS |
Interface | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ |
Performance |
|
|
|
|
|
|
Transfer Rate, Max Ext (MB/s) | 300 | 300 | 300 | 300 | 300 | 300 |
Sustained Data Rate, Max Ext (MB/s) | 125 | 125 | 125 | 125 | 125 | 125 |
Cache, Multisegmented (MB) | 32 | 32 | 16 | 16 | 8 | 8 |
Average Latency (ms) | 4.17 | 4.17 | 4.17 | 4.17 | 4.17 | 4.17 |
Spin Speed (RPM) | 7200 | 7200 | 7200 | 7200 | 7200 | 7200 |
Configuration/Organization |
|
|
|
|
|
|
Bytes per Sector | 512 | 512 | 512 | 512 | 512 | 512 |
Reliability/Data Integrity |
|
|
|
|
|
|
Contact | 50,000 | 50,000 | 50,000 | 50,000 | 50,000 | 50,000 |
Nonrecoverable Read Errors per Bits Read | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 |
Annualized Failure Rate (AFR) | 0.34% | 0.34% | 0.34% | 0.34% | 0.34% | 0.34% |
Limited Warranty (years) | 3 | 3 | 3 | 3 | 3 | 3 |
Power Management |
|
|
|
|
|
|
Startup Current +12V Peak (A, ±10%) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Operating, Average (W) | <9.4 | <9.4 | <8.0 | <8.0 | <8.0 | <8.0 |
Idle, Average (W) | <5.0 | <5.0 | <5.0 | <5.0 | <5.0 | <5.0 |
Environmental |
|
|
|
|
|
|
Temperature |
|
|
|
|
|
|
Operating (°C) | 0 to 60 | 0 to 60 | 0 to 60 | 0 to 60 | 0 to 60 | 0 to 60 |
Nonoperating (ºC) | ||||||
Shock |
|
|
|
|
|
|
Operating, 2 ms (Gs) | 70 | 70 | 70 | 70 | 70 | 70 |
Nonoperating, 2 ms (Gs) | 300 | 300 | 350 | 350 | 350 | 350 |
Acoustics |
|
|
|
|
|
|
Idle | 2.5 | 2.5 | 2.6 | 2.6 | 2.6 | 2.6 |
Seek | 2.7 | 2.7 | 2.75 | 2.75 | 2.75 | 2.75 |
Physical |
|
|
|
|
|
|
Height (in/mm) | 1.02/26.1 | 1.02/26.1 | 0.78/20 | 0.78/20 | 0.78/20 | 0.78/20 |
Width (in/mm) | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 |
Depth (in/mm) | 5.87/146.99 | 5.87/146.99 | 5.87/146.99 | 5.87/146.99 | 5.87/146.99 | 5.87/146.99 |
Weight (lb/g) | 1.4/0.64 | 1.4/0.64 | 1.2/0.54 | 1.2/0.54 | 1.2/0.54 | 1.2/0.54 |
* One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes when referring to hard drive capacity.
Maxtor DiamondMax 23 hard drives follow the Maxtor tradition of delivering
DiamondMax 23 drives conform to the requirements of the European Union Directive in Restriction of Hazardous Substances (RoHS).
