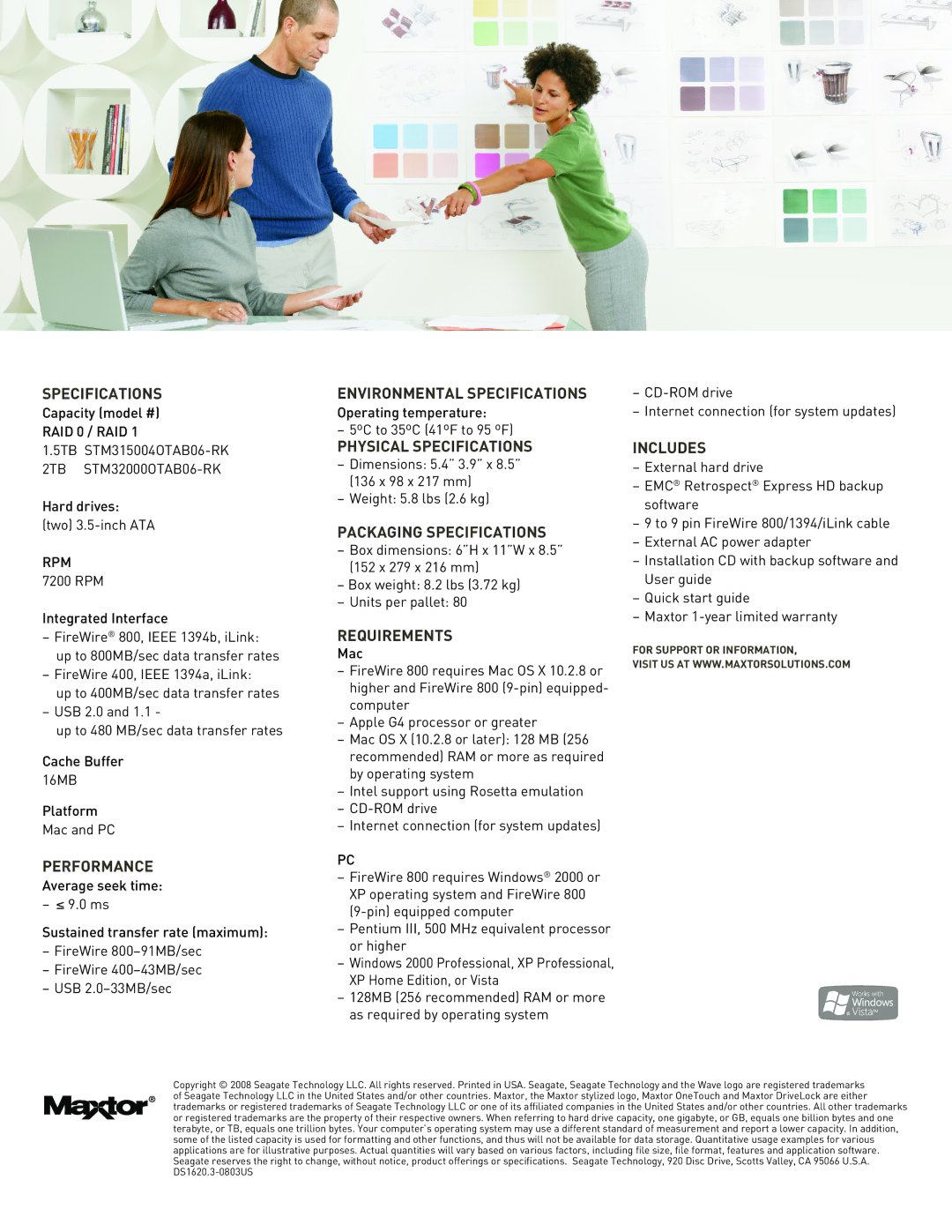

Specifications
Capacity (model #)
RAID 0 / RAID 1
1.5TB
Hard drives: (two)
RPM
7200 RPM
Integrated Interface
–FireWire® 800, IEEE 1394b, iLink: up to 800MB/sec data transfer rates
–FireWire 400, IEEE 1394a, iLink:
up to 400MB/sec data transfer rates
– USB 2.0 and 1.1 -
up to 480 MB/sec data transfer rates
Cache Buffer 16MB
Platform
Mac and PC
Performance
Average seek time:
– ≤ 9.0 ms
Sustained transfer rate (maximum):
–FireWire
–FireWire
–USB
Environmental Specifications
Operating temperature:
–5ºC to 35ºC (41ºF to 95 ºF)
Physical Specifications
–Dimensions: 5.4” 3.9” x 8.5” (136 x 98 x 217 mm)
–Weight: 5.8 lbs (2.6 kg)
PACKAGING Specifications
–Box dimensions: 6”H x 11”W x 8.5” (152 x 279 x 216 mm)
–Box weight: 8.2 lbs (3.72 kg)
–Units per pallet: 80
Requirements
Mac
–FireWire 800 requires Mac OS X 10.2.8 or higher and FireWire 800
–Apple G4 processor or greater
–Mac OS X (10.2.8 or later): 128 MB (256 recommended) RAM or more as required by operating system
–Intel support using Rosetta emulation
–
–Internet connection (for system updates)
PC
–FireWire 800 requires Windows® 2000 or XP operating system and FireWire 800
–Pentium III, 500 MHz equivalent processor or higher
–Windows 2000 Professional, XP Professional, XP Home Edition, or Vista
–128MB (256 recommended) RAM or more as required by operating system
–
–Internet connection (for system updates)
Includes
–External hard drive
–EMC® Retrospect® Express HD backup software
–9 to 9 pin FireWire 800/1394/iLink cable
–External AC power adapter
–Installation CD with backup software and User guide
–Quick start guide
–Maxtor
For support or information,
visit us at www.maxtorSOLUTIONS.com
Copyright © 2008 Seagate Technology LLC. All rights reserved. Printed in USA. Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. Maxtor, the Maxtor stylized logo, Maxtor OneTouch and Maxtor DriveLock are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners. When referring to hard drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Quantitative usage examples for various applications are for illustrative purposes. Actual quantities will vary based on various factors, including file size, file format, features and application software. Seagate reserves the right to change, without notice, product offerings or specifications. Seagate Technology, 920 Disc Drive, Scotts Valley, CA 95066 U.S.A.
