Page 1
Image 1

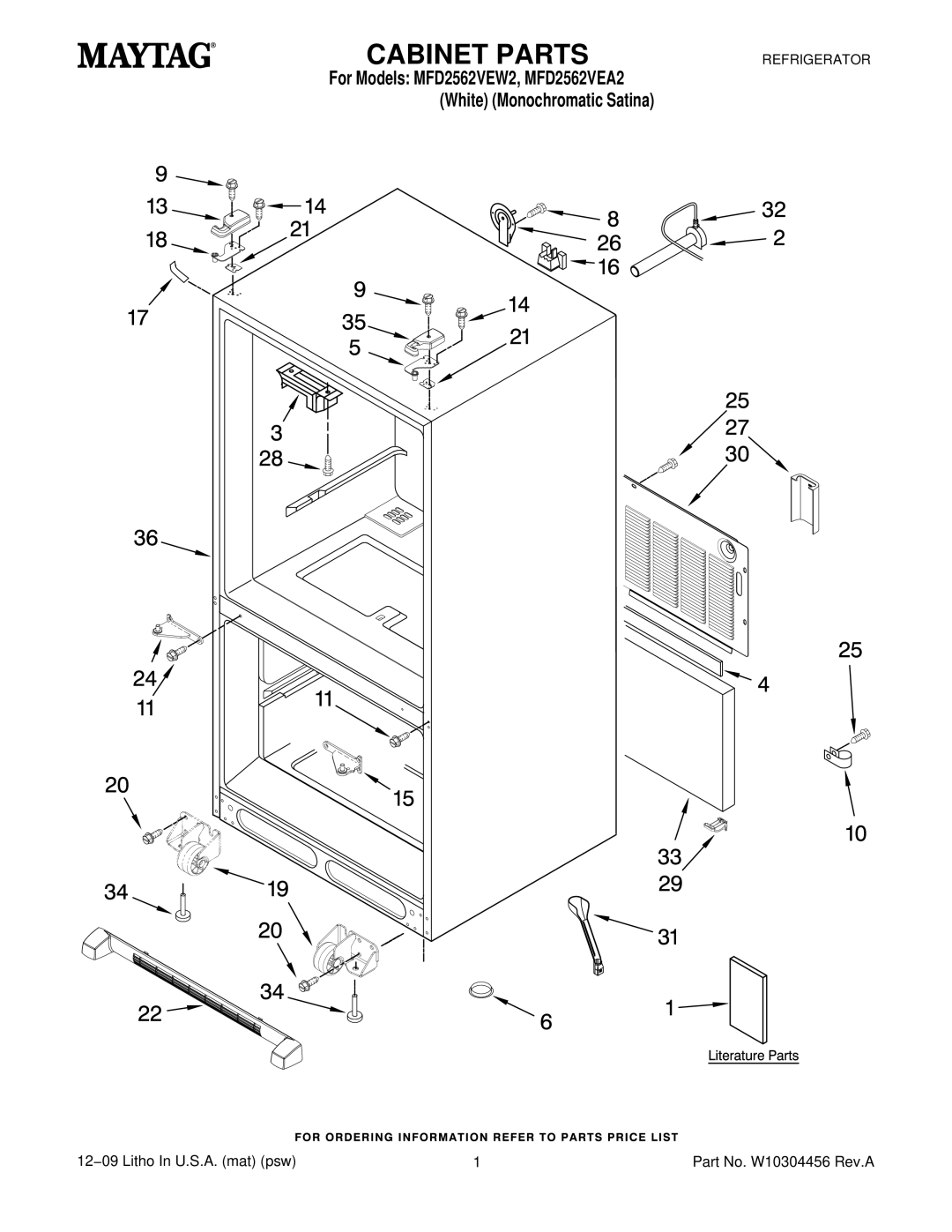

CABINET PARTS
For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina)
REFRIGERATOR
12−09 Litho In U.S.A. (mat) (psw)
1
Part No. W10304456 Rev.A
Page 2
Page 1
Image 1
Page 2
Contents
12−09 Litho In U.S.A. mat psw

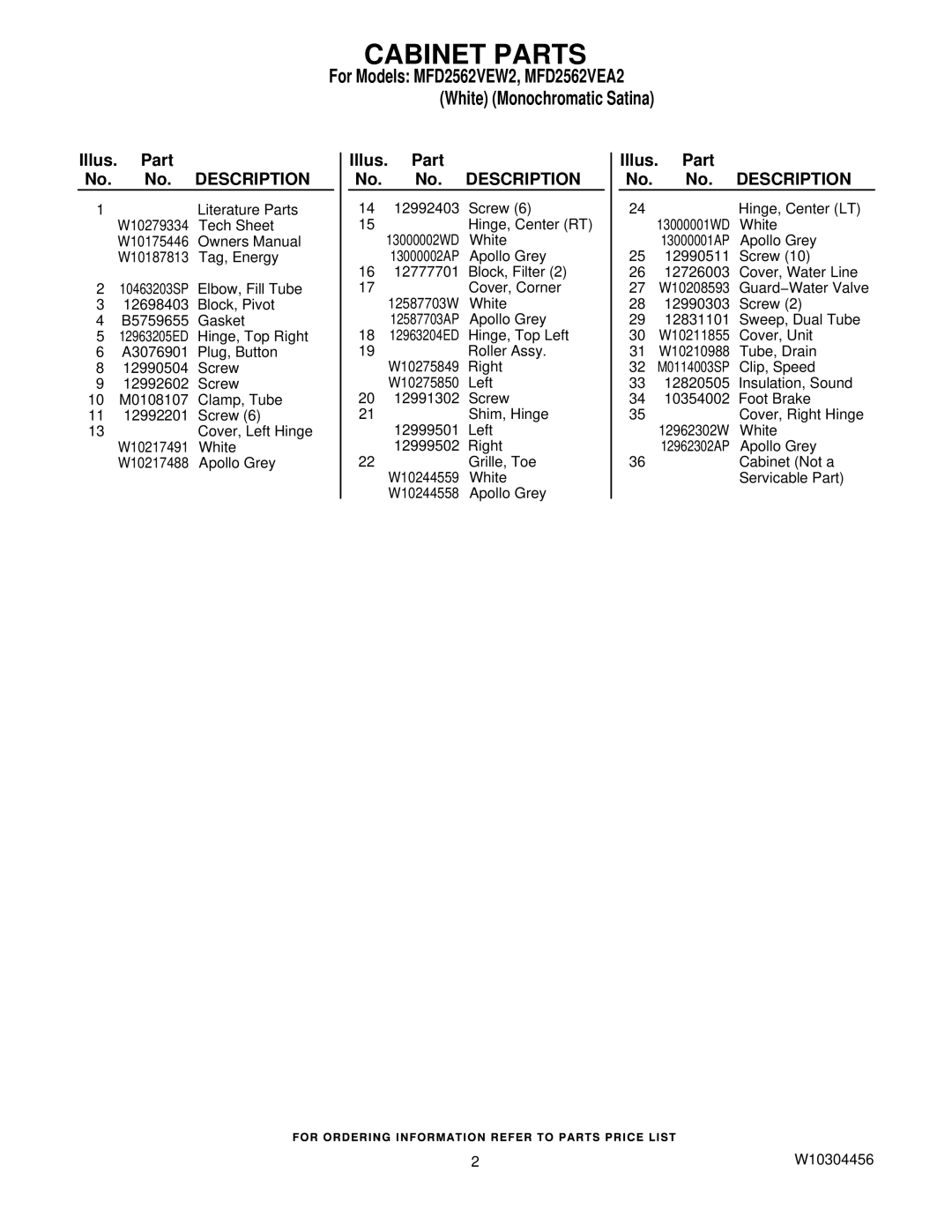

CABINET PARTS
For Models MFD2562VEW2, MFD2562VEA2 White Monochromatic Satina
REFRIGERATOR
CABINET PARTS
W10304456

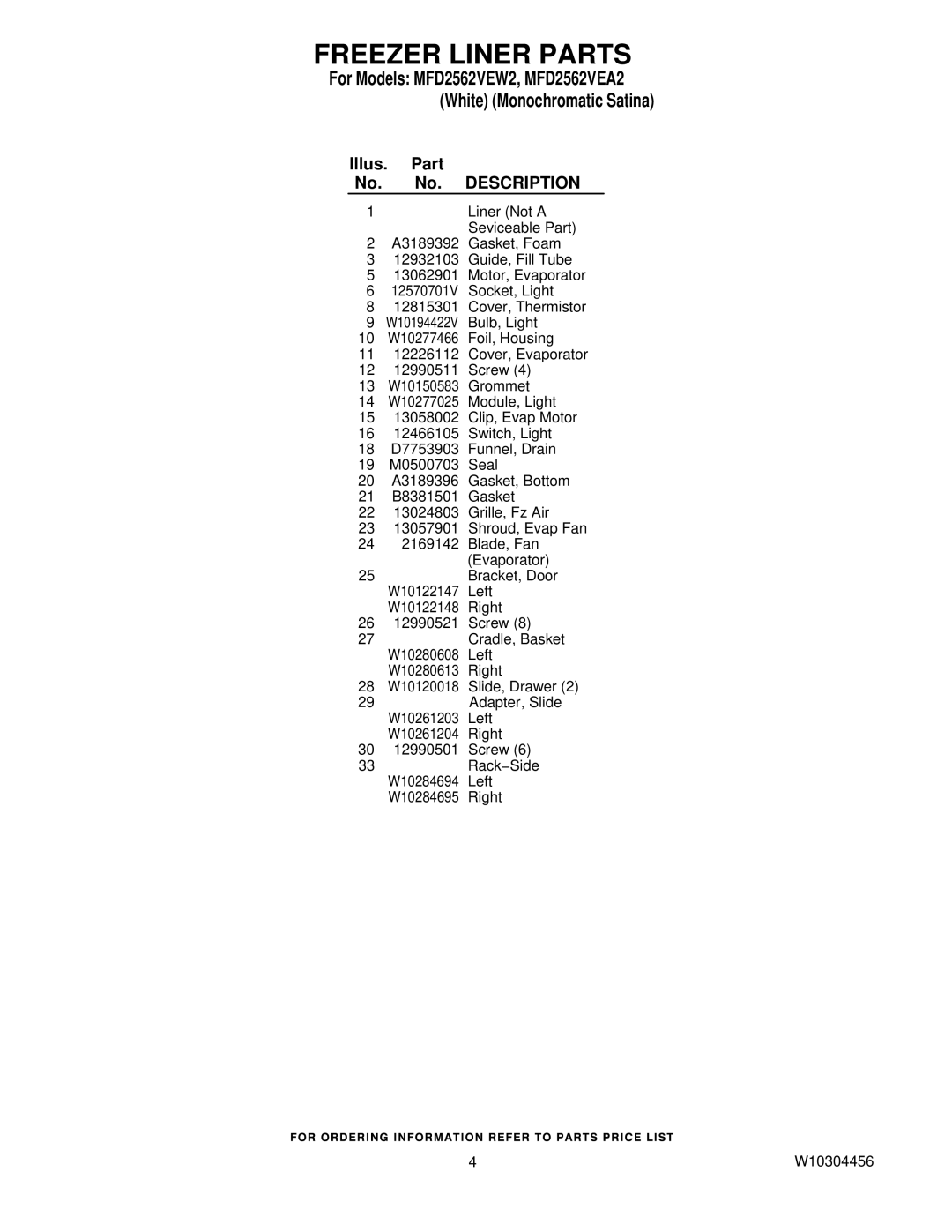

FREEZER LINER PARTS
For Models MFD2562VEW2, MFD2562VEA2 White Monochromatic Satina
1 Liner Not A Seviceable Part 2 A3189392 Gasket, Foam
FREEZER LINER PARTS
W10304456

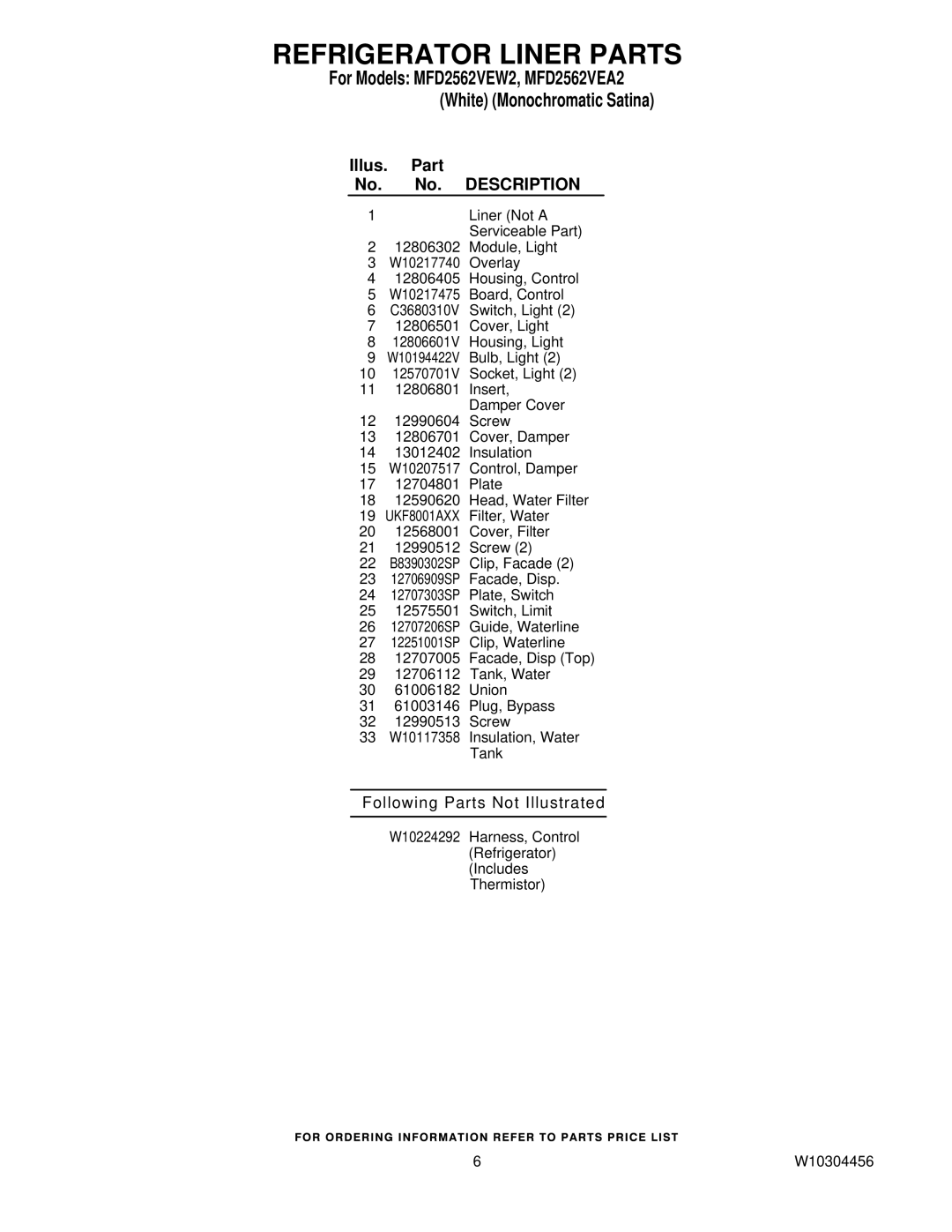

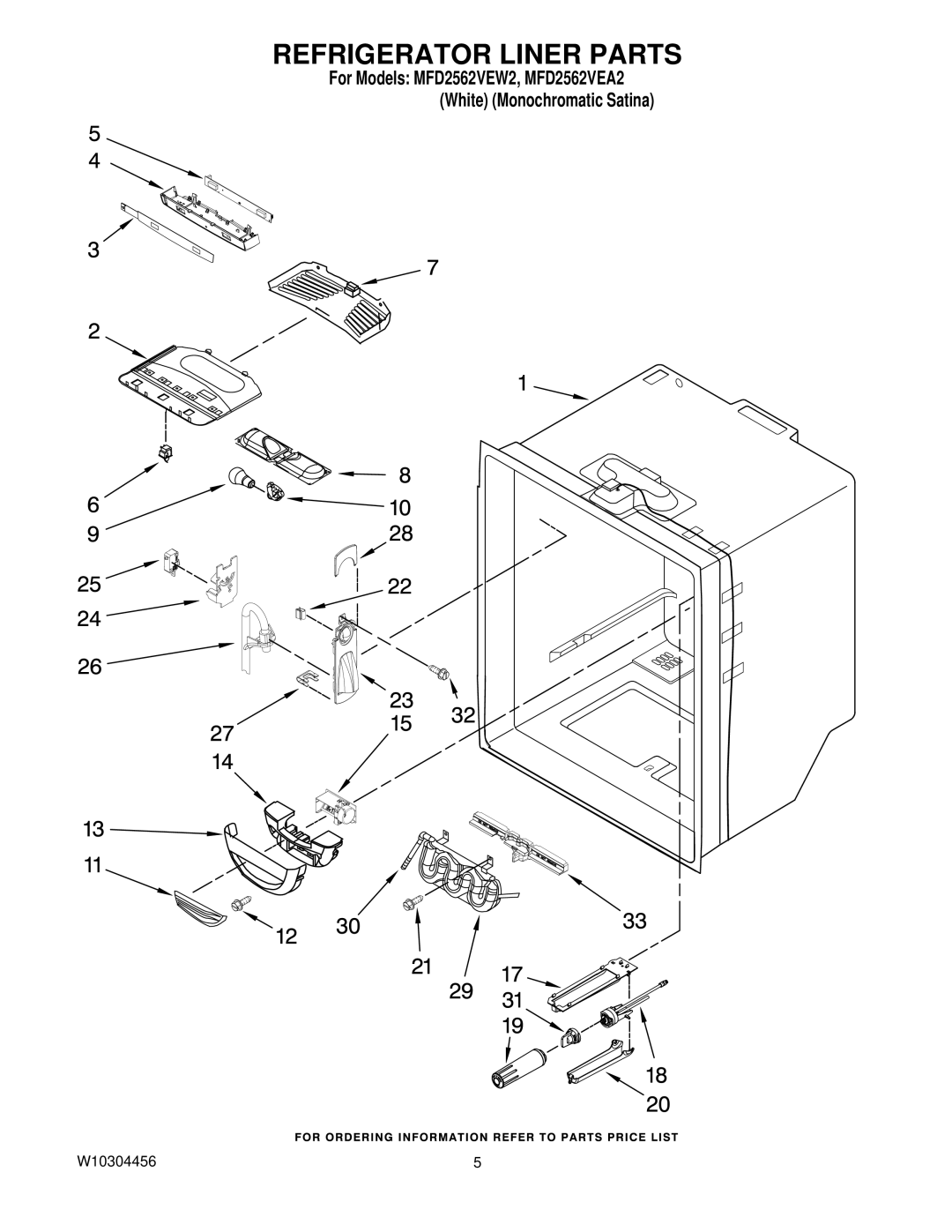

REFRIGERATOR LINER PARTS
For Models MFD2562VEW2, MFD2562VEA2 White Monochromatic Satina
REFRIGERATOR LINER PARTS
Following Parts Not Illustrated
W10304456

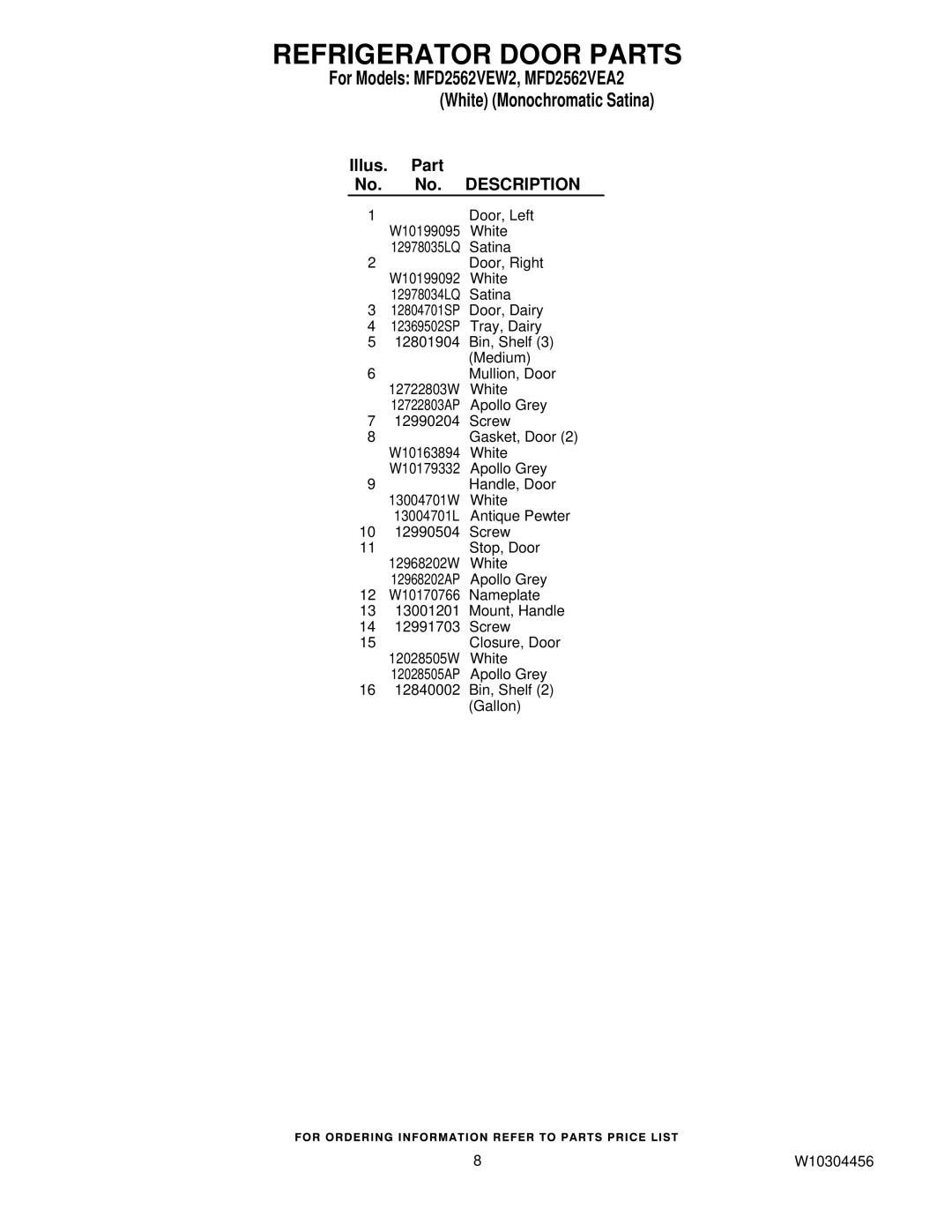

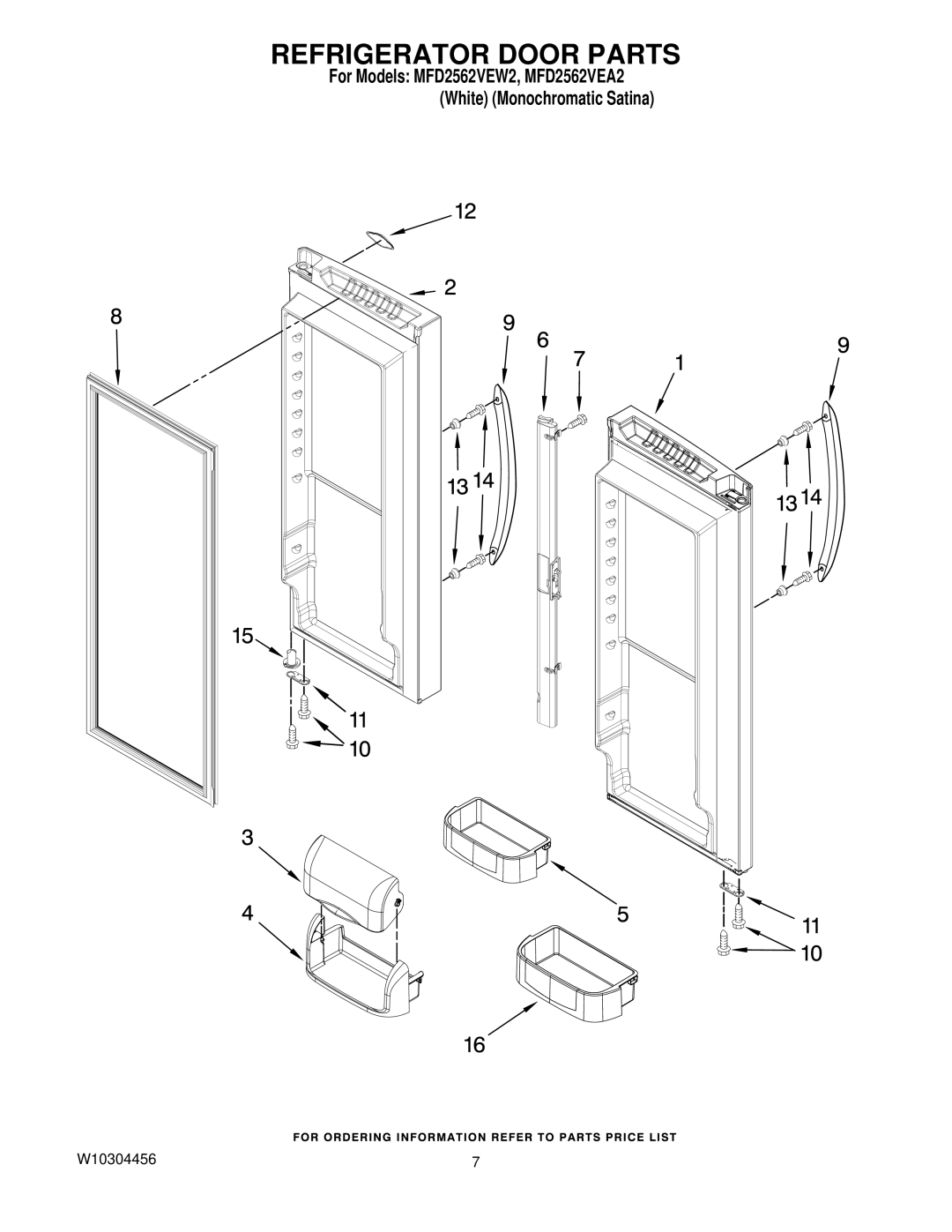

REFRIGERATOR DOOR PARTS
For Models MFD2562VEW2, MFD2562VEA2 White Monochromatic Satina
1 Door, Left
REFRIGERATOR DOOR PARTS
W10304456
UNIT PARTS
For Models MFD2562VEW2, MFD2562VEA2 White Monochromatic Satina
UNIT PARTS
Following Parts Not Illustrated and Optional Parts Not Included
W10304456
SHELF PARTS
For Models MFD2562VEW2, MFD2562VEA2 White Monochromatic Satina
1 12204830 Glass, Pantry 2 12654610 Shelf, Glide Out
SHELF PARTS
W10304456
ICEMAKER PARTS
For Models MFD2562VEW2, MFD2562VEA2 White Monochromatic Satina
Following Parts Not Illustrated
ICEMAKER PARTS
1 2256086 Bracket, Ice Maker 2 B5705333SP Tubing, Plastic
For Models MFD2562VEW2, MFD2562VEA2 White Monochromatic Satina
FREEZER DOOR PARTS
W10199889 White 12977818LQ Satina
Parts Not Illustrated and Optional Parts Not Included
OPTIONAL PARTS NOT INCLUDED
