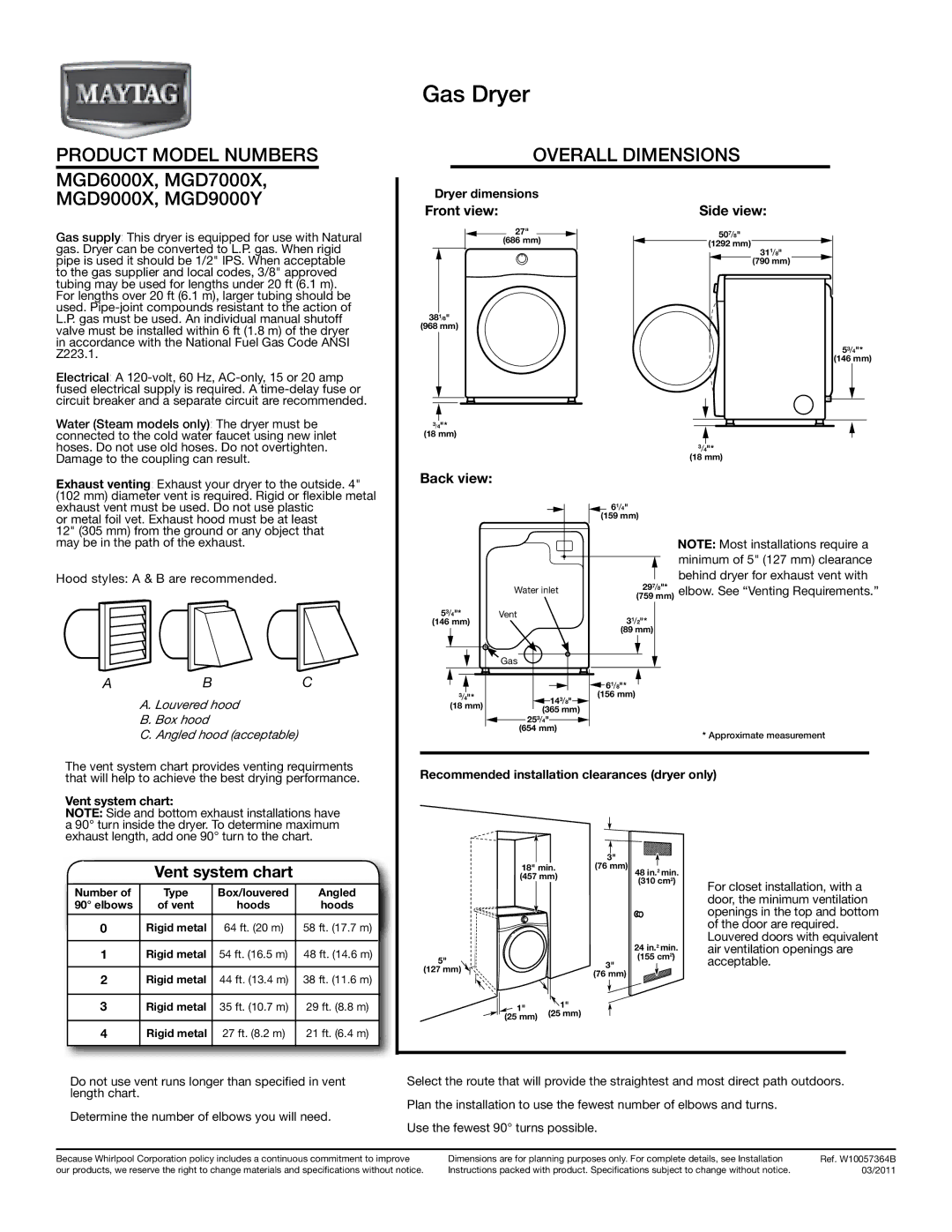

Maytag MGD9000X, MGD9000Y dimensions Gas Dryer, Product Model Numbers, Overall Dimensions

PRODUCT MODEL NUMBERS

Gas Dryer

OVERALL DIMENSIONS

MGD6000X, MGD7000X,

MGD9000X, MGD9000Y

Gas supply: This dryer is equipped for use with Natural gas. Dryer can be converted to L.P. gas. When rigid pipe is used it should be 1/2" IPS. When acceptable to the gas supplier and local codes, 3/8" approved tubing may be used for lengths under 20 ft (6.1 m). For lengths over 20 ft (6.1 m), larger tubing should be used. Pipe-joint compounds resistant to the action of L.P. gas must be used. An individual manual shutoff valve must be installed within 6 ft (1.8 m) of the dryer in accordance with the National Fuel Gas Code ANSI Z223.1.

Electrical: A 120-volt, 60 Hz, AC-only, 15 or 20 amp fused electrical supply is required. A time-delay fuse or circuit breaker and a separate circuit are recommended.

Water (Steam models only): The dryer must be connected to the cold water faucet using new inlet hoses. Do not use old hoses. Do not overtighten. Damage to the coupling can result.

Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm) diameter vent is required. Rigid or flexible metal exhaust vent must be used. Do not use plastic

or metal foil vet. Exhaust hood must be at least 12" (305 mm) from the ground or any object that

Dryer dimensions

Front view:

27"

(686 mm)

381/8"

(968 mm)

3/4"*

(18 mm)

Back view:

Side view:

507/8"

(1292 mm) 311/8"

(790 mm)

53/4"*

(146 mm)

3/4"*

(18 mm)

61/4"

(159 mm)

may be in the path of the exhaust.

Hood styles: A & B are recommended.

ABC

A. Louvered hood

B. Box hood

C. Angled hood (acceptable)

The vent system chart provides venting requirments that will help to achieve the best drying performance.

Vent system chart:

NOTE: Side and bottom exhaust installations have a 90° turn inside the dryer. To determine maximum exhaust length, add one 90° turn to the chart.

			NOTE: Most installations require a
			minimum of 5" (127 mm) clearance
			behind dryer for exhaust vent with
		297/8"*
	Water inlet	(759 mm) elbow. See “Venting Requirements.”
53/4"*	Vent	31/2"*
(146 mm)
		(89 mm)

	Gas
			61/8"*
3/4"*	14	3	(156 mm)
(18 mm)		/8"
	(365 mm)
	253/4"
	(654 mm)		* Approximate measurement

Recommended installation clearances (dryer only)

Vent system chart

Number of	Type	Box/louvered	Angled
90° elbows	of vent	hoods	hoods
0	Rigid metal	64 ft. (20 m)	58 ft. (17.7 m)
1	Rigid metal	54 ft. (16.5 m)	48 ft. (14.6 m)
2	Rigid metal	44 ft. (13.4 m)	38 ft. (11.6 m)
3	Rigid metal	35 ft. (10.7 m)	29 ft. (8.8 m)
4	Rigid metal	27 ft. (8.2 m)	21 ft. (6.4 m)

3"

18" min. (76 mm) (457 mm)

5"		3"
(127 mm)
		(76 mm)
	1"	1"
		(25 mm)
	(25 mm)

48in.2 min. (310 cm2)

24in.2 min. (155 cm2)

For closet installation, with a door, the minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent air ventilation openings are acceptable.

Do not use vent runs longer than specified in vent length chart.

Determine the number of elbows you will need.

Select the route that will provide the straightest and most direct path outdoors. Plan the installation to use the fewest number of elbows and turns.

Use the fewest 90° turns possible.

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation	Ref. W10057364B
Instructions packed with product. Specifications subject to change without notice.	03/2011
