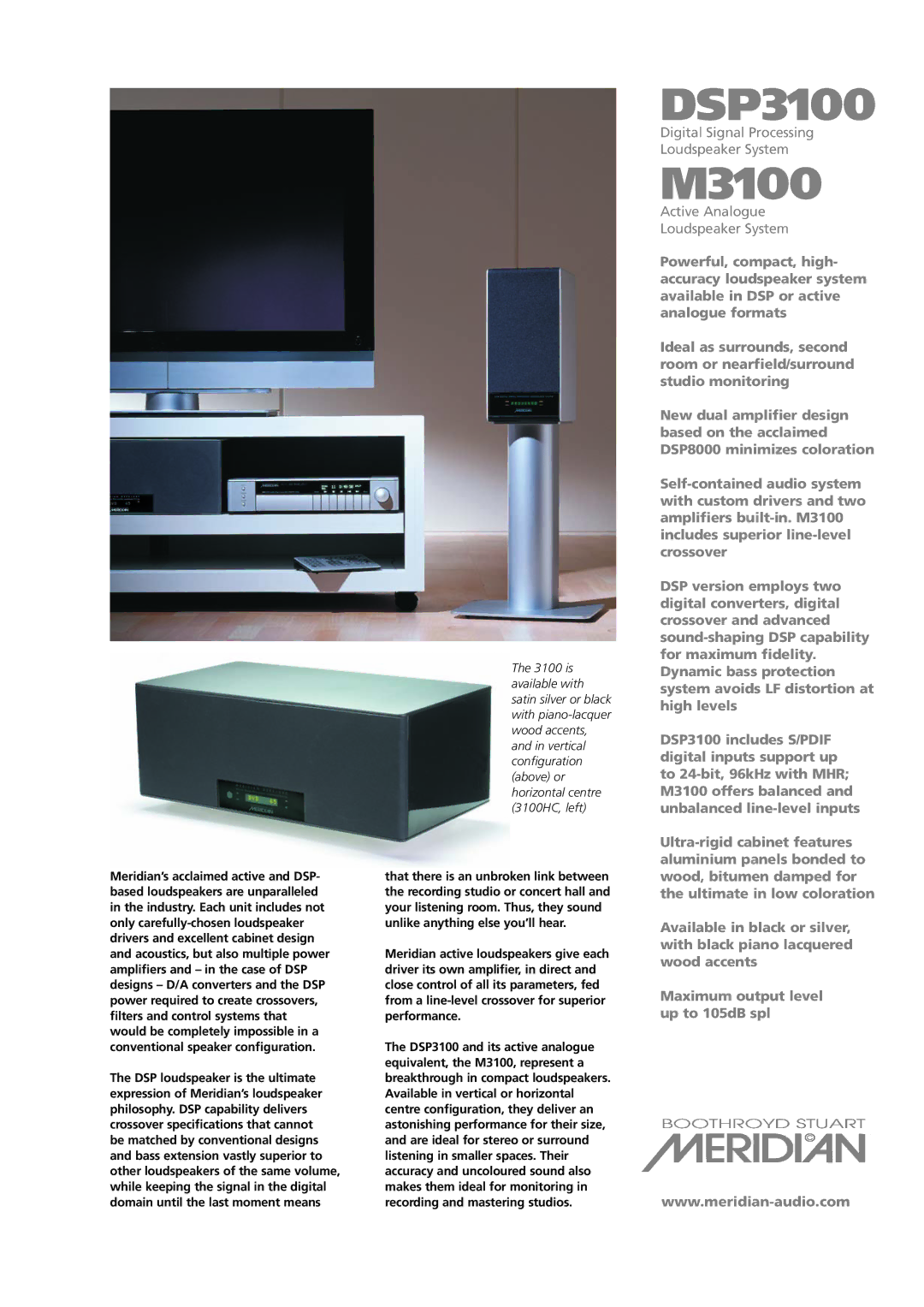

Meridian’s acclaimed active and DSP- based loudspeakers are unparalleled in the industry. Each unit includes not only carefully-chosen loudspeaker drivers and excellent cabinet design and acoustics, but also multiple power amplifiers and – in the case of DSP designs – D/A converters and the DSP power required to create crossovers, filters and control systems that would be completely impossible in a conventional speaker configuration.

The DSP loudspeaker is the ultimate expression of Meridian’s loudspeaker philosophy. DSP capability delivers crossover specifications that cannot be matched by conventional designs and bass extension vastly superior to other loudspeakers of the same volume, while keeping the signal in the digital domain until the last moment means

The 3100 is available with satin silver or black with piano-lacquer wood accents, and in vertical configuration (above) or horizontal centre (3100HC, left)

that there is an unbroken link between the recording studio or concert hall and your listening room. Thus, they sound unlike anything else you’ll hear.

Meridian active loudspeakers give each driver its own amplifier, in direct and close control of all its parameters, fed from a line-level crossover for superior performance.

The DSP3100 and its active analogue equivalent, the M3100, represent a breakthrough in compact loudspeakers. Available in vertical or horizontal centre configuration, they deliver an astonishing performance for their size, and are ideal for stereo or surround listening in smaller spaces. Their accuracy and uncoloured sound also makes them ideal for monitoring in recording and mastering studios.

DSP3100

Digital Signal Processing

Loudspeaker System

M3100

Active Analogue

Loudspeaker System

Powerful, compact, high- accuracy loudspeaker system available in DSP or active analogue formats

Ideal as surrounds, second room or nearfield/surround studio monitoring

New dual amplifier design based on the acclaimed DSP8000 minimizes coloration

Self-contained audio system with custom drivers and two amplifiers built-in. M3100 includes superior line-level crossover

DSP version employs two digital converters, digital crossover and advanced sound-shaping DSP capability for maximum fidelity. Dynamic bass protection system avoids LF distortion at high levels

DSP3100 includes S/PDIF digital inputs support up to 24-bit, 96kHz with MHR; M3100 offers balanced and unbalanced line-level inputs

Ultra-rigid cabinet features aluminium panels bonded to wood, bitumen damped for the ultimate in low coloration

Available in black or silver, with black piano lacquered wood accents

Maximum output level up to 105dB spl

www.meridian-audio.com

Page 1 Page 2
Page 1
Image 1

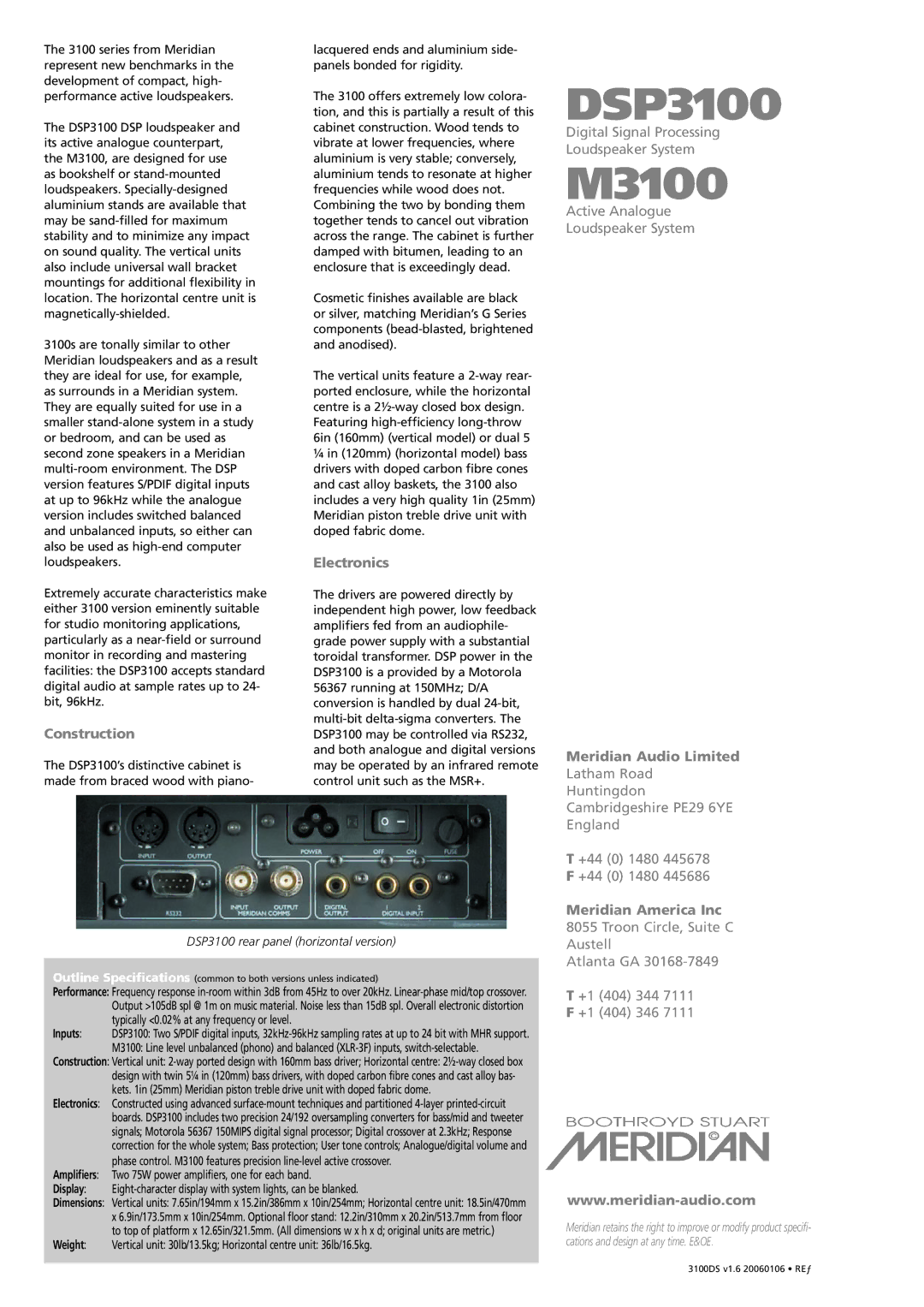

Meridian America M3100 specifications DSP3100
Page 1 Page 2

M3100 specifications

The Meridian America M3100 is an advanced audio processor that redefines the experience of high-fidelity sound systems. Designed for audiophiles and professionals alike, it provides an expansive range of features and cutting-edge technologies that enhance audio performance and flexibility.

One of the standout characteristics of the M3100 is its robust connectivity options. It integrates seamlessly with various digital sources, providing multiple inputs that include AES/EBU, S/PDIF, and USB. This versatility ensures compatibility with a wide range of audio devices, making it ideal for both studio setups and home audio systems.

The M3100 utilizes Meridian’s innovative DSP (Digital Signal Processing) capabilities, which allow for exceptional sound manipulation and enhancement. This technology enables precise tuning and calibration, ensuring that audio playback is faithful to the original recording. Users benefit from features such as room correction, which compensates for acoustic anomalies and optimizes sound quality in different environments.

Additionally, the M3100 supports high-resolution audio formats, providing playback at sampling rates that go well beyond CD quality. This is crucial for audiophiles who demand the finest details in their music. The processor also features advanced digital filtering, further enhancing sound clarity and spatial dimension.

Another significant attribute of the M3100 is its user-friendly interface. The integrated display and intuitive controls facilitate easy navigation through settings and options, allowing users to customize their listening experience effortlessly. Remote control functionality enhances convenience, enabling adjustments from anywhere in the room.

Furthermore, the M3100 is designed with an elegant aesthetic, featuring a sleek chassis that not only looks great but also minimizes resonance. This attention to detail in design complements its performance, ensuring that both form and function are prioritized.

In summary, the Meridian America M3100 is a state-of-the-art audio processor that combines cutting-edge technology with exceptional sound quality. Its comprehensive connectivity, advanced DSP capabilities, support for high-resolution audio, user-friendly interface, and elegant design make it an indispensable tool for anyone serious about audio fidelity. This product stands as a testament to Meridian's commitment to excellence in sound reproduction. Whether in a professional studio or a home listening environment, the M3100 delivers an unparalleled auditory experience.
