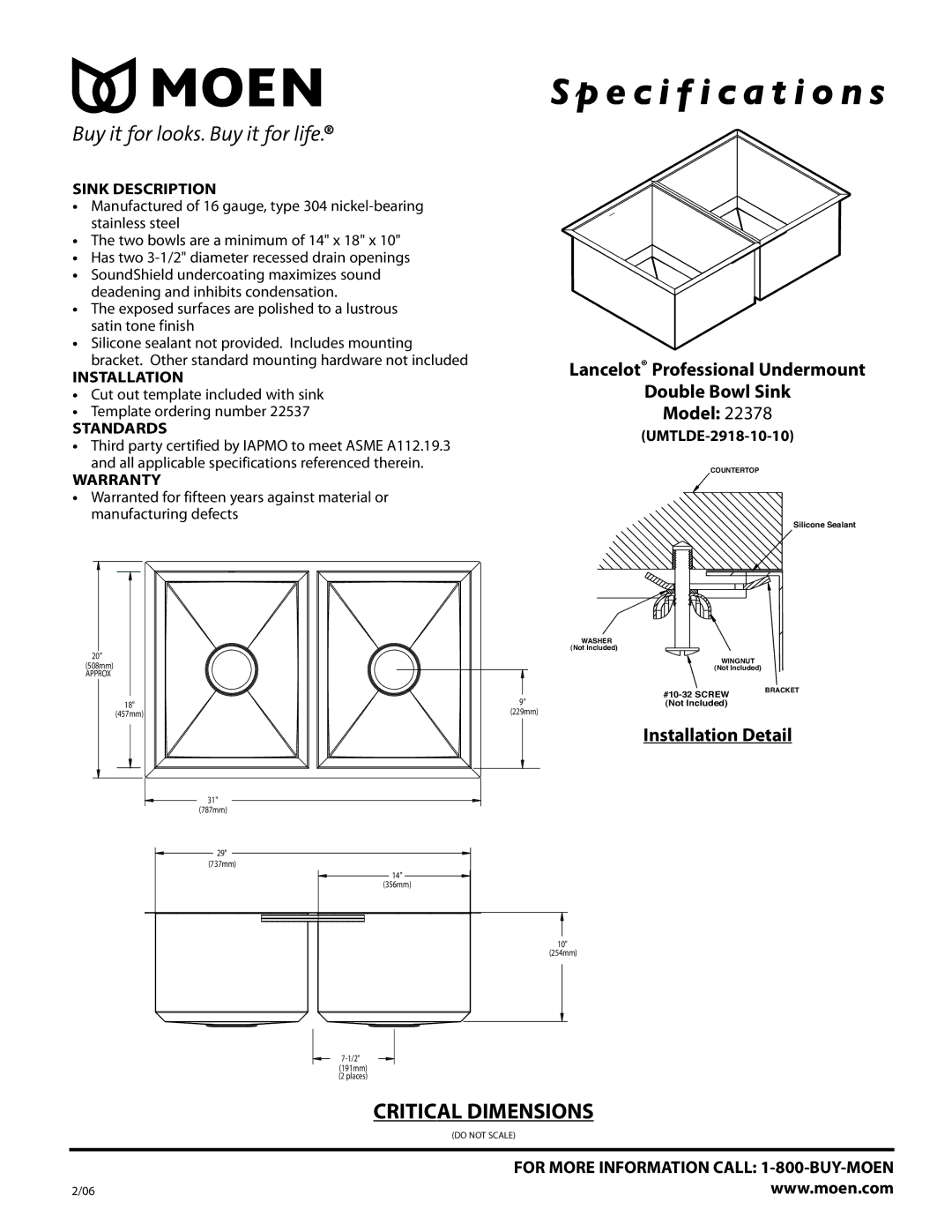

SINK DESCRIPTION

SINK DESCRIPTION

Manufactured of 16 gauge, type 304 nickel-bearing stainless steel

The two bowls are a minimum of 14" x 18" x 10"

Has two 3-1/2" diameter recessed drain openings

SoundShield undercoating maximizes sound deadening and inhibits condensation.

The exposed surfaces are polished to a lustrous satin tone finish

Silicone sealant not provided. Includes mounting bracket. Other standard mounting hardware not included

INSTALLATION

Cut out template included with sink

Template ordering number 22537

STANDARDS

Third party certified by IAPMO to meet ASME A112.19.3 and all applicable specifications referenced therein.

WARRANTY

Warranted for fifteen years against material or manufacturing defects

20"

(508mm)

APPROX

18"

(457mm)

31"

(787mm)

29" (737mm)

14" (356mm)

S p e c i f i c a t i o n s

Lancelot® Professional Undermount

Double Bowl Sink

Model: 22378

(UMTLDE-2918-10-10)

COUNTERTOP

Silicone Sealant

WASHER

(Not Included)

WINGNUT

(Not Included)



#10-32 SCREW

BRACKET

9"



(Not Included)



(229mm)

Installation Detail

10"

(254mm)

7-1/2"

(191mm) (2 places)

CRITICAL DIMENSIONS

(DO NOT SCALE)



FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

2/06

www.moen.com
