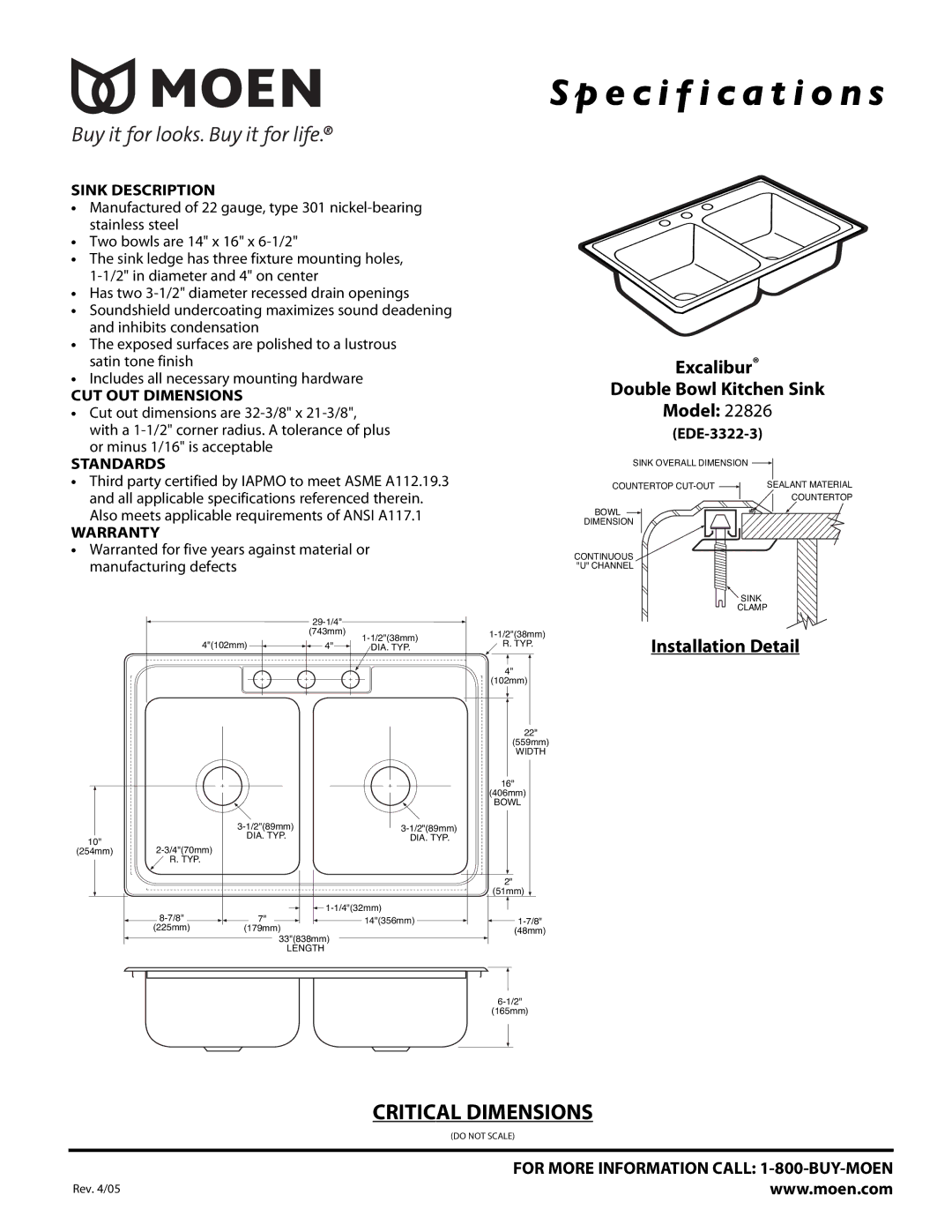

S p e c i f i c a t i o n s

SINK DESCRIPTION

Manufactured of 22 gauge, type 301 nickel-bearing stainless steel

Two bowls are 14" x 16" x 6-1/2"

The sink ledge has three fixture mounting holes, 1-1/2" in diameter and 4" on center

Has two 3-1/2" diameter recessed drain openings

Soundshield undercoating maximizes sound deadening and inhibits condensation

The exposed surfaces are polished to a lustrous satin tone finish

Includes all necessary mounting hardware

CUT OUT DIMENSIONS

Cut out dimensions are 32-3/8" x 21-3/8", with a 1-1/2" corner radius. A tolerance of plus or minus 1/16" is acceptable

STANDARDS

Third party certified by IAPMO to meet ASME A112.19.3 and all applicable specifications referenced therein. Also meets applicable requirements of ANSI A117.1

WARRANTY

Warranted for five years against material or manufacturing defects

Excalibur®

Double Bowl Kitchen Sink

Model: 22826

(EDE-3322-3)



SINK OVERALL DIMENSION



RTO

COUNTE P CUT-OUT

SEALANT MATERIAL





COUNTERTOP



BOWL



DIMENSION



CONTINUOUS "U" CHANNEL

SINK

CLAMP



29-1/4"





(743mm)

1-1/2"(38mm)

4"(102mm)

4"

DIA. TYP.





3-1/2"(89mm)

3-1/2"(89mm)

10"

2-3/4"(70mm)

DIA. TYP.

DIA. TYP.

(254mm)







R. TYP.







8-7/8"

7"

1-1/4"(32mm)



14"(356mm)



(225mm)

(179mm)







33"(838mm)





LENGTH



1-1/2"(38mm) R. TYP.

4"

(102mm)

22"

(559mm)

WIDTH

16"

(406mm)

BOWL

2" (51mm)

1-7/8" (48mm)

Installation Detail

6-1/2"

(165mm)

CRITICAL DIMENSIONS

(DO NOT SCALE)



FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

Rev. 4/05

www.moen.com

Page 1
