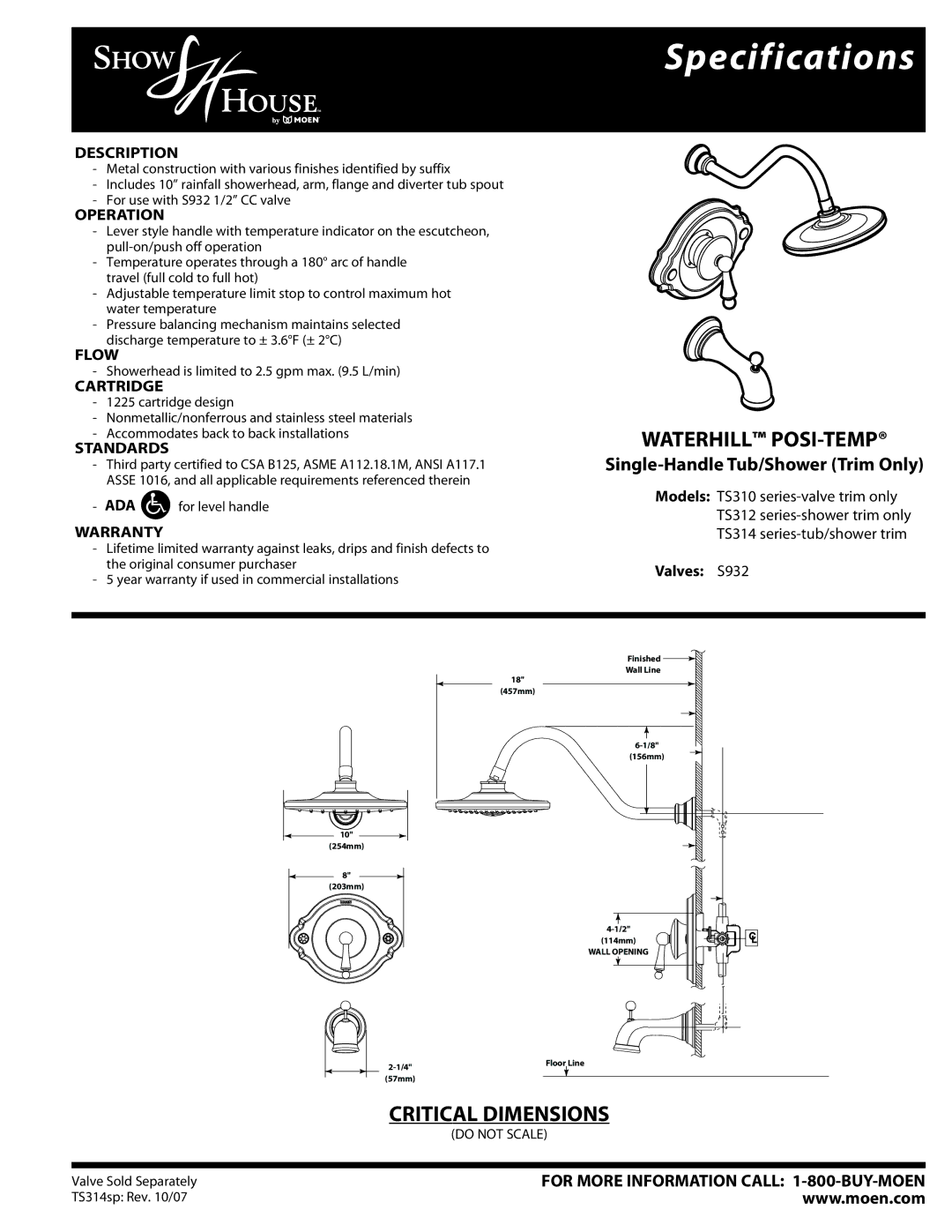

Moen S932 specifications Specifications, Waterhill Posi-Temp, Critical Dimensions, Description

DESCRIPTION

-Metal construction with various finishes identified by suffix

-Includes 10” rainfall showerhead, arm, flange and diverter tub spout

-For use with S932 1/2” CC valve

OPERATION

-Lever style handle with temperature indicator on the escutcheon, pull-on/push off operation

-Temperature operates through a 180° arc of handle travel (full cold to full hot)

-Adjustable temperature limit stop to control maximum hot water temperature

-Pressure balancing mechanism maintains selected discharge temperature to ± 3.6°F (± 2°C)

FLOW

-Showerhead is limited to 2.5 gpm max. (9.5 L/min)

CARTRIDGE

-1225 cartridge design

-Nonmetallic/nonferrous and stainless steel materials

-Accommodates back to back installations

STANDARDS

-Third party certified to CSA B125, ASME A112.18.1M, ANSI A117.1 ASSE 1016, and all applicable requirements referenced therein

Specifications

WATERHILL™ POSI-TEMP®

Single-Handle Tub/Shower (Trim Only)

- ADA for level handle

WARRANTY

-Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

-5 year warranty if used in commercial installations

Models: TS310 series-valve trim only TS312 series-shower trim only TS314 series-tub/shower trim

Valves: S932

10"

(254mm)

8"

(203mm)

Finished

Wall Line

18"

(457mm)

6-1/8"

(156mm)

4-1/2"

(114mm)

WALL OPENING

C

L

2-1/4"	Floor Line
(57mm)

CRITICAL DIMENSIONS

(DO NOT SCALE)

Valve Sold Separately TS314sp: Rev. 10/07
