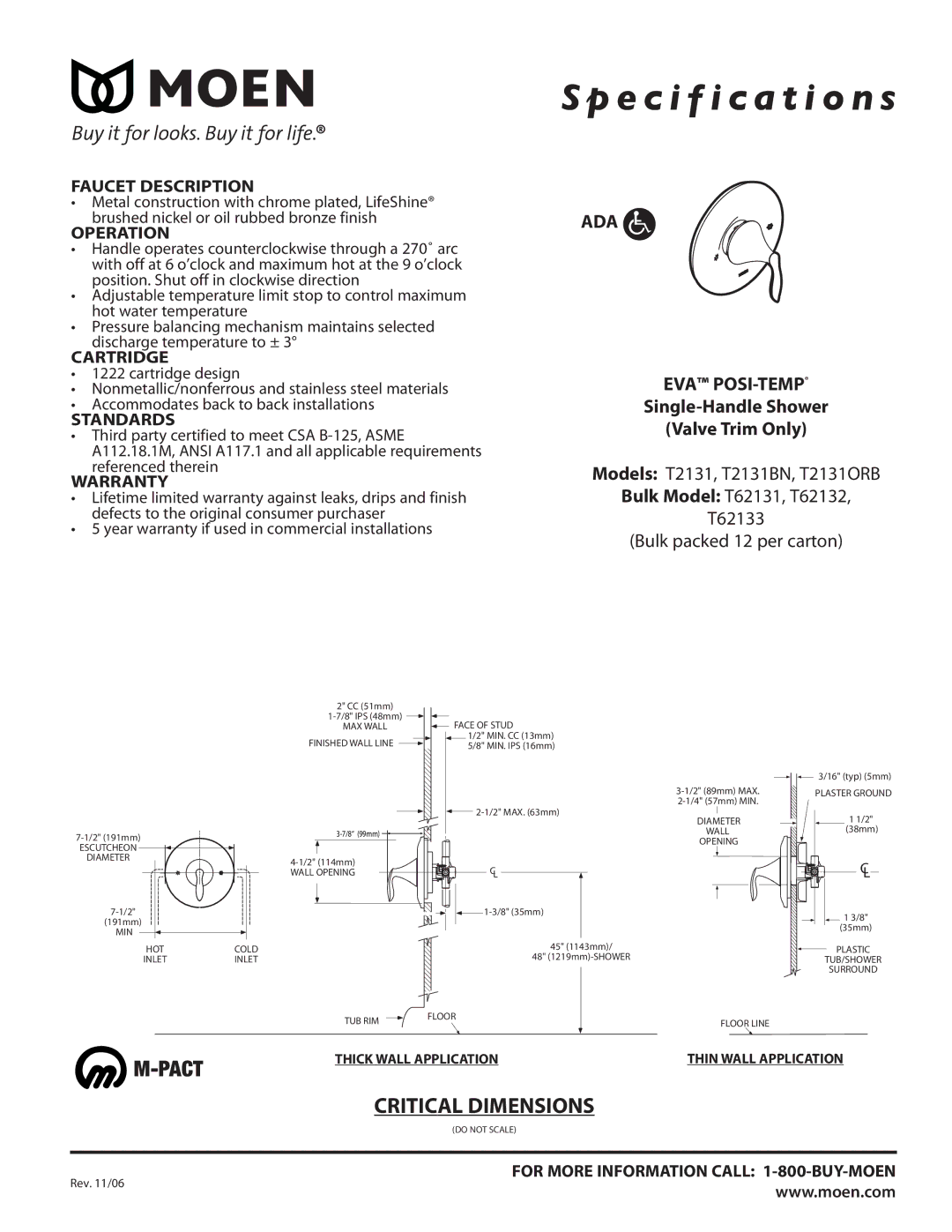

S p e c i f i c a t i o n s

FAUCET DESCRIPTION

• Metal construction with chrome plated, LifeShine® brushed nickel or oil rubbed bronze finish

OPERATION

•Handle operates counterclockwise through a 270˚ arc with off at 6 o’clock and maximum hot at the 9 o’clock position. Shut off in clockwise direction

•Adjustable temperature limit stop to control maximum hot water temperature

•Pressure balancing mechanism maintains selected

discharge temperature to ± 3°

CARTRIDGE

•1222 cartridge design

•Nonmetallic/nonferrous and stainless steel materials

•Accommodates back to back installations

STANDARDS

•Third party certified to meet CSA B-125, ASME A112.18.1M, ANSI A117.1 and all applicable requirements

referenced therein

WARRANTY

•Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

•5 year warranty if used in commercial installations

ADA

EVA™ POSI-TEMP®

Single-Handle Shower

(Valve Trim Only)

Models: T2131, T2131BN, T2131ORB

Bulk Model: T62131, T62132,

T62133

(Bulk packed 12 per carton)

2" CC (51mm)
1-7/8" IPS (48mm)	FACE OF STUD
MAX WALL
FINISHED WALL LINE		1/2" MIN. CC (13mm)
		5/8" MIN. IPS (16mm)

		3-1/2" (89mm) MAX.
		2-1/4" (57mm) MIN.
		2-1/2" MAX. (63mm)
		DIAMETER
7-1/2" (191mm)	3-7/8“ (99mm)	WALL
		OPENING
ESCUTCHEON
DIAMETER	4-1/2" (114mm)
		CL
	WALL OPENING
7-1/2"		1-3/8" (35mm)
(191mm)
MIN
HOT	COLD	45" (1143mm)/
INLET	INLET	48" (1219mm)-SHOWER
	TUB RIM	FLOOR
		FLOOR LINE

3/16" (typ) (5mm)

PLASTER GROUND

1 1/2" (38mm)

C

L

1 3/8"

(35mm)

PLASTIC

TUB/SHOWER

SURROUND

M-PACT THICK WALL APPLICATION THIN WALL APPLICATION

CRITICAL DIMENSIONS

(DO NOT SCALE)

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

Rev. 11/06
