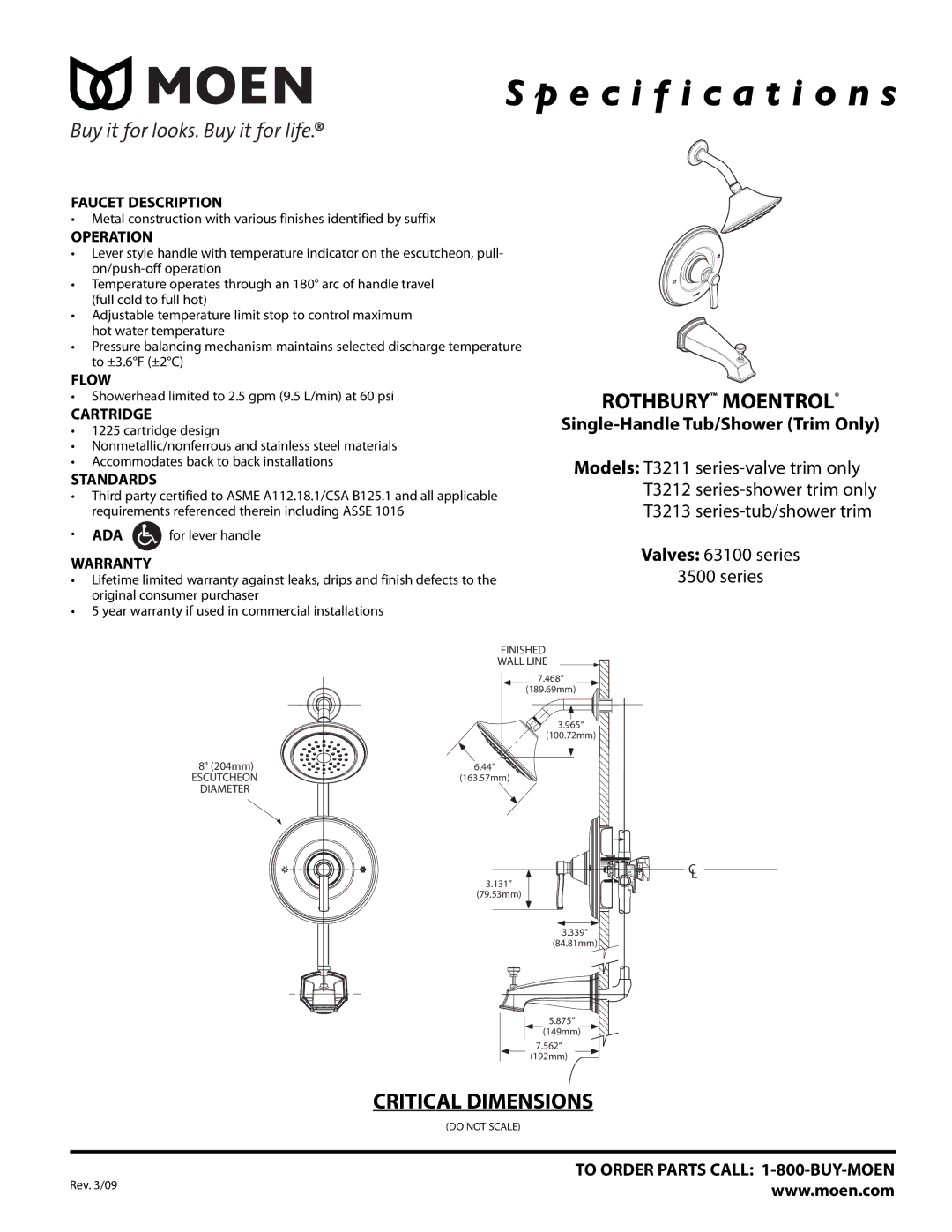

S p e c i f i c a t i o n s

FAUCET DESCRIPTION

•Metal construction with various finishes identified by suffix

OPERATION

•Lever style handle with temperature indicator on the escutcheon, pull- on/push-off operation

•Temperature operates through an 180° arc of handle travel (full cold to full hot)

•Adjustable temperature limit stop to control maximum hot water temperature

•Pressure balancing mechanism maintains selected discharge temperature to ±3.6°F (±2°C)

FLOW

•Showerhead limited to 2.5 gpm (9.5 L/min) at 60 psi

CARTRIDGE

•1225 cartridge design

•Nonmetallic/nonferrous and stainless steel materials

•Accommodates back to back installations

STANDARDS

•Third party certified to ASME A112.18.1/CSA B125.1 and all applicable requirements referenced therein including ASSE 1016

•ADA for lever handle

WARRANTY

•Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

•5 year warranty if used in commercial installations

ROTHBURY™ MOENTROL®

Single-Handle Tub/Shower (Trim Only)

Models: T3211 series-valve trim only T3212 series-shower trim only T3213 series-tub/shower trim

Valves: 63100 series

3500 series

8" (204mm)

ESCUTCHEON

DIAMETER

FINISHED

WALL LINE

7.468”

(189.69mm)

3.965”

(100.72mm)

6.44”

(163.57mm)

C

L

3.131”

(79.53mm)

3.339”

(84.81mm)

5.875”

(149mm)

7.562”

(192mm)

CRITICAL DIMENSIONS

(DO NOT SCALE)

TO ORDER PARTS CALL: 1-800-BUY-MOEN

Rev. 3/09 www.moen.com
