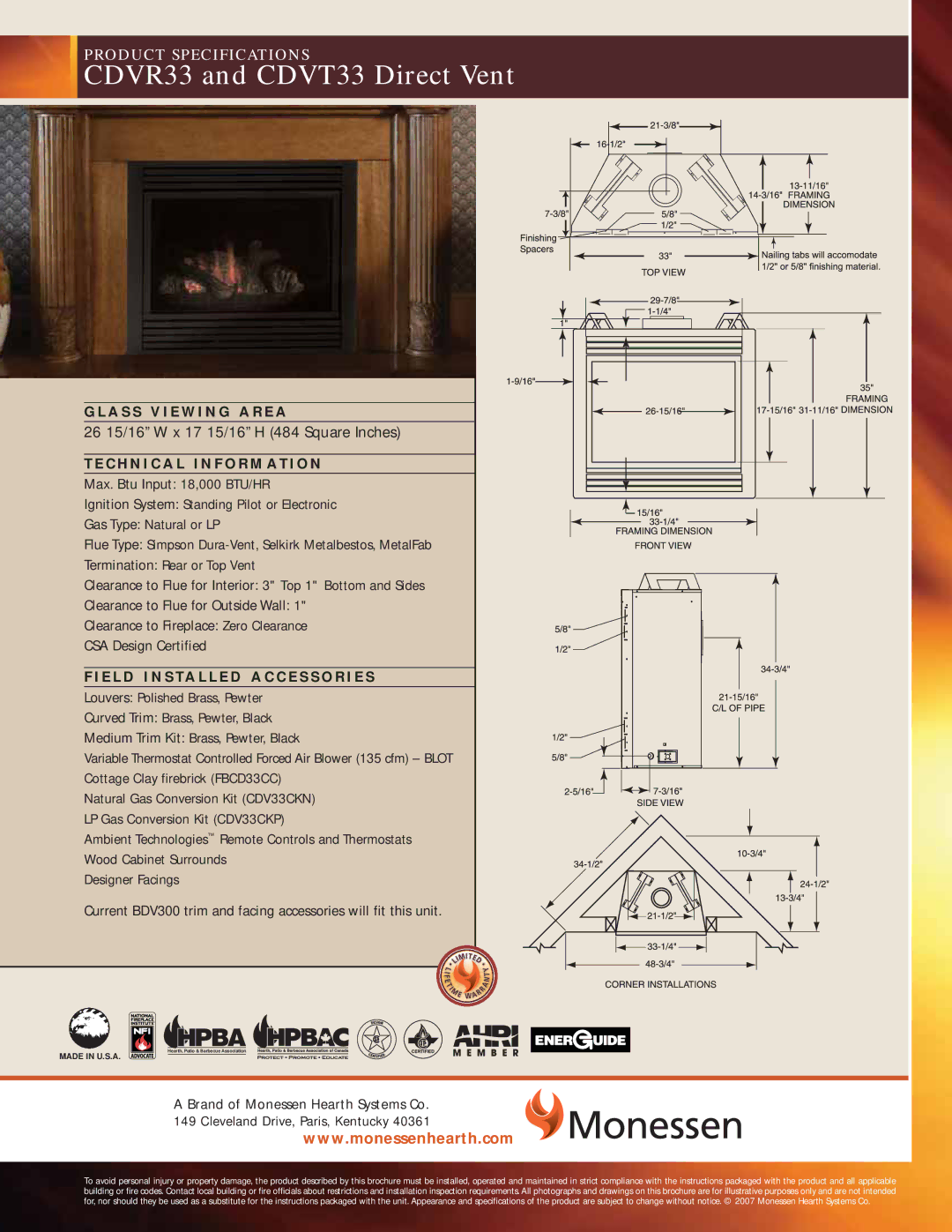

PRODUCT SPECIFICATIONS

CDVR33 and CDVT33 Direct Vent

G L A S S V I E W I N G A R E A

26 15/16”W x 17 15/16”H (484 Square Inches)

T E C H N I C A L I N F O R M AT I O N

Max. Btu Input: 18,000 BTU/HR

Ignition System: Standing Pilot or Electronic

Gas Type: Natural or LP

Flue Type: Simpson Dura-Vent, Selkirk Metalbestos, MetalFab

Termination: Rear or Top Vent

Clearance to Flue for Interior: 3" Top 1" Bottom and Sides

Clearance to Flue for Outside Wall: 1"

Clearance to Fireplace: Zero Clearance

CSA Design Certified

F I E L D I N S TA L L E D A C C E S S O R I E S

Louvers: Polished Brass, Pewter

Curved Trim: Brass, Pewter, Black

Medium Trim Kit: Brass, Pewter, Black

Variable Thermostat Controlled Forced Air Blower (135 cfm) – BLOT Cottage Clay firebrick (FBCD33CC)

Natural Gas Conversion Kit (CDV33CKN) LP Gas Conversion Kit (CDV33CKP)

Ambient TechnologiesRemote Controls and Thermostats Wood Cabinet Surrounds

Designer Facings

Current BDV300 trim and facing accessories will fit this unit.

Hearth,HPBAPatio & Barbecue Association

MADE IN U.S.A.

A Brand of Monessen Hearth Systems Co.

149 Cleveland Drive, Paris, Kentucky 40361

www.monessenhearth.com

To avoid personal injury or property damage, the product described by this brochure must be installed, operated and maintained in strict compliance with the instructions packaged with the product and all applicable building or fire codes. Contact local building or fire officials about restrictions and installation inspection requirements. All photographs and drawings on this brochure are for illustrative purposes only and are not intended for, nor should they be used as a substitute for the instructions packaged with the unit. Appearance and specifications of the product are subject to change without notice. © 2007 Monessen Hearth Systems Co.

Page 1
Image 1
Monessen Hearth specifications CDVR33 and CDVT33 Direct Vent

CDVT33, CDVR33 specifications

The Monessen Hearth CDVT33 and CDVR33 are versatile and innovative gas fireplaces designed to elevate the ambience of any home while providing exceptional heating performance. These models are supported by advanced technologies and a range of features that cater to the modern homeowner’s needs, making them a popular choice among those looking for efficiency and style.

One of the standout features of both the CDVT33 and CDVR33 is their impressive thermal efficiency ratings. With their direct vent design, these fireplaces are engineered to utilize outside air for combustion while venting exhaust gases outside, thus ensuring optimal heat output and minimal energy loss. This design not only enhances indoor air quality but also allows for installation in a variety of locations within the home.

Both units are equipped with an inviting flame presentation. The CDVT33 and CDVR33 incorporate realistic ceramic logs and a glowing ember bed, providing a beautiful visual aesthetic reminiscent of traditional wood-burning fireplaces. The linear burner creates a captivating flame pattern, while adjustable brightness settings enable homeowners to customize the ambiance according to their preferences.

In terms of user convenience, the Monessen Hearth models are designed with modern comforts in mind. They feature intuitive remote controls, allowing users to conveniently adjust flame height, heat output, and even set timers without needing to leave their seat. The units are also compatible with smart home systems, which adds an extra layer of control and convenience.

Safety is a priority with the CDVT33 and CDVR33. They come with a variety of safety features, including a safety pilot system and a glass barrier providing protection against accidental burns. Additionally, the units can be fitted with optional mesh screens for added safety and a traditional look.

Aesthetically, these fireplaces offer customizable options to match any home decor. From various finish choices to decorative media options, users can create a unique look that seamlessly integrates with their interior design.

In conclusion, the Monessen Hearth CDVT33 and CDVR33 gas fireplaces combine cutting-edge technology with luxurious design features. Their efficiency, user-friendly controls, safety systems, and aesthetic versatility make them an excellent choice for homeowners seeking to enhance their living spaces with the warmth and beauty of a gas fireplace.
