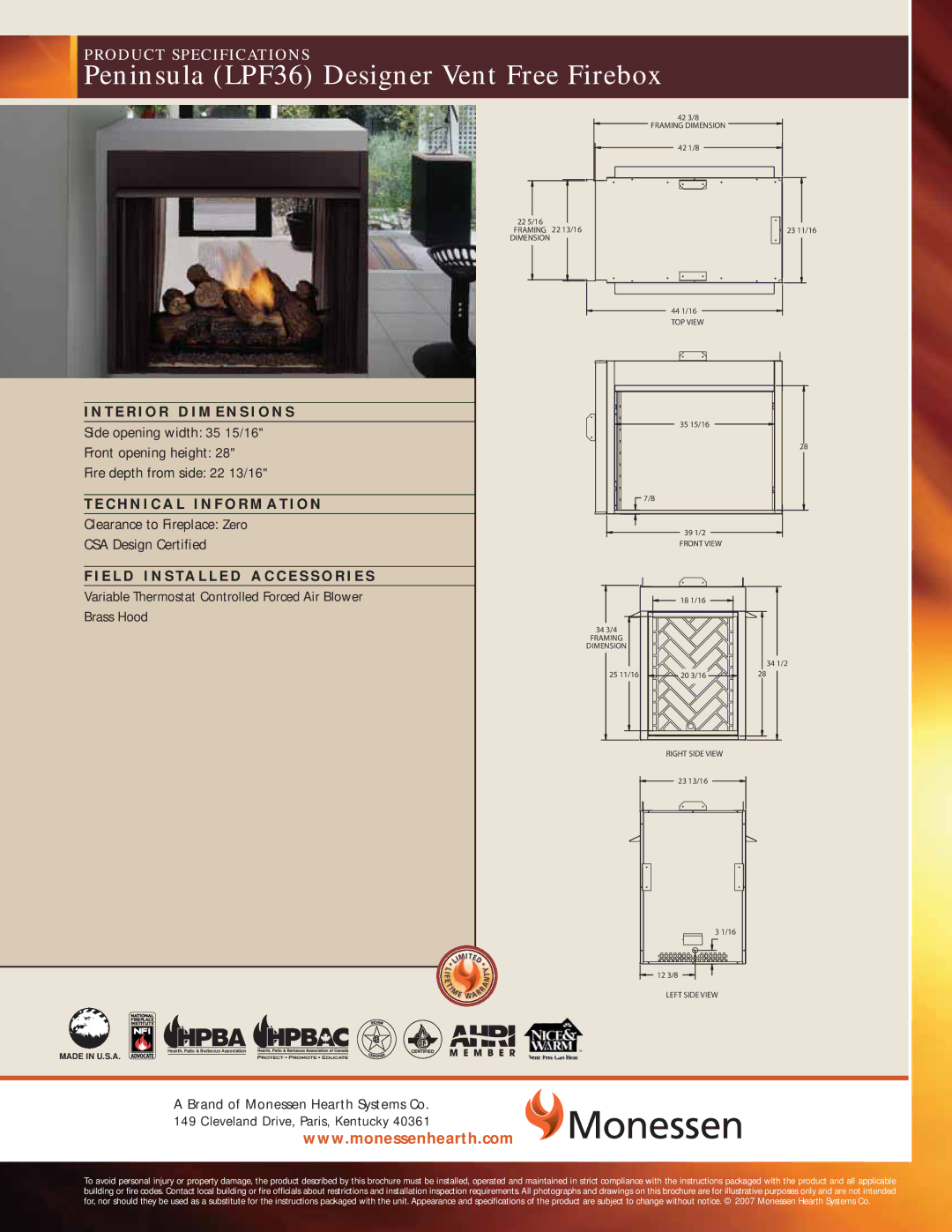

PRODUCT SPECIFICATIONS
Peninsula (LPF36) Designer Vent Free Firebox
I N T E R I O R D I M E N S I O N S
Side opening width: 35 15/16"
Front opening height: 28"
Fire depth from side: 22 13/16"
T E C H N I C A L I N F O R M AT I O N
Clearance to Fireplace: Zero
CSA Design Certified
F I E L D I N S TA L L E D A C C E S S O R I E S
Variable Thermostat Controlled Forced Air Blower Brass Hood
42 3/8
FRAMING DIMENSION
42 1/8
22 5/16 |
|
FRAMING 22 13/16 | 23 11/16 |
DIMENSION |
|
44 1/16
TOP VIEW
35 15/16 |
28 |
7/8 |
39 1/2 |
FRONT VIEW |
| 18 1/16 |
|
34 3/4 |
|
|
FRAMING |
|
|
DIMENSION |
|
|
|
| 34 1/2 |
25 11/16 | 20 3/16 | 28 |
| RIGHT SIDE VIEW |
|
| 23 13/16 |
|
3 1/16 |
12 3/8 |
LEFT SIDE VIEW
Hearth,HPBAPatio & Barbecue Association |
www.monessenhearth.com
To avoid personal injury or property damage, the product described by this brochure must be installed, operated and maintained in strict compliance with the instructions packaged with the product and all applicable building or fire codes. Contact local building or fire officials about restrictions and installation inspection requirements. All photographs and drawings on this brochure are for illustrative purposes only and are not intended for, nor should they be used as a substitute for the instructions packaged with the unit. Appearance and specifications of the product are subject to change without notice. © 2007 Monessen Hearth Systems Co.
