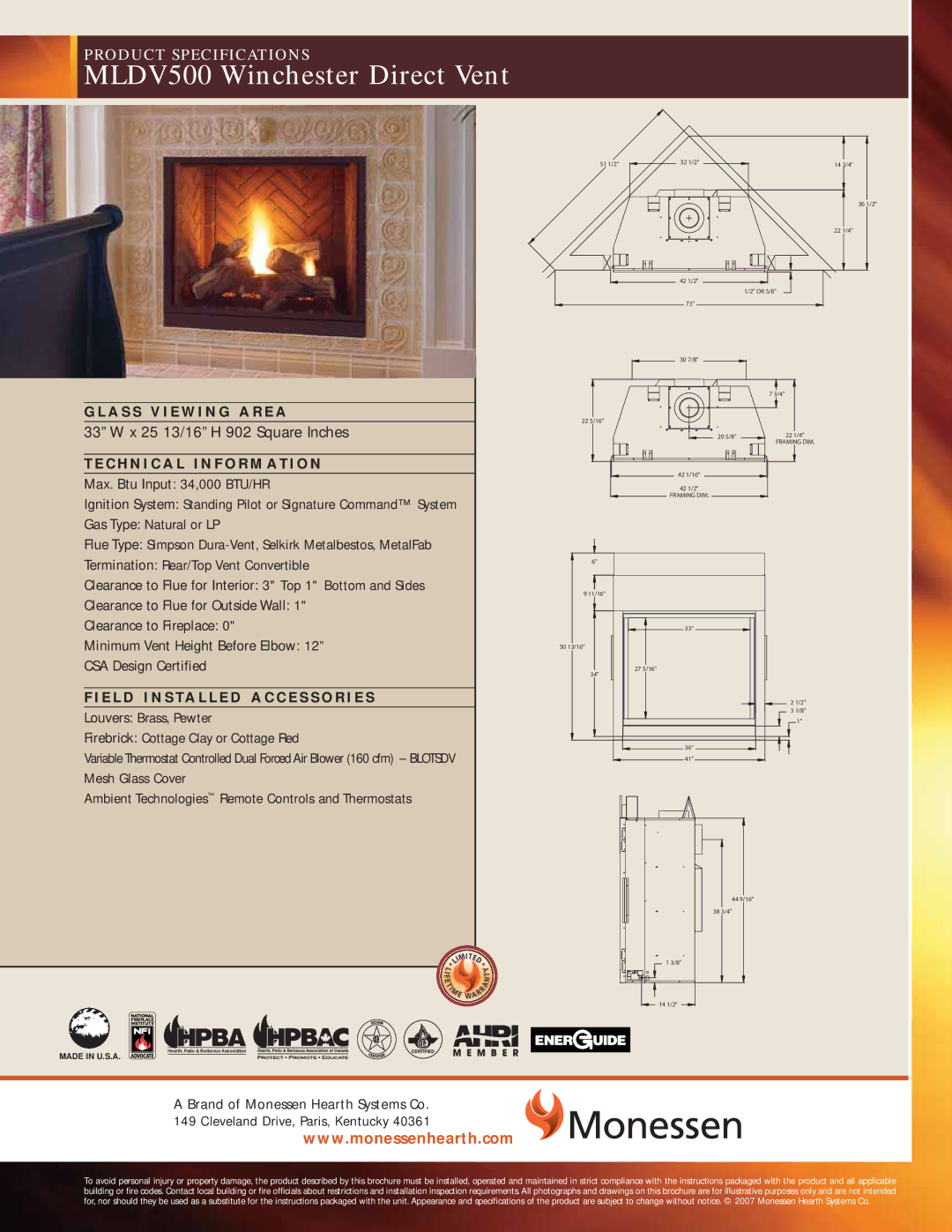

PRODUCT SPECIFICATIONS

MLDV500 Winchester Direct Vent

G L A S S V I E W I N G A R E A

33”W x 25 13/16”H 902 Square Inches

T E C H N I C A L I N F O R M AT I O N

Max. Btu Input: 34,000 BTU/HR

Ignition System: Standing Pilot or Signature Command™ System

Gas Type: Natural or LP

Flue Type: Simpson Dura-Vent, Selkirk Metalbestos, MetalFab

Termination: Rear/Top Vent Convertible

Clearance to Flue for Interior: 3" Top 1" Bottom and Sides

Clearance to Flue for Outside Wall: 1"

Clearance to Fireplace: 0"

Minimum Vent Height Before Elbow: 12” CSA Design Certified

F I E L D I N S TA L L E D A C C E S S O R I E S

Louvers: Brass, Pewter

Firebrick: Cottage Clay or Cottage Red

Variable Thermostat Controlled Dual Forced Air Blower (160 cfm) – BLOTSDV Mesh Glass Cover

Ambient Technologies™ Remote Controls and Thermostats

Hearth,HPBAPatio & Barbecue Association

MADE IN U.S.A.

51 1/2"

32 1/2"

14 3/4"





36 1/2"





22 1/4"



42 1/2"







1/2" OR 5/8"



73"





30 7/8"







7 3/4"

22 5/16"







20 5/8"

22 1/4"





FRAMING DIM.



42 1/16"





42 1/2"





FRAMING DIM.



6"

9 11/16"

33"

50 13/16"

27 5/16"

34"

2 1/2"

3 1/8"

1"

36"

41"

44 9/16"

38 3/4"

1 3/8"

14 1/2"

A Brand of Monessen Hearth Systems Co. 149 Cleveland Drive, Paris, Kentucky 40361

www.monessenhearth.com

To avoid personal injury or property damage, the product described by this brochure must be installed, operated and maintained in strict compliance with the instructions packaged with the product and all applicable building or fire codes. Contact local building or fire officials about restrictions and installation inspection requirements. All photographs and drawings on this brochure are for illustrative purposes only and are not intended for, nor should they be used as a substitute for the instructions packaged with the unit. Appearance and specifications of the product are subject to change without notice. © 2007 Monessen Hearth Systems Co.

Page 1 Page 1
Page 1
Image 1
Monessen Hearth specifications MLDV500 Winchester Direct Vent, Made in U.S.A
Page 1 Page 1

MLDV500 specifications

The Monessen Hearth MLDV500 is a distinguished direct vent gas fireplace designed for homeowners seeking both aesthetic appeal and efficient heating. Boasting a contemporary design, this model seamlessly integrates into various living spaces while providing the warmth and ambiance of a traditional fireplace.

One of its standout features is the advanced direct vent technology. This system allows for the safe venting of gases outside the home, eliminating the need for a chimney. This not only enhances safety but also provides the flexibility to install the fireplace in a variety of locations. The MLDV500 can be vented horizontally or vertically, making it adaptable to different architectural settings.

In terms of heating capacity, the MLDV500 delivers an impressive output with up to 26,000 BTUs, ensuring adequate warmth for medium to large rooms. This efficiency is complemented by its adjustable flame, which allows users to customize their heating experience. Whether you desire a roaring fire for cozy gatherings or a subdued flame for a calming evening, the MLDV500 caters to your needs.

The fireplace is equipped with innovative technologies that enhance its usability. The electronic ignition system ensures a hassle-free start, while the intuitive remote control allows for easy operation from the comfort of your couch. Additionally, the MLDV500 features a millivolt backup system, providing peace of mind in case of power outages.

Aesthetically, the Monessen Hearth MLDV500 does not disappoint. It offers customizable options, including various attractive front designs and a selection of realistic log sets and stones to enhance the look of the firebox. This versatility allows homeowners to create a unique focal point that complements their interior décor.

Moreover, the MLDV500 is designed with efficiency in mind, maintaining a high annual fuel utilization efficiency (AFUE) rating. This means that it not only heats spaces effectively but also minimizes fuel consumption, providing a more eco-friendly heating solution.

In summary, the Monessen Hearth MLDV500 presents a blend of modern design, advanced technology, and energy-efficient performance, making it an excellent choice for those looking to enhance their home with the charm of a gas fireplace. Its versatility, safety features, and ease of use solidify its position as a top contender in the direct vent fireplace market.
