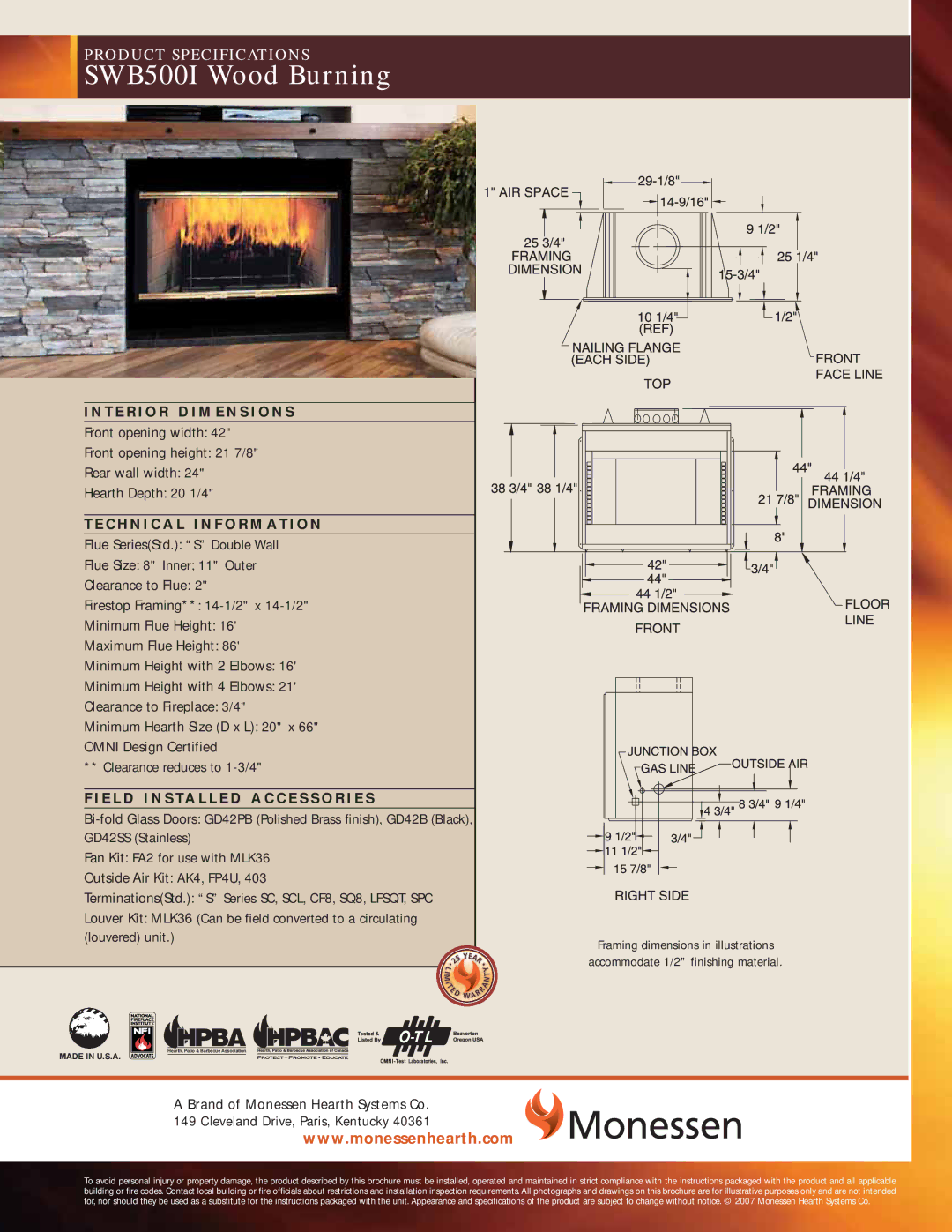

PRODUCT SPECIFICATIONS
SWB500I Wood Burning
I N T E R I O R D I M E N S I O N S
Front opening width: 42"
Front opening height: 21 7/8"
Rear wall width: 24"
Hearth Depth: 20 1/4"
T E C H N I C A L I N F O R M AT I O N
Flue Series(Std.): “S” Double Wall
Flue Size: 8" Inner; 11" Outer
Clearance to Flue: 2"
Firestop Framing**:
Minimum Flue Height: 16'
Maximum Flue Height: 86'
Minimum Height with 2 Elbows: 16'
Minimum Height with 4 Elbows: 21'
Clearance to Fireplace: 3/4"
Minimum Hearth Size (D x L): 20" x 66"
OMNI Design Certified
** Clearance reduces to
F I E L D I N S TA L L E D A C C E S S O R I E S |
|
| |
GD42SS (Stainless) |
|
Fan Kit: FA2 for use with MLK36 |
|
Outside Air Kit: AK4, FP4U, 403 |
|
Terminations(Std.): “S” Series SC, SCL, CF8, SQ8, LFSQT, SPC |
|
Louver Kit: MLK36 (Can be field converted to a circulating |
|
(louvered) unit.) | Framing dimensions in illustrations |
| |
| accommodate 1/2" finishing material. |
Hearth,HPBAPatio & Barbecue Association |
MADE IN U.S.A.
A Brand of Monessen Hearth Systems Co.
149 Cleveland Drive, Paris, Kentucky 40361
www.monessenhearth.com
To avoid personal injury or property damage, the product described by this brochure must be installed, operated and maintained in strict compliance with the instructions packaged with the product and all applicable building or fire codes. Contact local building or fire officials about restrictions and installation inspection requirements. All photographs and drawings on this brochure are for illustrative purposes only and are not intended for, nor should they be used as a substitute for the instructions packaged with the unit. Appearance and specifications of the product are subject to change without notice. © 2007 Monessen Hearth Systems Co.
