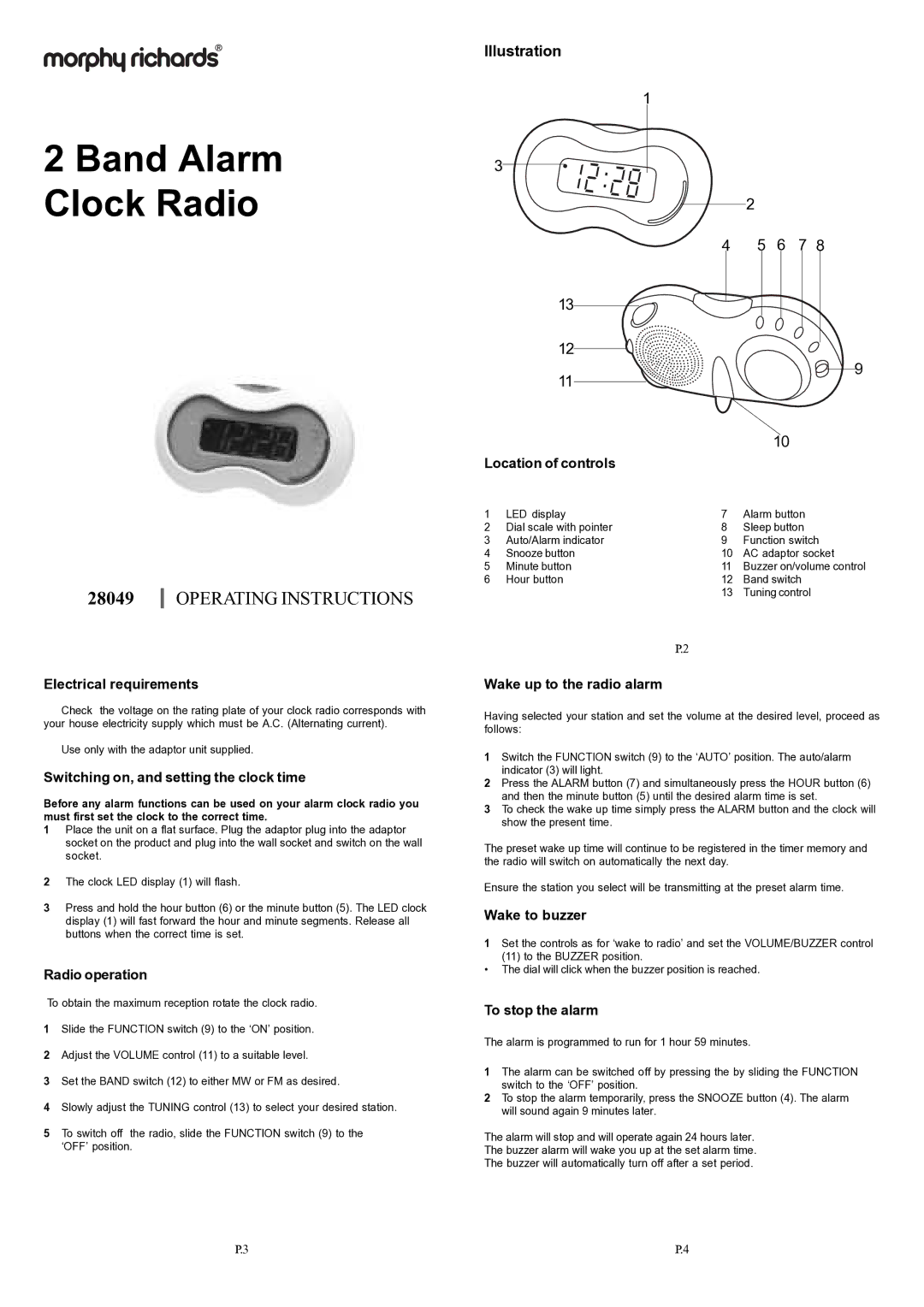

Morphy Richards 28049 operating instructions Electrical requirements, Radio operation

2 Band Alarm

Clock Radio

28049 OPERATING INSTRUCTIONS

Electrical requirements

Check the voltage on the rating plate of your clock radio corresponds with your house electricity supply which must be A.C. (Alternating current).

Use only with the adaptor unit supplied.

Switching on, and setting the clock time

Before any alarm functions can be used on your alarm clock radio you must first set the clock to the correct time.

1Place the unit on a flat surface. Plug the adaptor plug into the adaptor socket on the product and plug into the wall socket and switch on the wall socket.

2The clock LED display (1) will flash.

3Press and hold the hour button (6) or the minute button (5). The LED clock display (1) will fast forward the hour and minute segments. Release all buttons when the correct time is set.

Radio operation

To obtain the maximum reception rotate the clock radio.

1Slide the FUNCTION switch (9) to the ‘ON’ position.

2Adjust the VOLUME control (11) to a suitable level.

3Set the BAND switch (12) to either MW or FM as desired.

4Slowly adjust the TUNING control (13) to select your desired station.

5To switch off the radio, slide the FUNCTION switch (9) to the ‘OFF’ position.

Illustration

		1
3	.
	.
			2
		4	5	6	7	8
	13
	12					9
	11
				10
Location of controls
1	LED display	7	Alarm button
2	Dial scale with pointer	8	Sleep button
3	Auto/Alarm indicator	9	Function switch
4	Snooze button	10	AC adaptor socket
5	Minute button	11	Buzzer on/volume control
6	Hour button	12	Band switch
		13	Tuning control

P.2

Wake up to the radio alarm

Having selected your station and set the volume at the desired level, proceed as follows:

1Switch the FUNCTION switch (9) to the ‘AUTO’ position. The auto/alarm indicator (3) will light.

2Press the ALARM button (7) and simultaneously press the HOUR button (6) and then the minute button (5) until the desired alarm time is set.

3To check the wake up time simply press the ALARM button and the clock will show the present time.

The preset wake up time will continue to be registered in the timer memory and the radio will switch on automatically the next day.

Ensure the station you select will be transmitting at the preset alarm time.

Wake to buzzer

1Set the controls as for ‘wake to radio’ and set the VOLUME/BUZZER control

(11)to the BUZZER position.

•The dial will click when the buzzer position is reached.

To stop the alarm

The alarm is programmed to run for 1 hour 59 minutes.

1The alarm can be switched off by pressing the by sliding the FUNCTION switch to the ‘OFF’ position.

2To stop the alarm temporarily, press the SNOOZE button (4). The alarm will sound again 9 minutes later.

The alarm will stop and will operate again 24 hours later.

The buzzer alarm will wake you up at the set alarm time.

The buzzer will automatically turn off after a set period.

P.3 P.4
