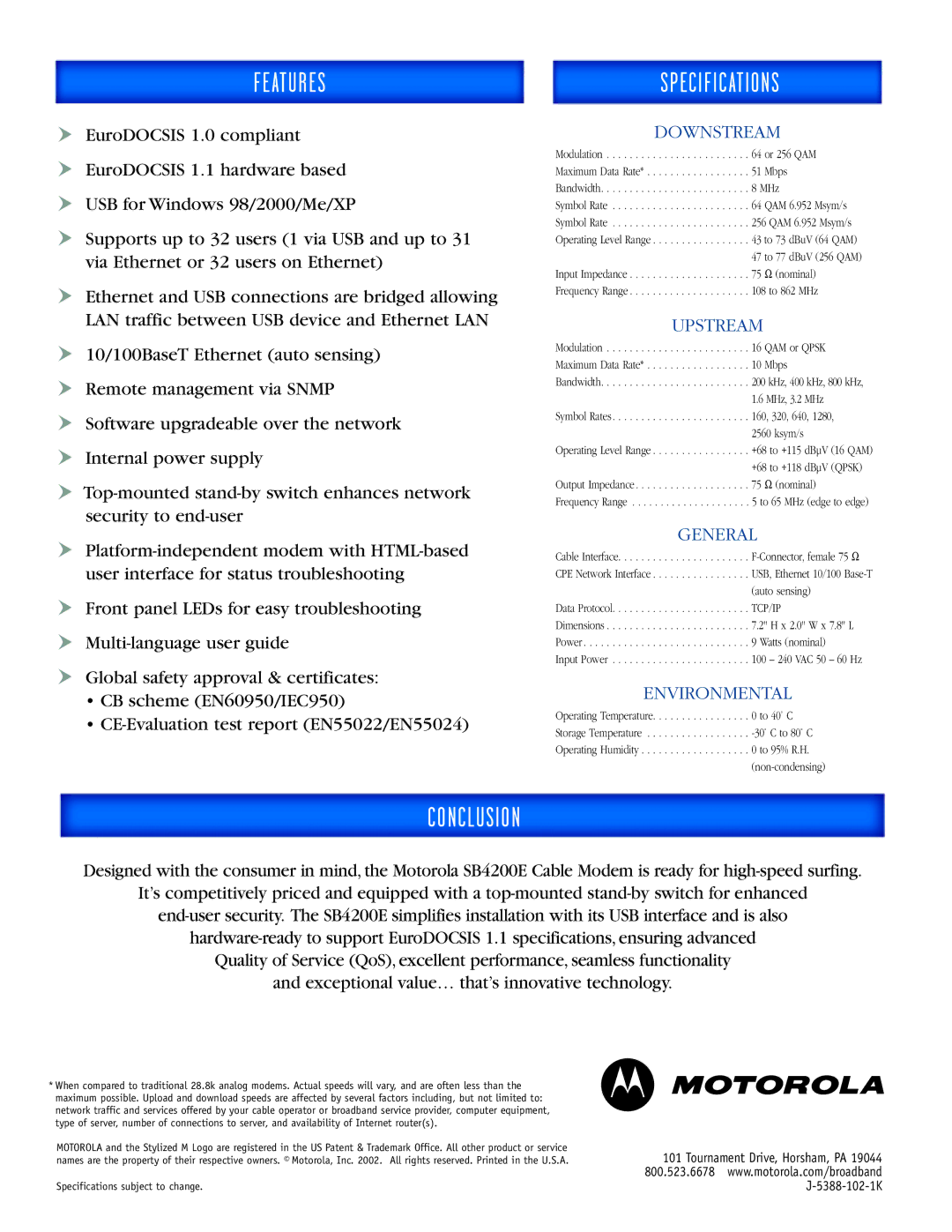

F E AT U R E S

EuroDOCSIS 1.0 compliant

EuroDOCSIS 1.1 hardware based

USB for Windows 98/2000/Me/XP

Supports up to 32 users (1 via USB and up to 31 via Ethernet or 32 users on Ethernet)

Ethernet and USB connections are bridged allowing LAN traffic between USB device and Ethernet LAN

10/100BaseT Ethernet (auto sensing)

Remote management via SNMP

Software upgradeable over the network

Internal power supply

Top-mounted stand-by switch enhances network security to end-user

Platform-independent modem with HTML-based user interface for status troubleshooting

Front panel LEDs for easy troubleshooting

Multi-language user guide

Global safety approval & certificates:

CB scheme (EN60950/IEC950)

CE-Evaluation test report (EN55022/EN55024)

S P EC I F I C AT I O N S

DOWNSTREAM

Modulation . . . . . . . . . . . . . . . . . . . . . . . . . 64 or 256 QAM Maximum Data Rate* . . . . . . . . . . . . . . . . . . 51 Mbps Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . 8 MHz

Symbol Rate . . . . . . . . . . . . . . . . . . . . . . . . 64 QAM 6.952 Msym/s Symbol Rate . . . . . . . . . . . . . . . . . . . . . . . . 256 QAM 6.952 Msym/s Operating Level Range . . . . . . . . . . . . . . . . . 43 to 73 dBuV (64 QAM)

47 to 77 dBuV (256 QAM)

Input Impedance . . . . . . . . . . . . . . . . . . . . . 75 (nominal) Frequency Range . . . . . . . . . . . . . . . . . . . . . 108 to 862 MHz

UPSTREAM

Modulation

16

QAM or QPSK

Maximum Data Rate*

10

Mbps

Bandwidth

200 kHz, 400 kHz, 800 kHz,

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.6 MHz, 3.2 MHz

Symbol Rates

160, 320, 640, 1280,

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2560 ksym/s

Operating Level Range

+68 to +115 dBµV (16 QAM)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

+68 to +118 dBµV (QPSK)

Output Impedance

75

(nominal)

Frequency Range

5 to 65 MHz (edge to edge)

GENERAL

Cable Interface. . . . . . . . . . . . . . . . . . . . . . . F-Connector, female 75 CPE Network Interface . . . . . . . . . . . . . . . . . USB, Ethernet 10/100 Base-T

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (auto sensing) Data Protocol. . . . . . . . . . . . . . . . . . . . . . . . TCP/IP

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 7.2'' H x 2.0'' W x 7.8'' L Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Watts (nominal)

Input Power . . . . . . . . . . . . . . . . . . . . . . . . 100 – 240 VAC 50 – 60 Hz

ENVIRONMENTAL

Operating Temperature. . . . . . . . . . . . . . . . . 0 to 40˚ C Storage Temperature . . . . . . . . . . . . . . . . . . -30˚ C to 80˚ C Operating Humidity . . . . . . . . . . . . . . . . . . . 0 to 95% R.H.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (non-condensing)

C O N C L U S I O N

Designed with the consumer in mind, the Motorola SB4200E Cable Modem is ready for high-speed surfing.

It’s competitively priced and equipped with a top-mounted stand-by switch for enhanced

end-user security. The SB4200E simplifies installation with its USB interface and is also

hardware-ready to support EuroDOCSIS 1.1 specifications, ensuring advanced

Quality of Service (QoS), excellent performance, seamless functionality

and exceptional value… that’s innovative technology.

*When compared to traditional 28.8k analog modems. Actual speeds will vary, and are often less than the maximum possible. Upload and download speeds are affected by several factors including, but not limited to: network traffic and services offered by your cable operator or broadband service provider, computer equipment, type of server, number of connections to server, and availability of Internet router(s).

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2002. All rights reserved. Printed in the U.S.A.

Specifications subject to change.

101 Tournament Drive, Horsham, PA 19044 800.523.6678 www.motorola.com/broadband J-5388-102-1K

Page 2
