The Generator Controls Division of

M020301 Issue 5, revised 07/98 Catalogue section 75

S10 series

AUTOMATIC BATTERY CHARGERS

RATINGS TO 10 AMPS

The S10 is a constant potential, open-chassis battery charger, suitable for use with either 12V DC or 24V DC, lead acid or Ni-Cd systems. Although primarily designed for the diesel generator market, the charger may be configured for use in a wide range of unattended industrial applications where standby power is required at all times.

Each unit consists of a transformer, rectifier and control circuitry. The charger monitors the battery voltage and delivers as much current as the cells require up to the current limited maximum, giving a rapid recovery of charge. Once the battery is fully charged, the charger provides a low trickle charge to maintain the cells for an indefinite period at a pre-set float voltage, without overcharging, plus any additional current required to support a static load.

Also included is a range of on-board fault monitors complete with volt free relay contacts for remote alarm signalling.

Standard Features

Boost function, operated by remote link. Indication by amber LED.

Adjustable float and boost voltage levels to meet with a range of battery types, static loads and operating conditions. Standard calibrations are:-

BATTERY TYPE

FLOAT

BOOST





VOLTAGE

VOLTAGE





(V DC)

(VDC)











Lead acid (6 cells)

13.6

14.1

12 V

Ni-Cd (9 cells)

12.8

14.0



Ni-Cd (10 cells)

14.2

15.6



Lead acid (12 cells)

27.2

28.4

24 V

Ni-Cd (18 cells)

25.6

28.1



Ni-Cd (20 cells)

28.4

31.2

Adjustable current limit. Standard versions have a

10 Amp limit, but this may be adjusted downwards where required (e.g. for lower capacity batteries).

Output short circuit protection.

Protection against reverse polarity battery connection via fuse and red warning LED.

3 alarm monitoring circuits: 'charge fail', 'low battery voltage' and 'high battery voltage', complete with volt-free relay outputs and LED indicators. The low battery voltage alarm features a fixed time delay of approx. 60 secs. to inhibit the signalling of a fault during normal battery loading (e.g. engine cranking).

Electrical connection of the battery, boost and charge monitoring relays is via ¼" blade terminals. The AC supply is connected through separately mounted screw terminals.

When ordering, please specify:-

a)Product type (S10 series)

b)Nominal output voltage (12 or 24 V DC)

c)AC supply voltage (240 or 110 V)

d)Battery type (Lead-acid, or Ni-Cd and number of cells, or special calibration requirements).

Product Specification

Power supply:

operating voltages

240 V AC or 110 V AC (specify),



+/– 10%, 50/60 Hz.

Charging output:



nominal output voltage

see chart left

voltage stability

+/– 1% of nominal

current limit

1 – 10 Amps, factory set

current stability

+/– 2% of nominal

Relay outputs:

(ratings for resistive load)

charge fail and low battery volts

volt free SPNC contacts

high battery volts

volt free SPNO contacts



all rated 5 A @ 30 V DC

General:



operating temperature

–10 to +55 oC

overall dimensions (h x l x d)

185 x 145 x 155 mm

weight

approx. 8.0 Kg

EMC emission/immunity

to EN50081-2/EN50082-2





Connection

















F1, fuse type T, rating:







high

low



S1012, 240V: 1.5A



charge battery battery





fail

volts

volts



110V: 3.15A





















S1024, 240V: 3.15A

















110V: 6.3A



1

2

3

4

5

6





L

7

F1















+

AC

N





BCS





battery

supply



























E





9

10





8













Boost















switch/timer

Dimensions (mm)

Overall



























Fixing Base











































































































































































































































































































































































































































































































































































































































































































































Since 1939

Frank W. Murphy Manufacturer

PO Box 470248, Tulsa, Oklahoma 74147, USA Tel: + 1 918 627 3550 Fax: + 1 918 664 6146 email: sales@fwmurphy.com

web: http://www.fwmurphy.com

Frank W. Murphy Ltd.

Frank W. Murphy Ltd. en France

Frank W. Murphy Southern Division

Murphek Pty. Ltd.

Incorporating Modex Automation

Tel: +33 (1) 30 76 26 26 Fax: +33 (1) 30 76 39 89

PO Box 1819, Rosenberg, Texas 77471, USA

1620 Hume Highway, Campbellfield, Vic. 3061 Australia

Church Road, Laverstock, Salisbury U.K.

Direct usine Tel: + 44 1722 410697

Tel: + 1 281 342 0297 Fax: + 1 281 341 6006

Tel: + 61 3 9358 5555 Fax: + 61 3 9358 5558

Tel: + 44 1722 410055 Fax + 44 1722 410088

email: sales@fwmurphy.co.uk

email: sales@fwmurphy.com

email: murphy@macquarrie.com.au

Pour service en Français, tél: + 44 1722 410697

Frank W. Murphy Pte, Ltd.

Murphy Switch of California





Murphy de Mexico S.A. de C.V.



email: sales@fwmurphy.co.uk

No. 2 Tuas South Street 2, Sprintecs Building

PO Box 900788, Palmdale, California 93590, USA

Blvd. Antonio Rocha Cordero 300, Fracción del Aguaje



web: http://www.fwmurphy.co.uk



02-01/02, Singapore 637895

Tel: + 1 805 272 4700 Fax: + 1 805 947 7570

San Luis Potosí, S.L.P. México 78384





Tel: + 65 863 1398 Fax: + 65 863 0208

email: sales@murphyswitch.com

Tel: + 52 48 206264 Fax: + 52 48 206336





email: fwmsales@fwmurphy.com.sg

web: http://www.murphyswitch.com

email: murmexsl@sanluis.podernet.com.mx



Page 1

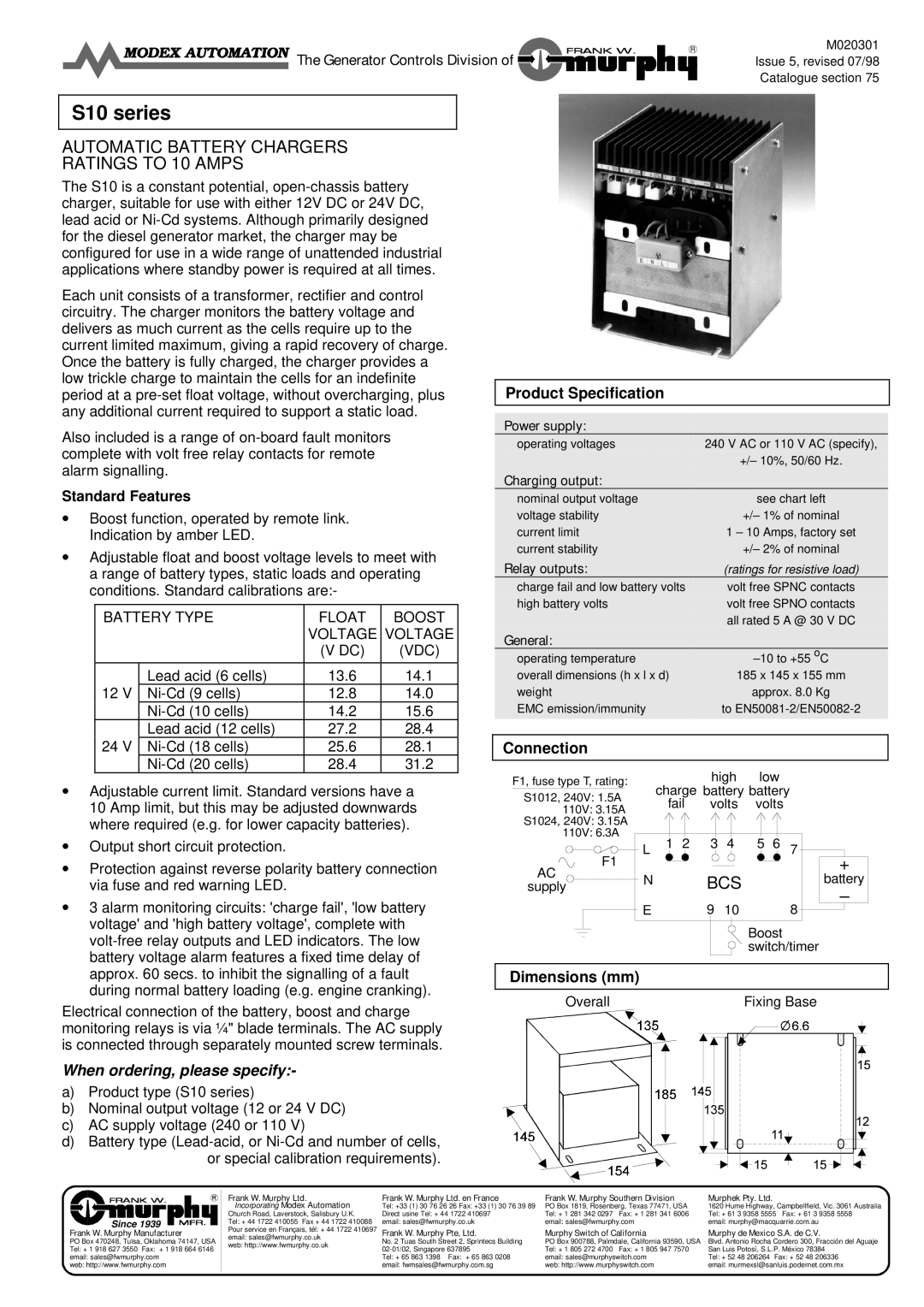

Image 1
