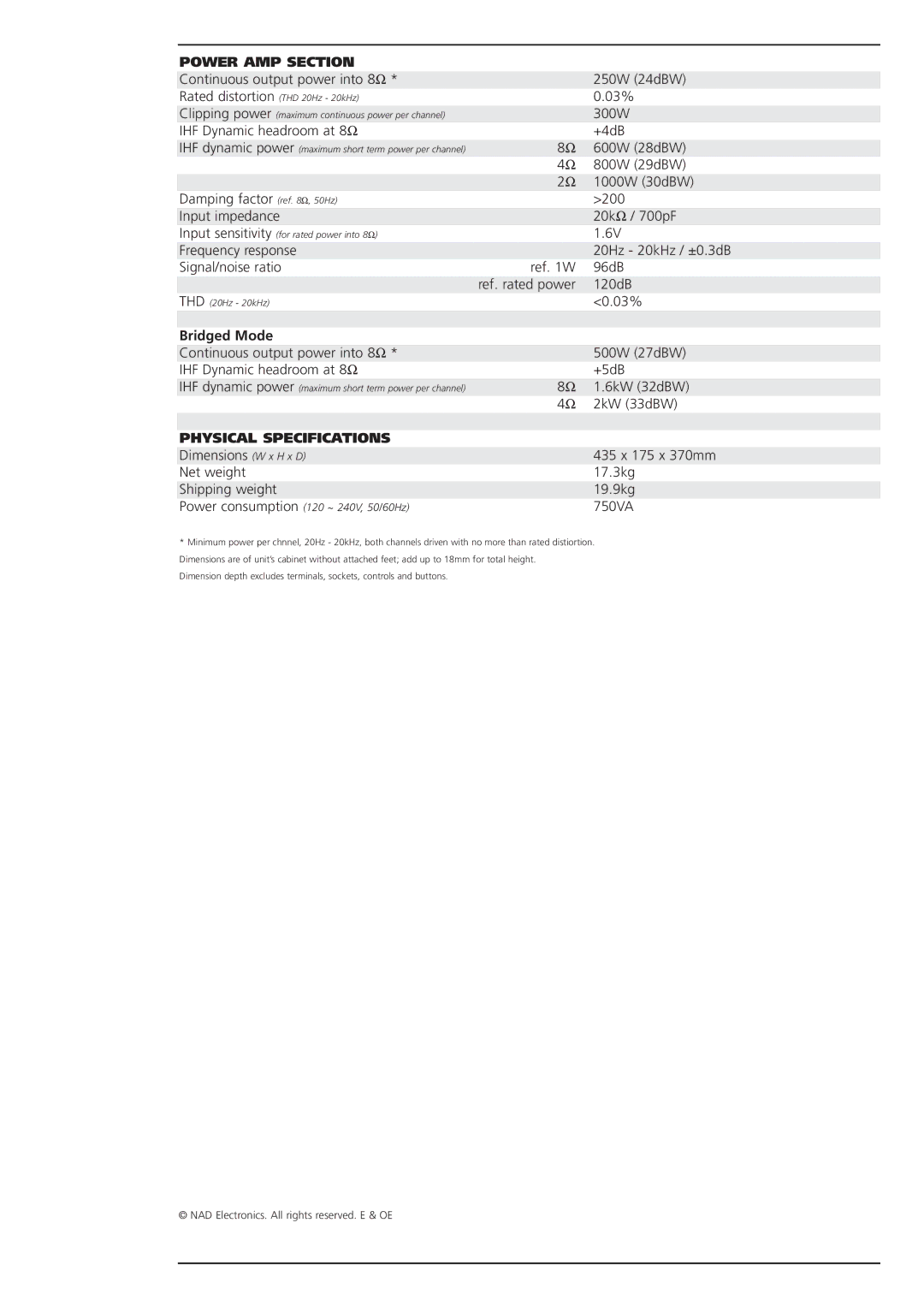

POWER AMP SECTION





Continuous output power into 8Ω *



250W (24dBW)

Rated distortion (THD 20Hz - 20kHz)



0.03%

Clipping power (maximum continuous power per channel)



300W

IHF Dynamic headroom at 8Ω



+4dB

IHF dynamic power (maximum short term power per channel)

600W (28dBW)



800W (29dBW)



1000W (30dBW)

Damping factor (ref. 8Ω , 50Hz)



>200

Input impedance



20kΩ / 700pF

Input sensitivity (for rated power into 8Ω )



1.6V

Frequency response



20Hz - 20kHz / ±0.3dB

Signal/noise ratio

ref. 1W

96dB



ref. rated power

120dB

THD (20Hz - 20kHz)



<0.03%







Bridged Mode





Continuous output power into 8Ω *



500W (27dBW)

IHF Dynamic headroom at 8Ω



+5dB

IHF dynamic power (maximum short term power per channel)

1.6kW (32dBW)



2kW (33dBW)







PHYSICAL SPECIFICATIONS





Dimensions (W x H x D)



435 x 175 x 370mm

Net weight



17.3kg

Shipping weight



19.9kg

Power consumption (120 ~ 240V, 50/60Hz)



750VA

*Minimum power per chnnel, 20Hz - 20kHz, both channels driven with no more than rated distiortion. Dimensions are of unit’s cabinet without attached feet; add up to 18mm for total height.

Dimension depth excludes terminals, sockets, controls and buttons.

© NAD Electronics. All rights reserved. E & OE

Page 2
Image 2

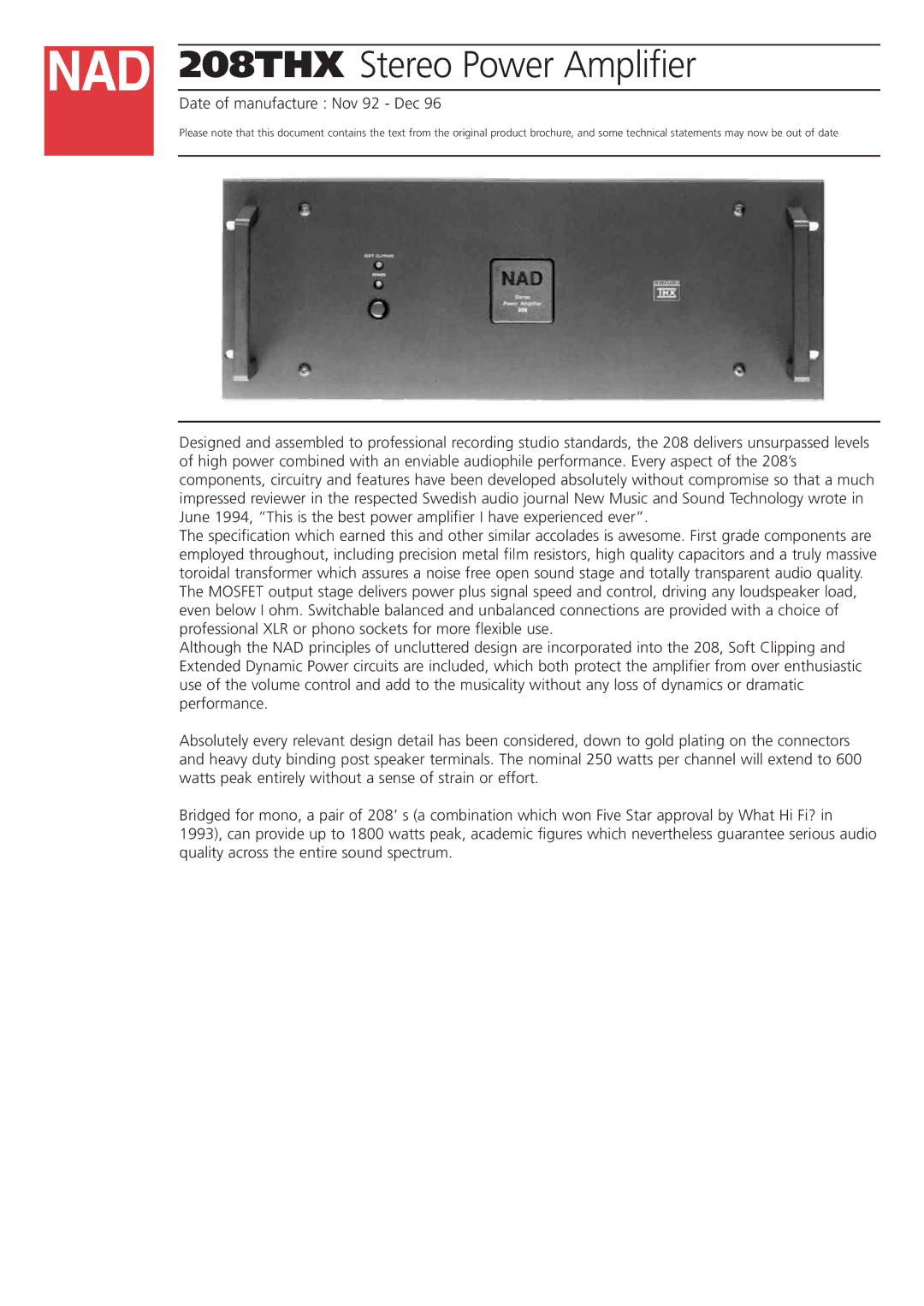

NAD 208THX brochure Power AMP Section, Bridged Mode, Physical Specifications

208THX specifications

The NAD 208THX is a high-performance power amplifier that has gained a reputation among audiophiles for its exceptional sound quality and reliable performance. Designed to meet the rigorous demands of both home theater and high-fidelity audio systems, the NAD 208THX employs advanced technologies and features that contribute to its stellar reputation in the audio community.

One of the standout features of the NAD 208THX is its THX certification. The THX standard ensures that audio equipment meets strict performance criteria, delivering accurate sound reproduction and maintaining audio integrity across a wide range of listening levels. This certification is particularly beneficial for home theater enthusiasts who seek a cinema-like experience at home.

The amplifier’s power output is impressive, offering 100 watts per channel into 8 ohms, with capabilities to deliver even more power when driving lower impedance loads. This ample power reserve allows the NAD 208THX to drive a variety of speakers, making it highly versatile for different audio setups. It can handle the demanding requirements of both large scale home theater systems and smaller Hi-Fi setups without compromising on sound quality.

In terms of connectivity, the NAD 208THX is equipped with a variety of inputs, including balanced XLR and single-ended RCA connections. This flexibility allows users to integrate the amplifier seamlessly into their existing audio systems. Furthermore, the advanced filtering and signal processing technologies employed in the NAD 208THX minimize distortion and interference, ensuring a clean and precise audio signal.

The proprietary Soft Clipping technology is another notable innovation in the NAD 208THX. This feature gently compresses the signal at higher volumes, reducing the potential for harsh distortion and creating a more musical listening experience. This design consideration is crucial for audiophiles who prefer to enjoy their music at elevated levels without the harshness that often accompanies clipping in traditional amplifiers.

Moreover, the build quality of the NAD 208THX is robust, featuring a sturdy chassis that not only enhances durability but also helps to reduce resonance and vibrations that could interfere with sound performance. The amp's design reflects a commitment to engineering excellence, ensuring it performs reliably over time.

In conclusion, the NAD 208THX sets itself apart with its combination of THX certification, ample power output, versatile connectivity options, advanced technologies, and quality construction. Whether used in a dedicated home theater setup or as part of a high-fidelity music system, the NAD 208THX delivers an outstanding audio experience that satisfies even the most discerning listeners.
