Ease of use

Ease of use is another key factor for NAD products and the Model T750 is no exception. The built-in test tone generator - accessible by remote control

-allows for accurate calibrating of the Front, Center and Surround speakers.

Thirty presets can be programmed at random with either AM or FM stations. Three banks of 10 stations means you can organzize the presets to personal perference or program type.

Rather than providing many different surround modes (Church, Jazz, Stadium, etc.) which makes so many other receivers cluttered and over

complicated, the engineers concentrated on perfectng the Dolby Pro Logic decoding and steering. For music the Hall mode can be engaged, adding a natural level of reverberance and life.

In keeping with the NAD tradition, the Model T750 provides performance, simplicity and value which is hard to match. This new addition to the NAD line of products is equally at home in a system for discerning music lovers, as it is in a system for those looking to get the best out of Dolby Surround Laser Discs, Videos and Compact Discs.

PRELIMINARY SPECIFICATIONS - NAD MODEL T750

Power Output: Stereo Mode (8 Ω

Amplifier Section

2 x 50 W (16.9 dBW)

within rated distortion)

IHF dynamic power

8 Ω

2 x 56 W (17.5 dBW)



4Ω

2 x 89 W (19.5 dBW)



2Ω

2 x 140 W (21.5 dBW)



Surround Mode (L, C, R)

3 x 50 W (16.9 dBW)



(LS + RS)

2 x 30 W (14.8 dBW)

Total Harmonic Distortion

at rated power (Front)

0.08%

IM Distortion

at rated power (Front)

0.08%

Sensitivity and Impedance



150 mV / 50 kΩ

Frequency Response

5 to 50,000 Hz

± 0.5 dB

Signal to Noise Ratio

Line Ref 70 W / 8 Ω

106 dB (IHF A)



Ref 1 W / 8 Ω

81 dB (IHF A)



Tuner Section

1.3∝



Input Sensitivity

Mono

V



Stereo

2.5∝

V

Frequency Response

30Hz - 15kHz:

± 1.5 dB

Total Harmonic Distortion

Mono

0.15%



Stereo

0.25%

Stereo Separation

1 kHz

45 dB

Signal to Noise Ratio

Mono

73 dB



Stereo

67 dB

Physical Specifications

Dimensions (W x H x D)

17.14"x 5.12"x 12.41" / 435 x 130 x 315 mm

Net weight

21.16 lbs / 9.6kg

Shipping weight

23.8 lbs / 10.8kg

Appearance and features are tentative.

Dolby, Dolby Digital and Pro Logic are registered trademarks of the Dolby Laboratories Licensing Corporation

NAD reserves the right to change specifications or design at any time without notice. All specifications are those in effect at time of printing.

Page 1 Page 2
Page 2
Image 2

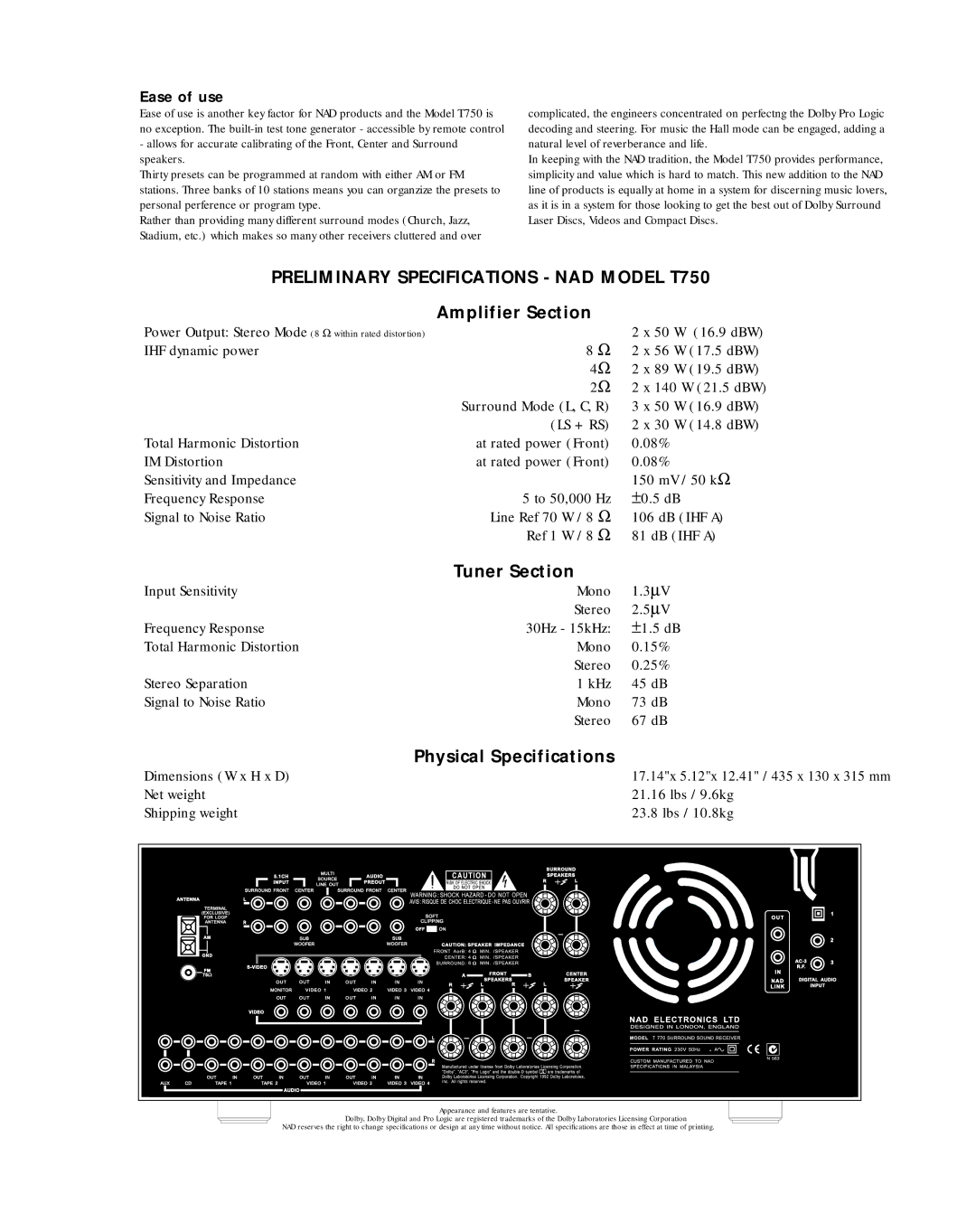

NAD T750 brochure Amplifier Section, Tuner Section, Physical Specifications, Ease of use
Page 1 Page 2

T750 specifications

The NAD T750 is a top-tier AV receiver, renowned for its exceptional performance and cutting-edge technology, making it a popular choice among audiophiles and home theater enthusiasts. This receiver is designed to deliver a panoramic sound experience while providing users with an array of features that enhance multimedia enjoyment.

One of the key features of the NAD T750 is its advanced audio processing capabilities. It supports high-resolution audio formats and incorporates NAD's proprietary technology, ensuring an immersive listening experience. With support for Dolby Atmos and DTS:X, users can enjoy three-dimensional sound that envelops them in their favorite movies and music. The receiver is capable of delivering clear and powerful audio, thanks to its robust amplification system that can drive a variety of speaker configurations.

In terms of connectivity, the NAD T750 offers a comprehensive selection of inputs and outputs. It includes multiple HDMI ports, allowing for easy connection to various devices such as gaming consoles, Blu-ray players, and streaming devices. The HDMI ports support 4K video passthrough, ensuring that users can enjoy stunning visuals in addition to high-quality audio. Additionally, the receiver features wireless connectivity options like Bluetooth and Wi-Fi, enabling seamless streaming from smartphones, tablets, and computers.

NAD has also integrated their unique AdaptiveLD Technology into the T750, which automatically adjusts the audio settings based on the characteristics of the room. This feature optimizes sound quality, ensuring a balanced and harmonious audio output regardless of the environment. The T750 also comes equipped with an intuitive user interface and an easy-to-navigate remote control, allowing users to quickly access and customize settings to suit their preferences.

One of the standout characteristics of the NAD T750 is its build quality. Crafted with high-grade materials, this receiver is not only designed for performance but also durability. The minimalist design aesthetic fits well into any home décor, making it an attractive addition to any entertainment setup.

In summary, the NAD T750 AV receiver combines advanced features, exceptional sound quality, and solid build, making it a top choice for anyone looking to create a premium home theater experience. With its cutting-edge technology and user-friendly interface, the T750 stands out as a sophisticated yet accessible option for consumers seeking an enriching audio-visual experience.
