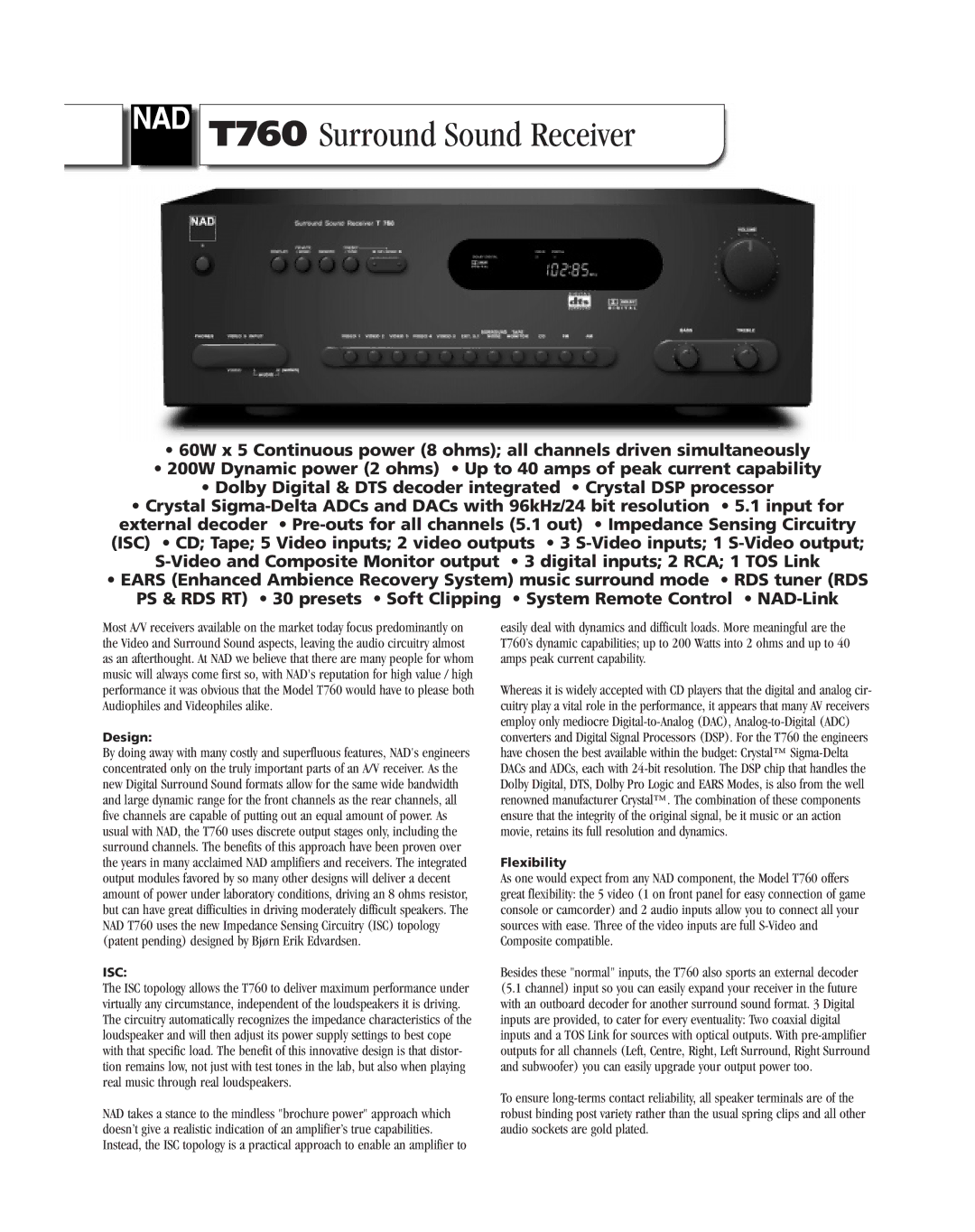

T760 Surround Sound Receiver
•60W x 5 Continuous power (8 ohms); all channels driven simultaneously
•200W Dynamic power (2 ohms) • Up to 40 amps of peak current capability
•Dolby Digital & DTS decoder integrated • Crystal DSP processor
•Crystal
(ISC) • CD; Tape; 5 Video inputs; 2 video outputs • 3
•EARS (Enhanced Ambience Recovery System) music surround mode • RDS tuner (RDS PS & RDS RT) • 30 presets • Soft Clipping • System Remote Control •
Most A/V receivers available on the market today focus predominantly on the Video and Surround Sound aspects, leaving the audio circuitry almost as an afterthought. At NAD we believe that there are many people for whom music will always come first so, with NAD's reputation for high value / high performance it was obvious that the Model T760 would have to please both Audiophiles and Videophiles alike.
Design:
By doing away with many costly and superfluous features, NAD's engineers concentrated only on the truly important parts of an A/V receiver. As the new Digital Surround Sound formats allow for the same wide bandwidth and large dynamic range for the front channels as the rear channels, all five channels are capable of putting out an equal amount of power. As usual with NAD, the T760 uses discrete output stages only, including the surround channels. The benefits of this approach have been proven over the years in many acclaimed NAD amplifiers and receivers. The integrated output modules favored by so many other designs will deliver a decent amount of power under laboratory conditions, driving an 8 ohms resistor, but can have great difficulties in driving moderately difficult speakers. The NAD T760 uses the new Impedance Sensing Circuitry (ISC) topology (patent pending) designed by Bjørn Erik Edvardsen.
ISC:
The ISC topology allows the T760 to deliver maximum performance under virtually any circumstance, independent of the loudspeakers it is driving. The circuitry automatically recognizes the impedance characteristics of the loudspeaker and will then adjust its power supply settings to best cope with that specific load. The benefit of this innovative design is that distor- tion remains low, not just with test tones in the lab, but also when playing real music through real loudspeakers.
NAD takes a stance to the mindless "brochure power" approach which doesn’t give a realistic indication of an amplifier’s true capabilities. Instead, the ISC topology is a practical approach to enable an amplifier to
easily deal with dynamics and difficult loads. More meaningful are the T760’s dynamic capabilities; up to 200 Watts into 2 ohms and up to 40 amps peak current capability.
Whereas it is widely accepted with CD players that the digital and analog cir- cuitry play a vital role in the performance, it appears that many AV receivers employ only mediocre
Flexibility
As one would expect from any NAD component, the Model T760 offers great flexibility: the 5 video (1 on front panel for easy connection of game console or camcorder) and 2 audio inputs allow you to connect all your sources with ease. Three of the video inputs are full
Besides these "normal" inputs, the T760 also sports an external decoder (5.1 channel) input so you can easily expand your receiver in the future with an outboard decoder for another surround sound format. 3 Digital inputs are provided, to cater for every eventuality: Two coaxial digital inputs and a TOS Link for sources with optical outputs. With
To ensure
