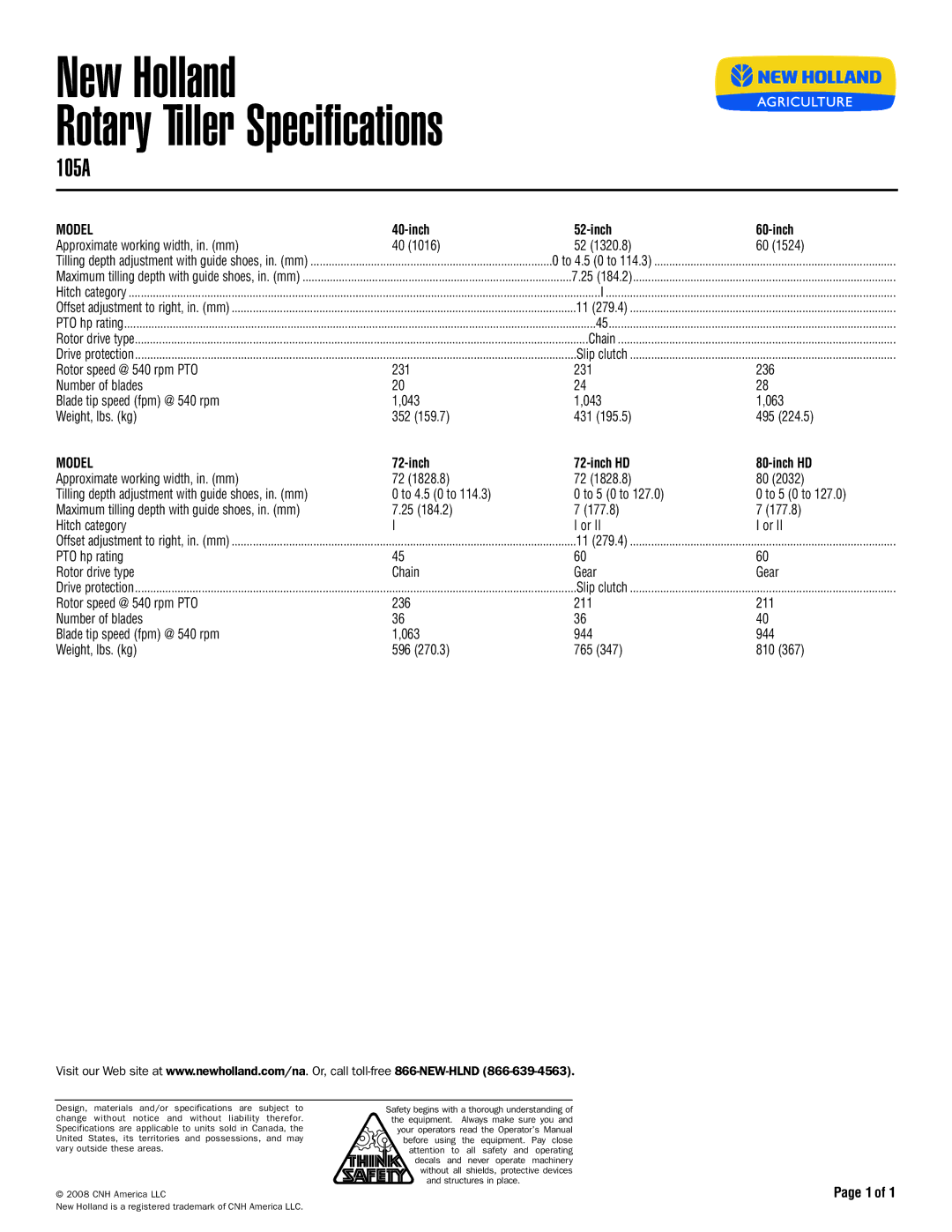

New Holland
Rotary Tiller Specifications
105A
MODEL |
| ||
Approximate working width, in. (mm) | 40 (1016) | 52 (1320.8) | 60 (1524) |
Tilling depth adjustment with guide shoes, in. (mm) | ................................................................................ | 0 to 4.5 (0 to 114.3) | ................................................................................ |
Maximum tilling depth with guide shoes, in. (mm) | 7.25 (184.2) | ||
Hitch category | I | ||
Offset adjustment to right, in. (mm) | 11 (279.4) | ||
PTO hp rating | 45 | ||
Rotor drive type | Chain | ||
Drive protection | Slip clutch | ||
Rotor speed @ 540 rpm PTO | 231 | 231 | 236 |
Number of blades | 20 | 24 | 28 |
Blade tip speed (fpm) @ 540 rpm | 1,043 | 1,043 | 1,063 |
Weight, lbs. (kg) | 352 (159.7) | 431 (195.5) | 495 (224.5) |
MODEL |
|
| |
Approximate working width, in. (mm) | 72 (1828.8) | 72 (1828.8) | 80 (2032) |
Tilling depth adjustment with guide shoes, in. (mm) | 0 to 4.5 (0 to 114.3) | 0 to 5 (0 to 127.0) | 0 to 5 (0 to 127.0) |
Maximum tilling depth with guide shoes, in. (mm) | 7.25 (184.2) | 7 (177.8) | 7 (177.8) |
Hitch category | I | I or II | I or II |
Offset adjustment to right, in. (mm) | 11 (279.4) | ||
PTO hp rating | 45 | 60 | 60 |
Rotor drive type | Chain | Gear | Gear |
Drive protection | Slip clutch | ||
Rotor speed @ 540 rpm PTO | 236 | 211 | 211 |
Number of blades | 36 | 36 | 40 |
Blade tip speed (fpm) @ 540 rpm | 1,063 | 944 | 944 |
Weight, lbs. (kg) | 596 (270.3) | 765 (347) | 810 (367) |
Visit our Web site at www.newholland.com/na. Or, call
Design, materials and/or specifications are subject to change without notic e and withou t liability therefor. Specifications are applicable to units sold in Canada, the United States, its territories and possessions, and may vary outside these areas.
Safety begins with a thorough understanding of the equipment. Always make sure you and your operators read the Operator’s Manual
before using the equipment. Pay close attention to all safety and operating
decals and never operate machinery
without all shields, protective devices and structures in place.
